NIBCO 2059150HPC BenchPressG Carbon Steel 90 Degree Elbow - 3/4 Inch

Product Description

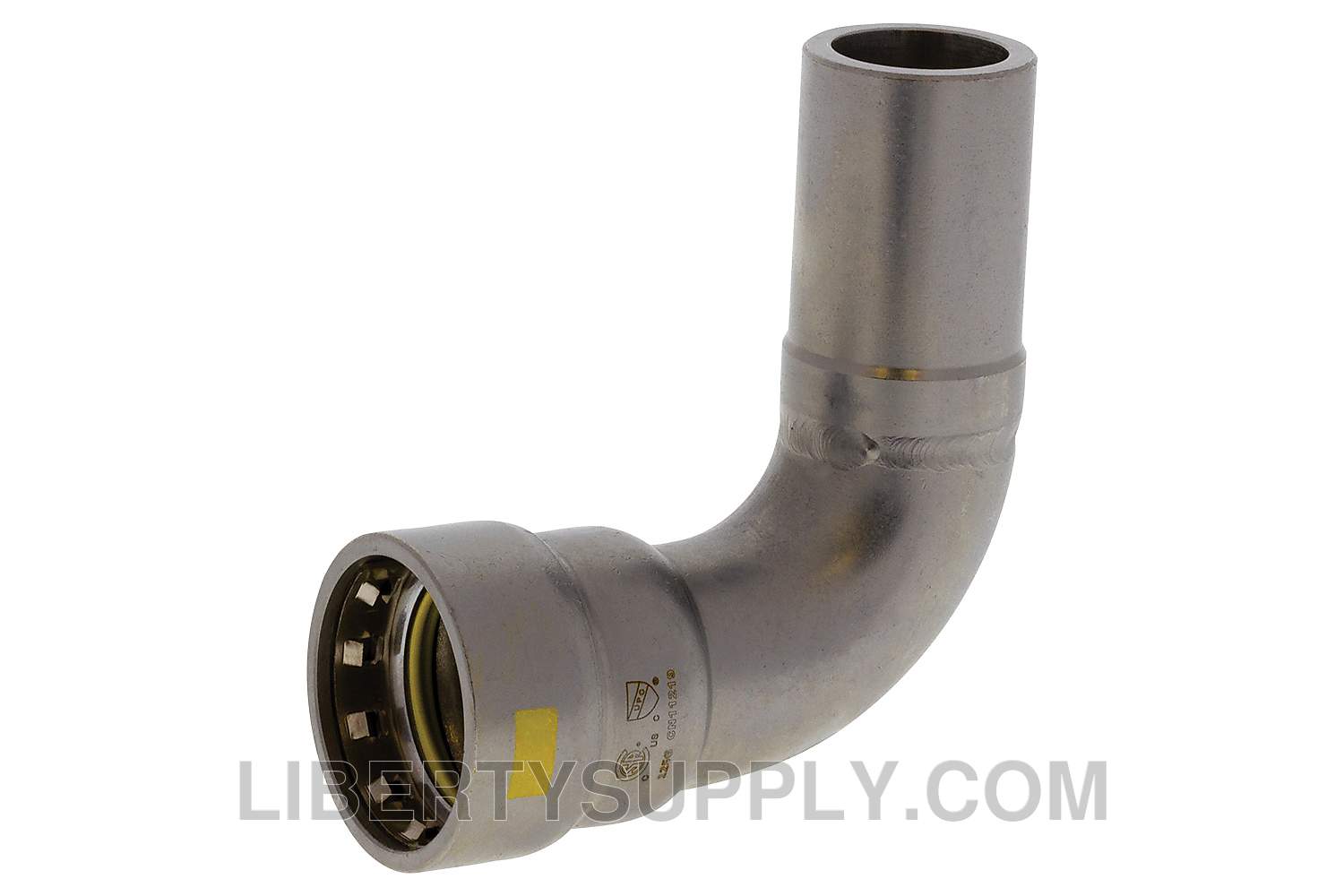

The NIBCO 2059150HPC is a 90-degree elbow fitting made of carbon steel, designed for effective changes in pipeline direction. This elbow fitting features a fitting end and a press connection, allowing for secure and leak-free connections in various systems. A yellow HNBR O-ring and a stainless steel gripper ring are included to increase efficiency. The pressing tool exerts pressure to secure the O-ring onto the pipe, ensuring a tight seal without the need for threading.

• Constructed from durable carbon steel
• Designed for fuel, compressed air, and gas systems
• Simple installation without threading required

Product Highlights

This elbow fitting is ideal for connecting pipes in highly demanding environments and offers a reliable solution for directional changes in piping systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2059150HPC

Technical Specifications

• Item Name: 90 DEG Elbow
• Model: PCH207-2
• Sub Brand: BenchPressG
• Nominal Size: 3/4 IN
• Nominal Pipe Size: 3/4 x 3/4
• Connection Type: Fitting X Press
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 DEG F
• Fitting Bend Angle: 90° (1/4 Bend)
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Length: 3.54
• Width: 3.2
• Height: 1.5
