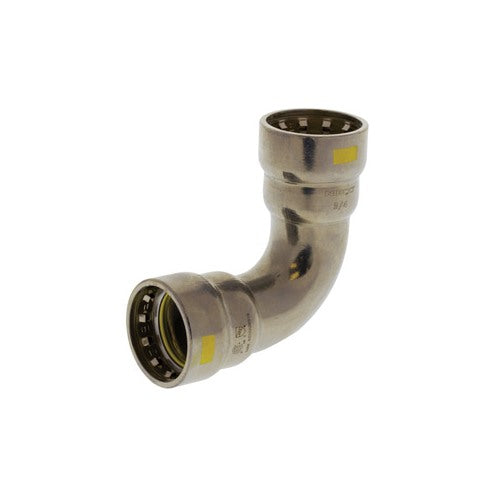

NIBCO 2056150HPC 1-1/2 Inch Carbon Steel Press 90 Degree Elbow

Product Description

The NIBCO 2056150HPC is a 1-1/2 inch 90-degree elbow made from carbon steel and designed specifically for press connection systems. It is suitable for various applications, including heating fuel oil, compressed air, and natural gas. This elbow features a yellow HNBR o-ring and a stainless steel gripper ring to provide a secure seal when pressed into place. The fitting allows for a 90-degree change in pipeline direction.

• Constructed from durable carbon steel.
• Designed with press connections for quick and secure installation.
• Compatible with multiple media, including fuel oil and natural gas.

Product Highlights

This elbow is ideal for various plumbing and piping needs, ensuring reliable performance in demanding conditions.

Product Information

Standard Information

• MPN: 2056150HPC
• UPC: 039923425737

Technical Specifications

• Manufacturer: Nibco
• Series: BenchPressG
• Nominal Size: 1-1/2 IN
• Connection Type: Press
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 DEG F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Other Physical Dimension: 4.20 IN Center To End
