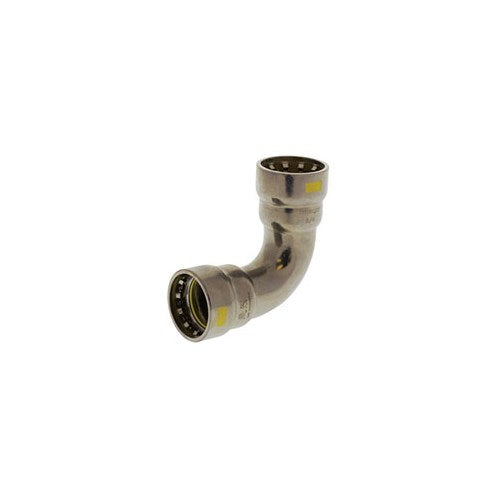

NIBCO 2055455HPC 1/2 Inch Carbon Steel Press 90 Degree Elbow

Product Description

The NIBCO 2055455HPC is a 1/2 inch 90-degree elbow fitting designed from carbon steel. This component is part of the BenchPressG series and features press connections for secure and fast attachment to black iron pipe. It is suitable for various applications, including residential and commercial natural gas, compressed air, and fuel systems.

• Made from durable carbon steel.
• Press connection ensures efficient installation.
• Includes yellow HNBR o-ring and stainless steel gripper for secure sealing.

Product Highlights

This fitting is zinc nickel coated to resist corrosion and handle up to 200 PSI pressure.

Product Information

Standard Information

• Brand: NIBCO
• Series: BenchPressG

Technical Specifications

• MPN: 2055455HPC
• Material: Carbon Steel
• Nominal Pipe Size: 1/2 inch
• Connection Type: Press
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Other Physical Dimension: 2.3 inches Center To End
