NIBCO 2046700EPC BenchPress 45 Degree Elbow 2 in Replacement MPN

Product Description

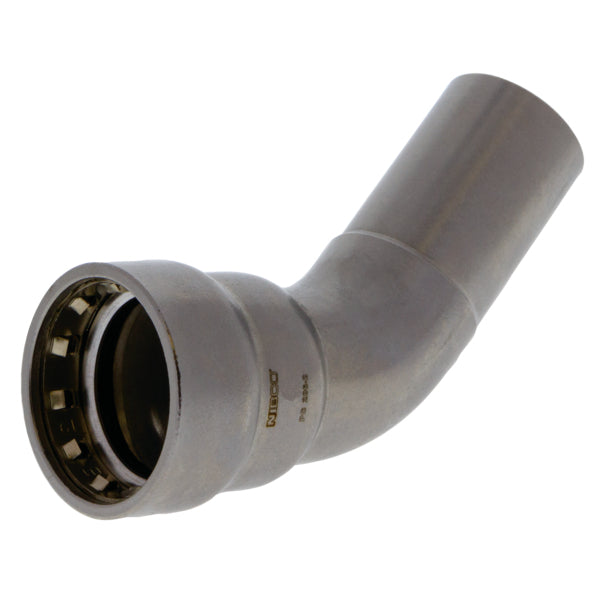

The NIBCO BenchPress 2046700EPC is a 45-degree elbow designed for connecting carbon steel pipes. It features a fitting end and a press connection, allowing for a 45-degree change in pipeline direction. This elbow includes a black EPDM O-ring and a stainless steel gripper ring. When using a pressing tool, pressure secures the O-ring onto the pipe to create a tight seal without the need for threading. This product is applicable in various scenarios, such as fire sprinkler systems, chilled water, and hydronic heating.

• Fitting and press connection types
• Constructed from carbon steel
• Maximum pressure rating of 200 PSI

Product Highlights

This elbow is crucial for efficient fluid flow in HVAC and plumbing systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2046700EPC

Technical Specifications

• Item Name: 45 Degree Elbow
• Model: PC206-2
• Fitting Bend Angle: 45 degrees
• Nominal Size: 2 inches
• Nominal Pipe Size: 2 x 2 inches
• Connection Type: Fitting X Press
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Industry Standards: ASME B31, UL Listed, FM Approved, UPC, UMC, IMC, IRC, IAPMO PS-117 Certified, NFPA 13, 13D and 13R
• Length: 6.73 inches
• Width: 4.85 inches
• Height: 2.91 inches
