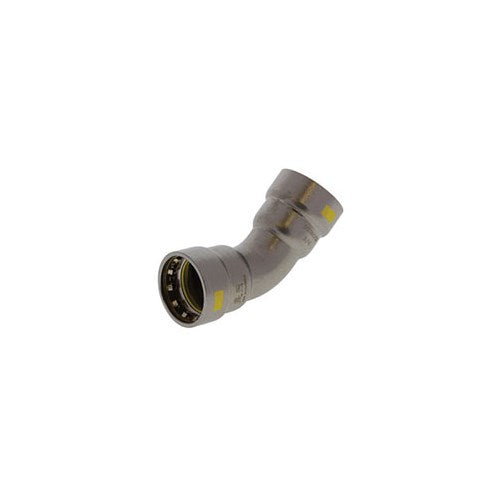

NIBCO 2042800HPC 1/2 Inch Carbon Steel Press 45 Degree Elbow

Product Description

The NIBCO 2042800HPC is a reliable 45-degree elbow fitting crafted from carbon steel. This fitting is designed to connect 1/2-inch pipes and is ideal for altering the direction of pipelines by 45 degrees. It is suitable for a range of applications including compressed air, natural gas, and fuel oil systems.

• Constructed from carbon steel for durability.
• Features press connections for quick and secure joining.
• Includes a yellow HNBR o-ring and a stainless steel gripper ring for a reliable seal.

Product Highlights

Reliable and efficient for changing pipeline direction in various systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2042800HPC

Technical Specifications

• Item Name: 45 Degree Elbow
• Nominal Size: 1/2 inch
• Connection Type: Press
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Industry Standards: ASME B31, CSA ANSI LC4, CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Center To End: 1.73 inches
