NIBCO 2031350HPC BenchPressG Carbon Steel Press x Male Adapter

Product Description

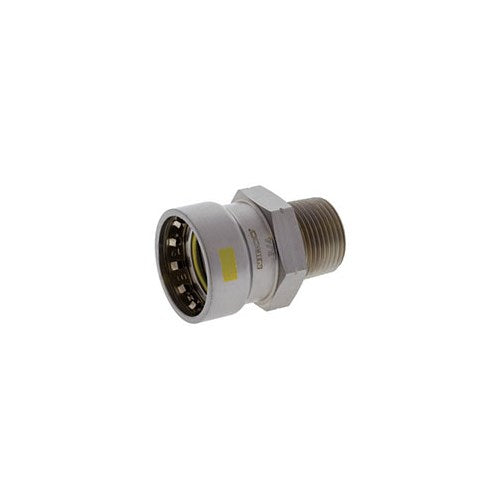

The NIBCO 2031350HPC is a one-inch BenchPressG carbon steel male adapter. This product is equipped with a press connection on one end and a male NPT thread on the other end, allowing you to connect press-fit systems to threaded connections easily. The adapter includes a yellow HNBR O-ring and a stainless steel gripper ring for secure installation. This fitting is suitable for Schedule 10 to 40 carbon steel pipe and can be used in various applications, including residential and commercial natural gas, compressed air, and fuel systems. It is designed for underground installation.

• Press connection with male NPT thread for easy installation.
• Includes yellow HNBR O-ring and stainless steel gripper ring.
• Compatible with Schedule 10 to 40 carbon steel pipe.

Product Highlights

This adapter is ideal for connecting press systems in various gas and compressed air applications.

Product Information

Standard Information

• Manufacturer: NIBCO
• UPC Code: 039923426086

Technical Specifications

• Part Number: 2031350HPC
• Series: BenchPressG
• Model: PCH204
• Type: Adapter
• Type of Fitting: Adapter
• Nominal Pipe Size: 1 inch
• Material: Carbon Steel
• Connection Type: Press x Male
• Operating Pressure: Up to 200 PSI CWP
• Temperature Range: -20°F to 250°F
• Length: 2.52 inches
• Width: 1.83 inches
• Height: 1.78 inches
