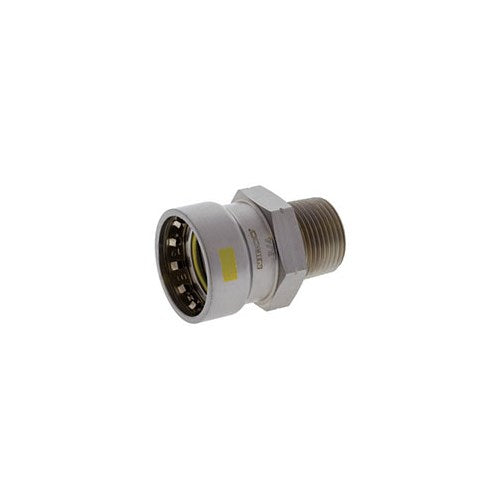

NIBCO 2030600PC 1/2-Inch BenchPress Carbon Steel Press X MNPT Adapter

Product Description

The NIBCO 2030600PC is a 1/2-inch adapter made of carbon steel. It has a press connection on one end and a male NPT thread on the other. This adapter is suitable for connecting carbon steel pipes with pressing tools to create a secure connection. It is ideal for use in fire sprinkler systems, compressed air systems, and hydronic heating systems.

• Features press connection and male NPT thread.
• Constructed from durable carbon steel.
• Compatible with various piping systems.

Product Highlights

This adapter combines a secure press fitting with an NPT thread for versatile use in many applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2030600PC

Technical Specifications

• Series: BenchPress
• Item Name: Adapter
• Model: PC204
• Nominal Size: 1/2 IN
• Connection Type: Press X MNPT
• Material: Carbon Steel
• Length: 2.09 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 DEG F
• Industry Standards: ASME B31, UL Listed, FM Approved, UPC, UMC, IMC, IRC, IAPMO PS-117 Certified, NFPA 13, 13D and 13R
• Fitting Type: Adapter
• Adapter Type: Straight Size
• Width: 1.26 IN
• Height: 1.26 IN
