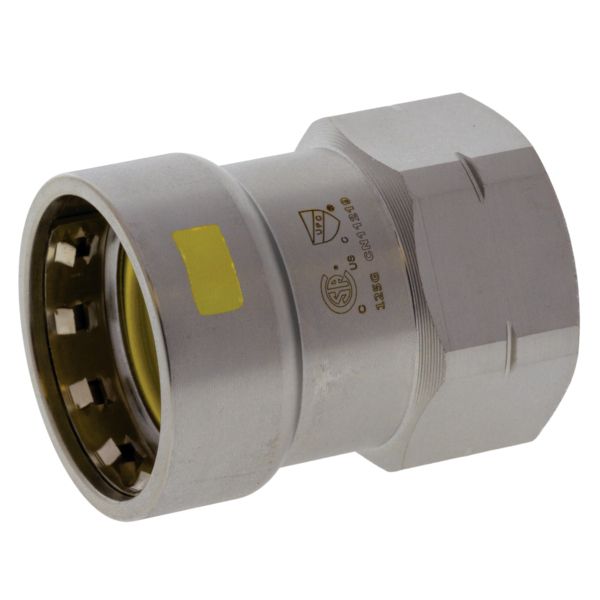

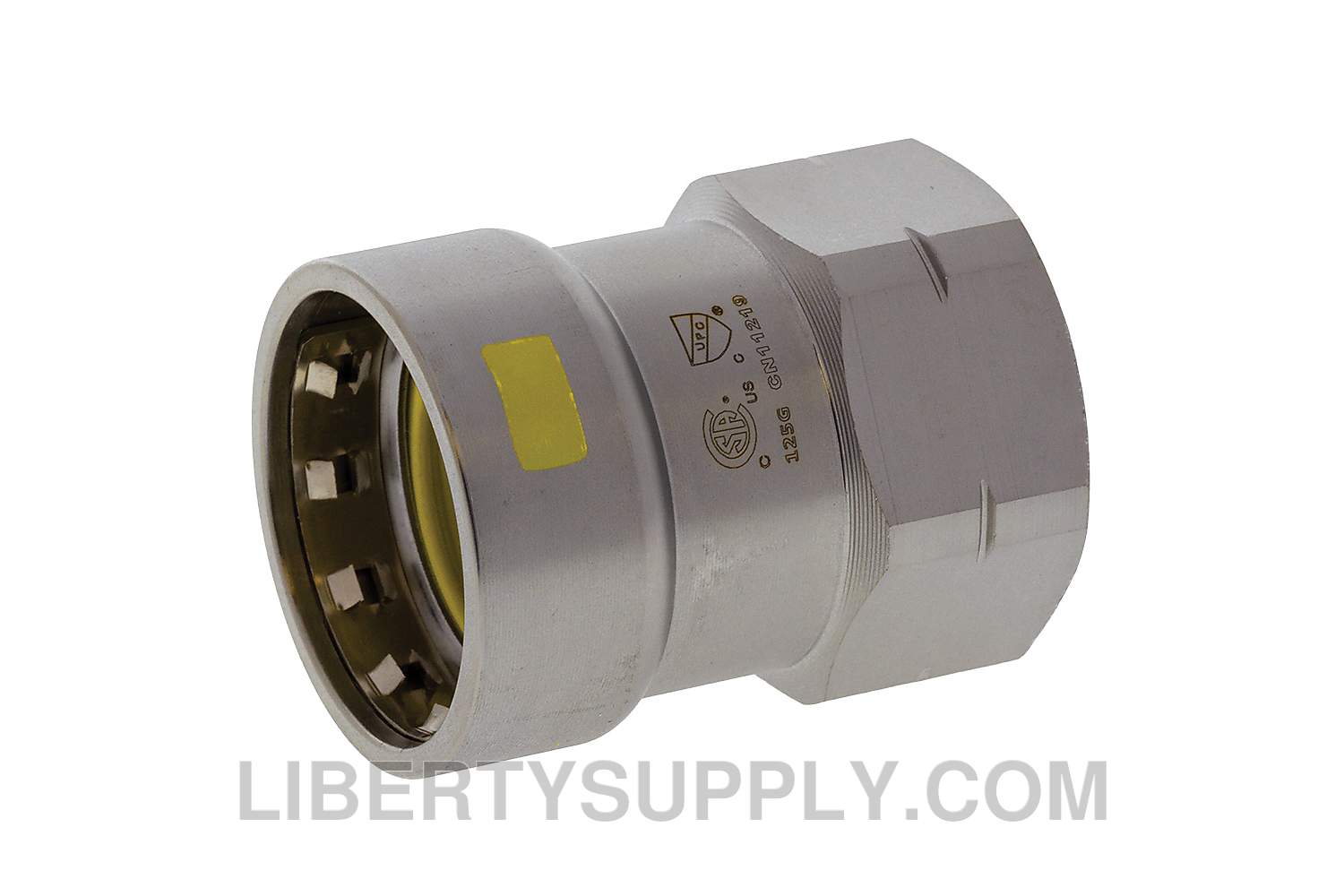

NIBCO 2026150HPC BenchPressG Adapter 2 in Press x Female

Product Description

The NIBCO 2026150HPC BenchPressG adapter is a durable fitting made from carbon steel. It features a yellow HNBR O-ring and a stainless steel gripper ring. This fitting connects press connections to threaded connections efficiently. One end has a press connection while the other end has a female NPT thread. It is suitable for use in carbon steel pipe systems and can be used underground.

• Made from carbon steel with HNBR O-ring
• Connects press connections to threaded connections
• Ideal for use with natural gas and compressed air

Product Highlights

This adapter is perfect for applications involving natural gas, compressed air, and fuel systems. It is built to withstand pressures up to 200 PSI and is designed for reliable performance.

Product Information

Standard Information

• Label: NIBCO
• Part Number: 2026150HPC

Technical Specifications

• Model: PCH203
• Fitting Type: Adapter
• Adapter Type: Threaded; Straight Size
• System Use: Natural Gas, Compressed Air, Diesel Fuel, Liquid Propane
• Application(s): Flammable Fluids/Gas
• Material: Carbon Steel
• Nominal Size: 2 IN
• End Connection Type: Press x Female
• End Connection: Threaded
• Length: 3 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 DEG F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Sub Brand: BenchPressG
