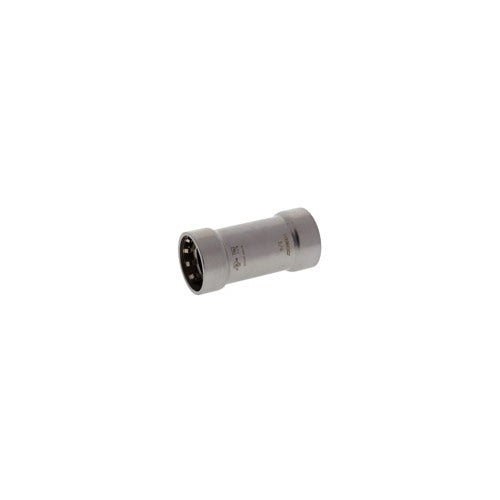

NIBCO 2020400PC PC201 3/4 Press x Press Carbon Steel Repair Coupling

Product Description

The NIBCO 2020400PC is a carbon steel repair coupling designed for efficient press connections. The model PC201 facilitates the joining of two sections of pipe without the need for threading. It features a durable HNBR or EPDM O-ring and a stainless steel gripper ring to ensure a secure seal. Using a pressing tool applies pressure that tightens the O-ring around the pipe, effectively preventing leaks.

• Connection Type: Press
• Nominal Size: 3/4 inch
• Material: Carbon Steel

Product Highlights

This coupling is ideal for quick and reliable pipe repairs in various applications, offering a simple solution for connecting pipes where threading is impractical.

Product Information

Standard Information

• Sub Brand: BenchPress
• Item Name: Repair Coupling Without Stop

Technical Specifications

• Model: PC201
• Nominal Size: 3/4 inch
• Connection Type: Press
• Material: Carbon Steel
• Length: 3.09 inches
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Industry Standards: ASME B31, UL Listed, FM Approved, UPC, UMC, IMC, IRC, IAPMO PS-117 Certified, NFPA 13, 13D and 13R
• Domestic/Import: Import
• Operating Pressure: Up to 200 psi cwp depending on application
• Temperature Range: -20°F to 250°F depending on application
• Third Party Certified: IAPMO PS-117
