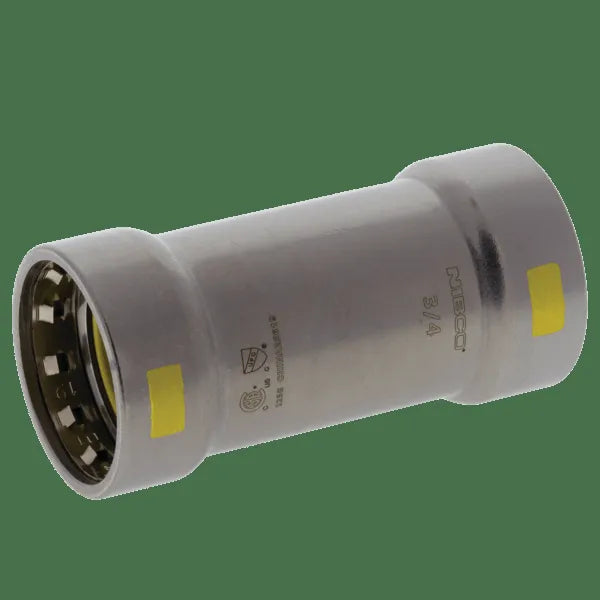

NIBCO 2020400HPC 3/4-Inch BenchPressG Carbon Steel Repair Coupling

Product Description

The NIBCO 2020400HPC is a 3/4-inch BenchPressG repair coupling made from carbon steel. This fitting is designed for press connections and works without a tube stop. It features a stainless steel grip ring and an effective sealing element for a reliable connection. This coupling can be used with Schedule 10 to 40 carbon steel pipe and meets ASTM standards.

• Features press connections on both ends.
• Suitable for gas applications.
• Designed for use with carbon steel pipes.

Product Highlights

Reliable carbon steel repair coupling for efficient pipe connections.

Product Information

Standard Information

• Brand: NIBCO
• Type: Coupling

Technical Specifications

• MPN: 2020400HPC
• Nominal Pipe Size: 3/4 inches
• Connection Type: Press
• Material: Carbon Steel
• Length: 3.09 inches
• Operating Pressure: Up to 200 PSI CWP
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified
