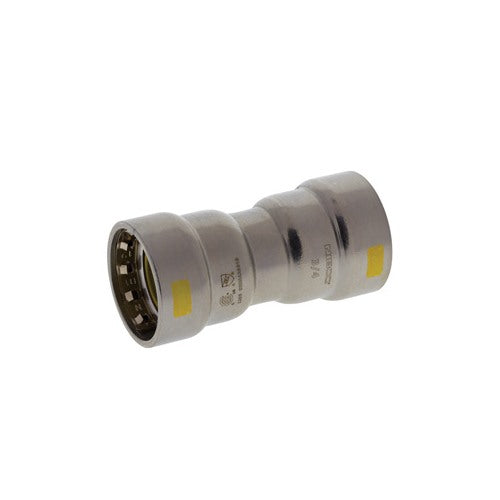

NIBCO 2001700HPC BenchPressG Carbon Steel Coupling - 1-1/4 Press Connection

Product Description

The NIBCO BenchPressG coupling, MPN 2001700HPC, is a carbon steel fitting designed for connecting two lengths of Schedule 10 to 40 carbon steel pipe. This coupling features a press connection method that secures the joint effectively.

• Constructed from durable carbon steel.
• Pressure rating of up to 200 PSI.
• Coated with zinc nickel to prevent corrosion.

Product Highlights

The coupling includes a yellow HNBR o-ring and a stainless steel gripper ring. When pressure is applied through a pressing tool, the o-ring compresses against the pipe, ensuring a leak-tight seal.

Product Information

Standard Information

• Brand: NIBCO
• Sub Brand: BenchPressG

Technical Specifications

• Item Name: Coupling
• Series/Model: Model PCH200
• Nominal Size: 1-1/4 inches
• Connection Type: Press
• Material: Carbon Steel
• Length: 4.46 inches
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Domestic/Import: Import
• Operating Pressure: Up to 200 PSI CWP
• Width: 2.2 inches
• Height: 2.2 inches
• UPC: 039923426246
