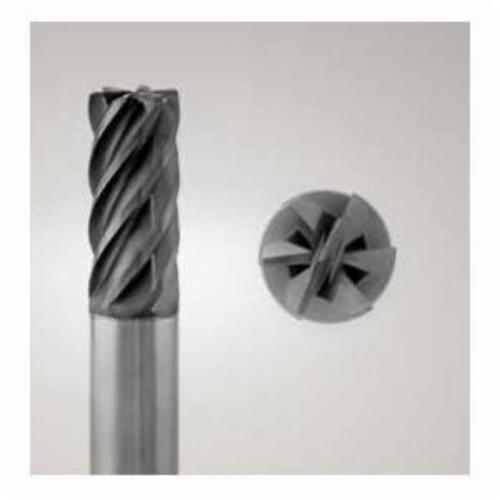

Niagara Cutter NIAGA-N00458 Center Cutting High Performance Multi-Flute Single End Stub Length End Mill

Product Description

The Niagara Cutter NIAGA-N00458 is a high-performance multi-flute single end stub length end mill. This cutter features a diameter of half an inch and a corner radius of zero point zero fifteen inches. It is designed for peripheral roughing and finishing, making it suitable for a variety of applications.

• High performance with minimal deflection
• Advanced chip splitter design for enhanced chip control
• Suitable for depths of cut up to three times the tool diameter

Product Highlights

This end mill offers optimized roughing capabilities, reducing cycle times and increasing throughput. The AlTiN coating enhances tool life and performance.

Product Information

Standard Information

• Brand: Niagara Cutter
• Type: Multi-Flute End Mill

Technical Specifications

• ANSI Code: S638R-0.500-D1-R015.0-Z6
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 38 degrees
• ISO Code: S638R.500D1R015.0Z6
• Material: Solid Carbide
• Series: Elite S638R
• Shank Type: Cylindrical
• Cutter Diameter: 1/2 inch
• Corner Radius: 0.015 inch
• Length of Cut: 1-1/4 inch
• Number of Flutes: 6
• Shank Diameter: 1/2 inch
• Overall Length: 3 inches
• Finish: AlTiN Coated
