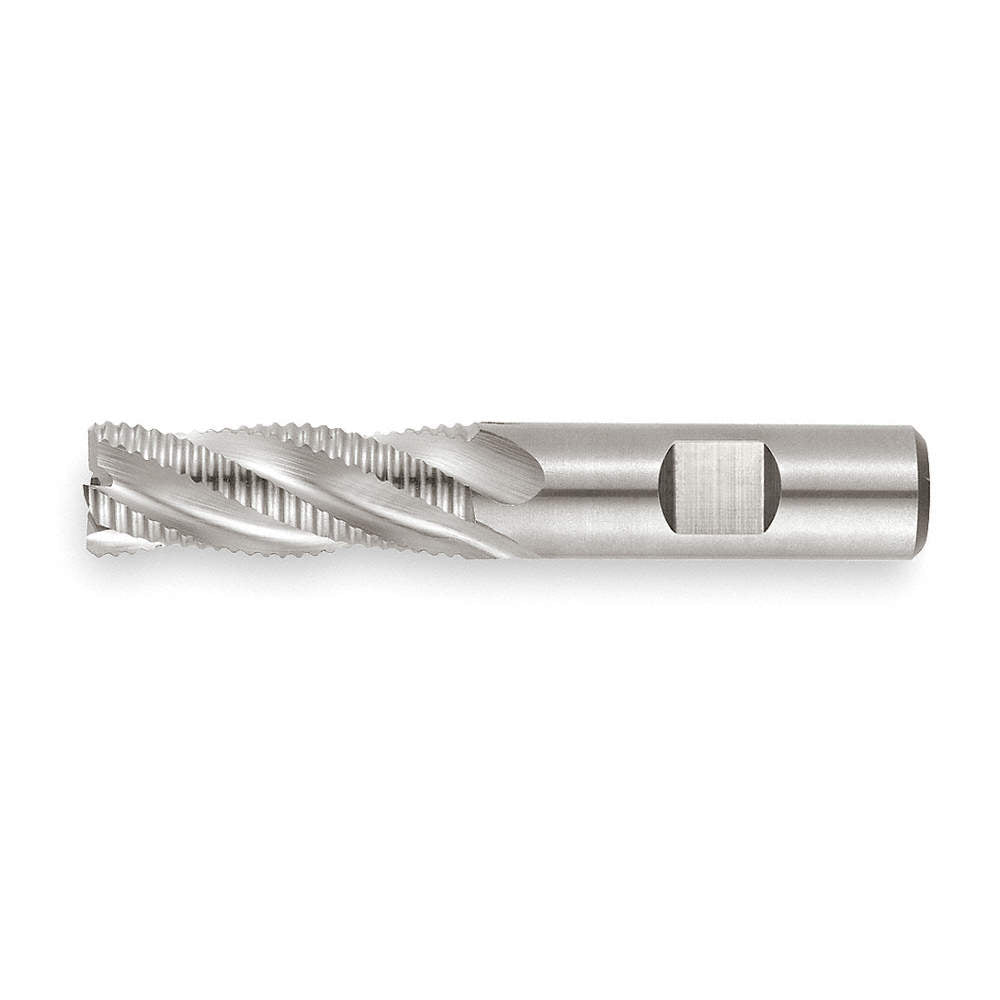

Niagara Cutter NIAGA-03011252 N44523-125 End Mill Corner Chamfer 5/8 X 5/8 X 1-5/8 X 3-3/4 in

Product Description

The Niagara Cutter N44523 Series End Mill features the MPN NIAGA-03011252. This tool is designed for corner chamfer applications with medium length and is suitable for non-center cutting. Its square end helps achieve precision in milling tasks.

• Weldon flat standard for secure fitting
• Ideal for profiling and slotting in a variety of materials
• Constructed from cobalt for durability

Product Highlights

This end mill is efficient in managing heat and provides accurate cuts.

Product Information

Standard Information

• Brand: Niagara Cutter
• Manufacturer Part Number: N44523-125

Technical Specifications

• ANSI Code: REM445-0.625-D3-C030.3-Z4
• Cutting Direction: Right Hand
• Flute Type: Fine Pitch, Spiral
• Helix Angle: 30 deg
• ISO Code: REM445.625D3C030.3Z4
• Material: Cobalt
• Series: N44523
• Shank Length: 2.125 in
• Shank Type: Weldon Flat
• Type: Corner Chamfer, Medium Length, Non-Center Cutting, Single End, Square End
• Cutter Diameter: 5/8 in
• Corner Radius: 0.125 in
• Number of Flutes: 4
• Shank Diameter: 5/8 in
• Overall Length: 3-3/4 in
• Finish: Uncoated
