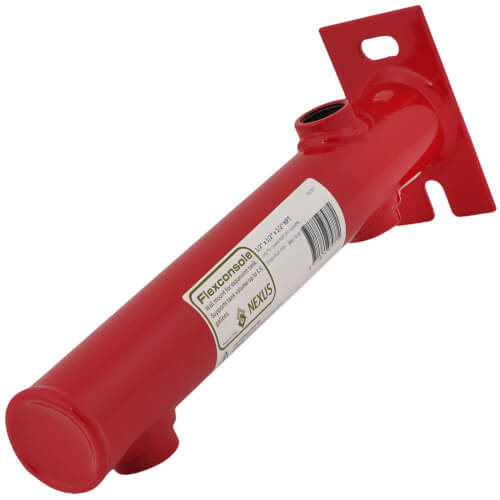

NEXUS F97977 Flexconsole 1/2 x 1/2 x 1/2 NPT Steel Red

Product Description

The NEXUS F97977 Flexconsole offers a reliable solution for wall mounting expansion tanks in hydronic systems. This product allows for secure vertical installation of the expansion tank at connection part B. The main system pipe connects to the Flexconsole at connection part A. This product is designed for use with water and can handle solutions with a maximum of 50% glycol.

• Secure wall mounting for expansion tanks
• Compatible with hydronic heating and domestic hot water systems
• Meets ANSI/ASME B1.20.1 standards

Product Highlights

The Flexconsole is essential for maintaining stability in expansion tank installations.

Product Information

Standard Information

• Brand: NEXUS
• MPN: F97977

Technical Specifications

• Material: Steel
• Color: Red
• Size: 1/2 x 1/2 x 1/2
• Maximum Working Pressure: 145 PSI
• Minimum Working Pressure: 2.9 PSI
• Suitable For: Water, max. 50% glycol
• Temperature Range: from 14 to 248F
• In Accordance With: ANSI/ASME B1.20.1
• Warranty: 5 Year
