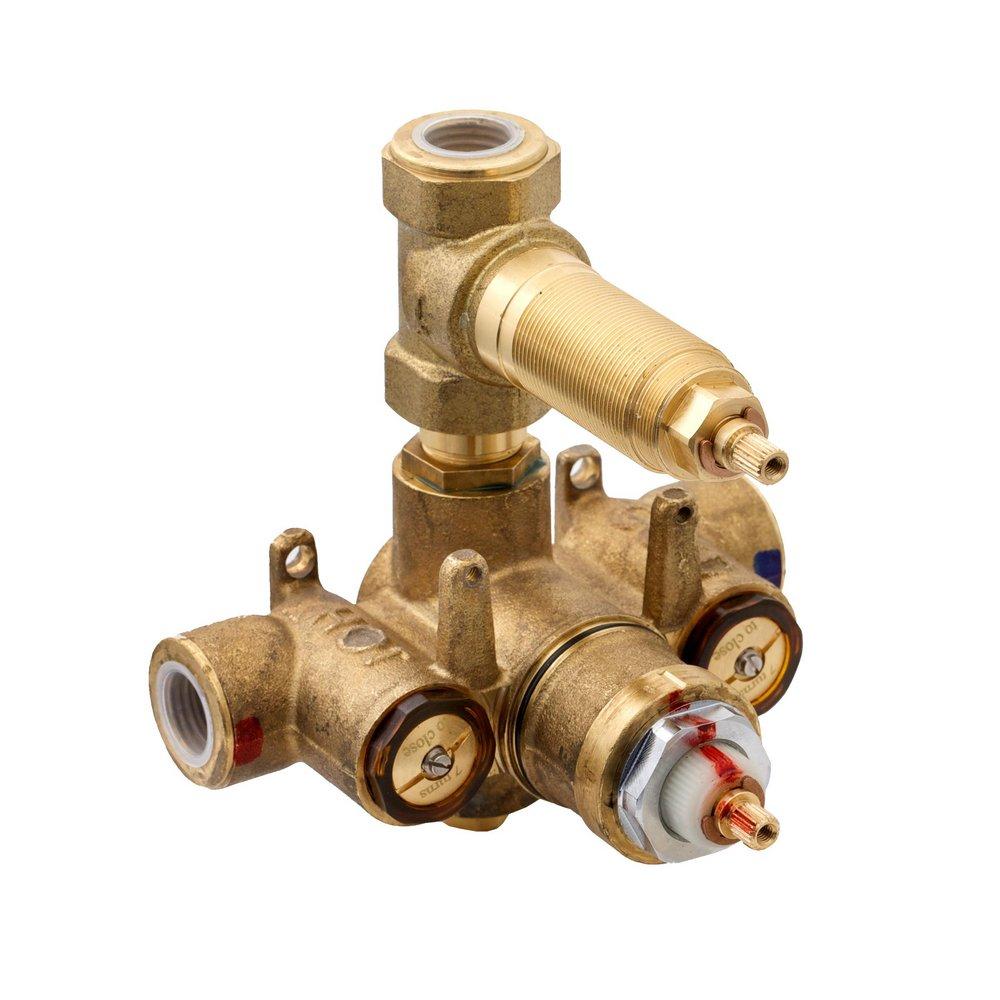

Newport Brass 1-741 Luxtherm 1/2 in. FNPT Thermostatic Valve

Product Description

The Newport Brass 1-741 Luxtherm 1/2 in. FNPT thermostatic valve is designed for precise temperature control and user safety in bathtub and shower applications. This valve features a solid brass construction for durability and reliability.

• Anti-scald protection
• Requires Newport Brass thermostatic trim
• Flow rate of 10.25 gallons per minute

Product Highlights

This valve includes a high-temperature safety stop ensuring water remains at a maximum temperature of one hundred degrees Fahrenheit. The valve body has 1/2 inch female NPT threads for easy installation and connection.

Product Information

Standard Information

• Brand: Newport Brass
• Part No.: N1-741

Technical Specifications

• Material: Solid brass
• Flow Rate: 10.25 gallons per minute at 60 psi
• Connection Type: 1/2 inch FNPT
• Temperature Regulation: Anti-scald protection
• Safety Stop Maximum: 100 degrees Fahrenheit
• Service Stops: Built-in check valves
• Installation: Mounting tabs for secure fit
• Trim Requirements: Compatible with Newport Brass thermostatic trim (sold separately)
