Newport Brass 1-500U Faucet-valves

Product Description

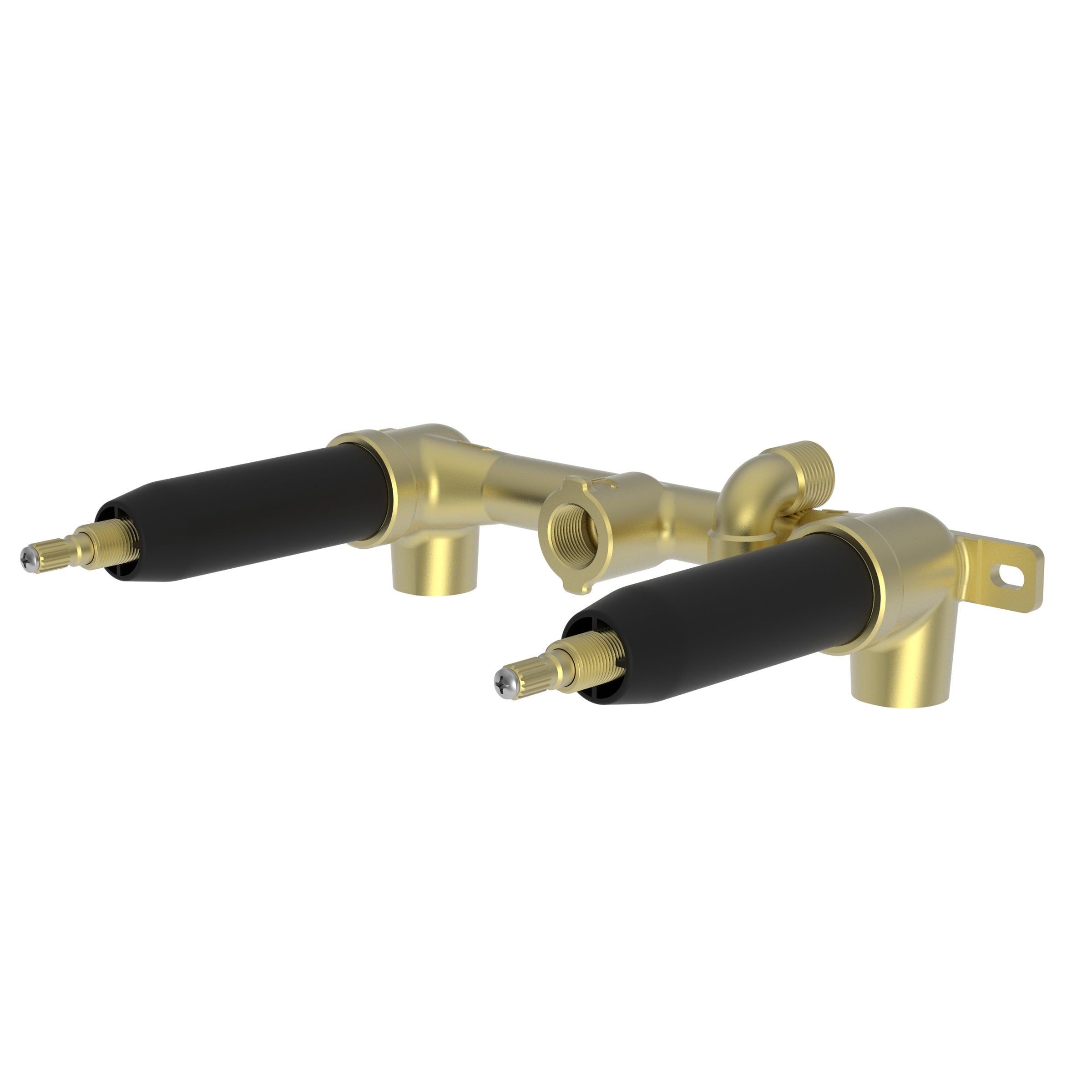

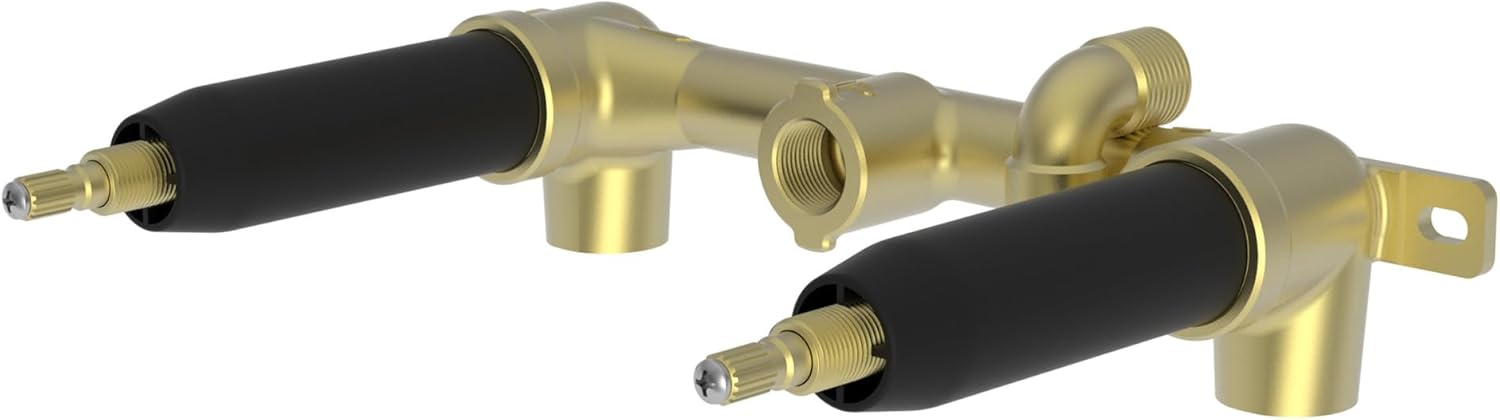

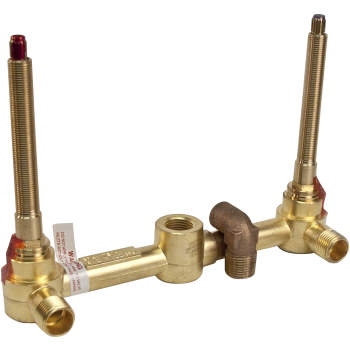

The Newport Brass 1-500U faucet valve features solid brass construction and a 1/2" NPT female thread for both inlet and outlet. It utilizes high-torque, quarter-turn washerless ceramic valve cartridges. This universal rough-in valve is designed for wall-mounted tub faucets and requires Newport Brass Wall Mount Tub Trim, which is sold separately.

• Solid brass construction
• 1/2" NPT female thread (inlet and outlet) valve body
• High torque quarter-turn washerless ceramic valve cartridges

Product Highlights

Solid brass faucet valve with ceramic cartridges and 1/2" NPT female thread.

Product Information

Standard Information

• Brand: NEWPORT BRASS
• Manufacturer Part Number: 1-500U
• Country of Origin: Unknown

Technical Specifications

• Color: Brass
• Finish: Polished
• Material: Brass
• Mounting Type: Wall Mount
• Handle Material: Ceramic
• Batteries Required?: No
• Included Components: Product Only
• Thread Size: 1/2 in.
• Connection Type: NPT Female
• Flow Rate: 12.5 gpm (@ 40 psi)
• Product Type: Wall Mount Tub Faucet Universal
• End Connection: 1/2IN NPT
• Used on: Newport Brass Wall Mount Tub Trim
• Valve Body: 1/2 in. NPT female thread (inlet and outlet)
• Construction: Solid brass
• Cartridges: Quarter-turn washerless ceramic valve
• Water Connection: 1/2"
• Installation Type: Wall Mounted
• Valve Type: Ceramic Disc
• Approved for Commercial Use: Yes
• Lead Leaching Certified NSF/ANSI 61: N/A (Regulation does not apply)
• Cartridge Included: Yes
• Volume Control: No
• Model Number: 1-500U
• UPC: 709180173619
• Alternative SKU: Newport Brass 1-500U
