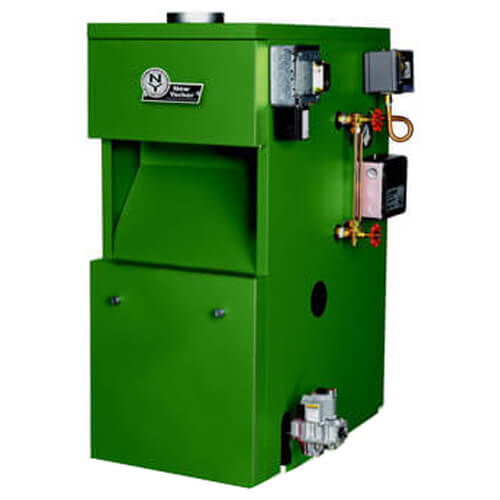

New Yorker CGS50C CGS-C Series 85,000 BTU Output Electronic Ignition Cast Iron Gas-Fired Steam Boiler w/ LWCO (NG)

Product Description

The NEW YORKER CGS50C CGS-C Series boiler provides 85,000 BTU output and features electronic ignition. This gas-fired steam boiler includes a low water cut-off (LWCO) and is designed for natural gas. It meets the ASME Boiler and Pressure Vessel Code and fits in low spaces with its built-in draft diverter. The unit is fully assembled for easy installation.

• 85000 Max BTUs
• Natural Gas fuel type
• 10 Year Limited Warranty

Product Highlights

This boiler features electronic ignition, stainless steel burners and a cast iron heat exchanger for efficient and reliable steam generation.

Product Information

Standard Information

• Brand: NEW YORKER
• Manufacturer Part Number: CGS50C

Technical Specifications

• Up to: 82.2% AFUE
• BTU Input: 138000
• DOE Heating Capacity: 113 MBH
• Net AHRI Rating, Steam: 85 MBH
• Electronic ignition: Yes
• Stainless steel burners: Yes
• Fuel Type: Natural Gas
• Efficiency: 82%
• System Type: Steam
• Width (Inches): 19.25"
• Height (Inches): 40.4375"
• Features: Electronic Ignition
• Chimney Vent: Yes
• Vent Size: 6"
• Gas Connection: 2"
• BTU Output: 85000
• AHRI Rating: 85000
• DOE Rating: 113000
• Number of Sections: 5
• Warranty: 10 Year Limited
• Manufacturer: New Yorker Boiler Company LLC
• Model: CGS50C
• Year: 2018
• Maximum water temperature: 250 degrees Fahrenheit
• MWAP, water: 50 PSI
• MWAP, steam: 15 PSA
• Minimum relief valve capacity: 113 pounds per hour
• Input gas: 138 MBH
• AFUE percent: 82
• Gas supply pressure - Maximum: 14
• Gas supply pressure - Minimum: 4.5
• Electrical requirements: 120 volts
