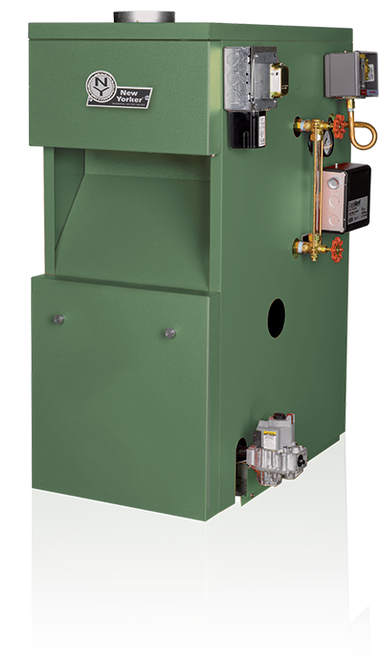

New Yorker CGS30CNI-H CGS-C Steam Series 70000 BTU Steam Boiler

Product Description

The New Yorker CGS30CNI-H is a CGS-C steam series steam boiler with a capacity of seventy thousand BTUs. This product is suitable for smaller homes and apartments. It has an annual fuel utilization efficiency (AFUE) rating of up to eighty-one point nine percent. The boiler is equipped with electronic ignition and a factory vent damper. The design minimizes standby losses compared to older models, ensuring efficient delivery of dry and even steam to radiators.

• Compact, chimney-vented gas steam boiler
• Durable cast-iron construction
• Electronic ignition with factory vent damper

Product Highlights

This steam boiler is ideal for both one-pipe and two-pipe radiator systems.

Product Information

Standard Information

• Fuel Type: Natural Gas
• Installation Type: Floor Mount

Technical Specifications

• Input (NG): 69000 BTU/h
• DOE Heating Capacity: 56000 BTU/h
• Net IBR (Steam): 42000 BTU/h
• AFUE: Up to 81.9%
• Venting: Built-in draft diverter, 4 inch flue to a lined masonry or listed metal chimney
• Steam Supply / Return Tappings: 2 inch NPT (each)
• Gas Inlet: 3/4 inch NPT
• Electrical: 120V, 60 Hz
• Height: 40 7/16 inches
• Width: 12 3/4 inches
• Depth: 28 inches
• Heat Exchanger Material: Cast Iron
• Combustion Type: Conventional
• DHWS Production: No
• Assembly Type: Packaged
• Gas Conversion Kit: Not Convertible
• Warranty: Parts warranty of 1 year, heat exchanger warranty of 10 years
• Application: Residential
