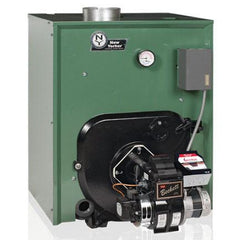

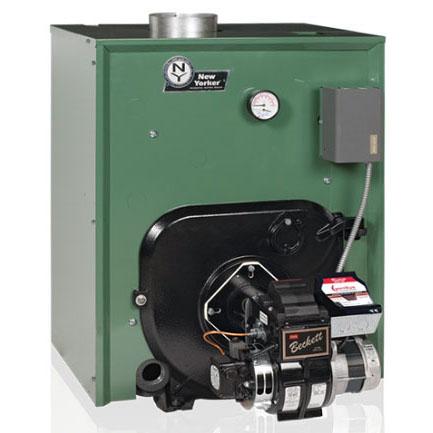

New Yorker Boiler cl4-168-wet-tl Oil Water Boiler 179 Mbh

Product Description

The NEW YORKER BOILER cl4-168-wet-tl is a cast iron, oil-fired hot water boiler designed for residential heating applications. It delivers a DOE heating capacity of 179 MBH with an AFUE rating of 84 percent, making it a solid-performing unit for forced hot water systems. The boiler ships less burner but includes a tankless coil for domestic hot water production and a Hydrolevel hydrostat control. The cast iron wet base heat exchanger surrounds the flame with water-backed surfaces, increasing heat transfer efficiency. An integrated boiler control with thermal purge and combination high-limit circulator relay are also included. Licensed oil heat technicians and HVAC contractors are the typical installing trades.

This boiler is intended for residential oil-fired hot water heating systems requiring a floor-mounted, chimney-vented unit. It is rated at a net IBR of 156 MBH and fires at 1.5 GPH. The inclusion of a tankless coil rated at 4 GPM makes this unit suitable for applications combining space heating with domestic hot water production. The unit accepts a Beckett AFG oil burner and Beckett GeniSYS primary control as optional additions, allowing the installer to match the burner package to the specific job requirements.

Key Features

• Cast iron wet base design surrounds the combustion chamber with water-backed surfaces for increased heat transfer
• Integrated boiler control with thermal purge circulates residual warm water before firing, reducing energy waste
• Combination high-limit and circulator relay simplifies wiring and control
• Tankless coil provides domestic hot water at up to 4 GPM
• Hydrolevel hydrostat included for outdoor reset or aquastat control
• Factory-installed relief valve rated at 30 psi
• Deluxe insulated jacket reduces standby heat losses
• Lifetime limited warranty; manufactured in the USA

Compatibility

Designed for use with a Beckett AFG oil burner and Beckett GeniSYS primary control (sold separately). Compatible with chimney venting systems using an 8-inch by 8-inch rectangular flue with a minimum 15-foot height. Supply and return connections are 1-1/2-inch threaded.

Installation Notes

Installation must be performed by a licensed oil heat technician or qualified HVAC contractor in accordance with NFPA 31 and local mechanical codes. Shut off all electrical power and fuel supply before connecting or servicing any components. The unit requires a floor-mount installation with proper chimney venting; do not connect to plastic or unlined masonry flues without verifying local code compliance. Verify relief valve discharge piping is routed to an appropriate drain before placing the boiler in service.

Technical Specifications

• Boiler Type: Residential Oil Hot Water
• DOE Heating Capacity: 179 MBH
• Net IBR Rating: 156 MBH
• AFUE Rating: 84 percent
• Firing Rate: 1.5 GPH
• Fuel Type: Oil
• Input Supply: 120 volt AC, 1-phase, 60 Hz
• Pressure Rating: 30 psi
• Tankless Heater Capacity: 4 GPM
• Water Content: 20 gallons
• Supply Connection: 1-1/2 inches threaded
• Return Connection: 1-1/2 inches threaded
• Boiler Dimensions: 24.625 inches L x 22.375 inches W x 31.625 inches H
• Chimney Size: 8 inches x 8 inches rectangular, 15-foot minimum height
• Heat Exchanger Material: Cast Iron
• Ignition Type: Electronic
• Venting Type: Chimney
• Mounting Type: Floor Mount
• Relief Valve: Factory Installed
• Applicable Standards: ETL (US), ASME H, AHRI
• Warranty: Lifetime Limited
• Country of Origin: USA

Standard Information

• Brand: NEW YORKER BOILER
• Manufacturer Part Number: cl4-168-wet-tl
