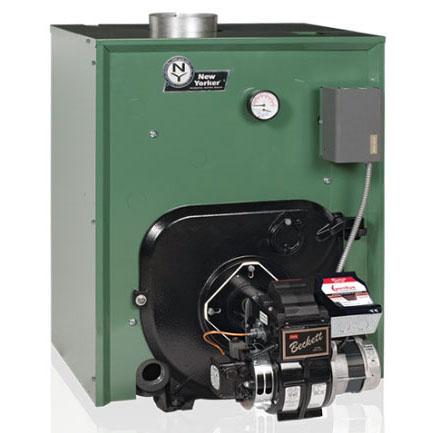

New Yorker Boiler CL3-105-WEN-TL CL3 Series 3-Section Efficient Oil-Fired Boiler 140000 Btu/hr

Product Description

The NEW YORKER BOILER CL3-105-WEN-TL is a CL3 Series 3-section efficient oil-fired boiler. It features a 80 mbh Net IBR, 140000 Btu/hr input, and electronic ignition. This boiler is equipped with a reliable cast iron heat exchanger and an advanced hydronic control. Domestic hot water models are available.

• Reliable American-made sectional heat exchanger with leak free metal push nipples
• Wet base design
• Hydrolevel Hydrostat 3250+ Integrated Control with high limit, LWCO, circulator relay, boiler reset and thermal purge

Product Highlights

Efficient oil-fired boiler with cast iron heat exchanger and advanced hydronic control for reliable heating performance.

Product Information

Standard Information

• Brand: NEW YORKER BOILER
• Manufacturer Part Number: CL3-105-WEN-TL

Technical Specifications

• AFUE: 87 %
• BTU Heating Input Rating (Custom): 144,000 BTU/h
• BTU Heating Input Rating: 140,000 BTU/h
• BTU Heating Output Rating (Custom): 96,000 BTU/h
• BTU Heating Output Rating: 92,000 BTU/h
• Condensing: No
• Depth: 17.375 in
• ENERGY STAR Certified: Yes
• Fuel Type: Natural Gas
• Height: 31.625 in
• Inlet Connection Size: 1-1/2 in
• Installation / Mounting Type: Floor Mount
• Media / Fluid Type: Water
• Model Number: CL3
• Number of Stages: Single-Stage
• Outlet Connection Size: 1-1/2 in
• Phase: 1 ph
• Product Family: CL Water
• Vent Type: Atmospheric
• Voltage Rating: 120 V
• Width: 14.5 in
• Product Type: Item
• Length: 37.00"
• Material: Cast Iron
• Listing: ASME-H
• Oversized: Yes
