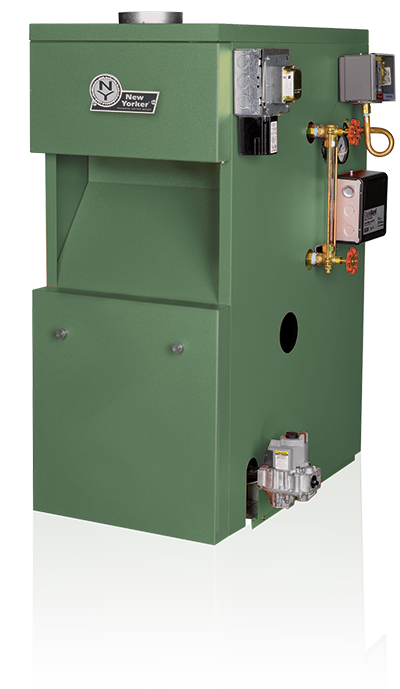

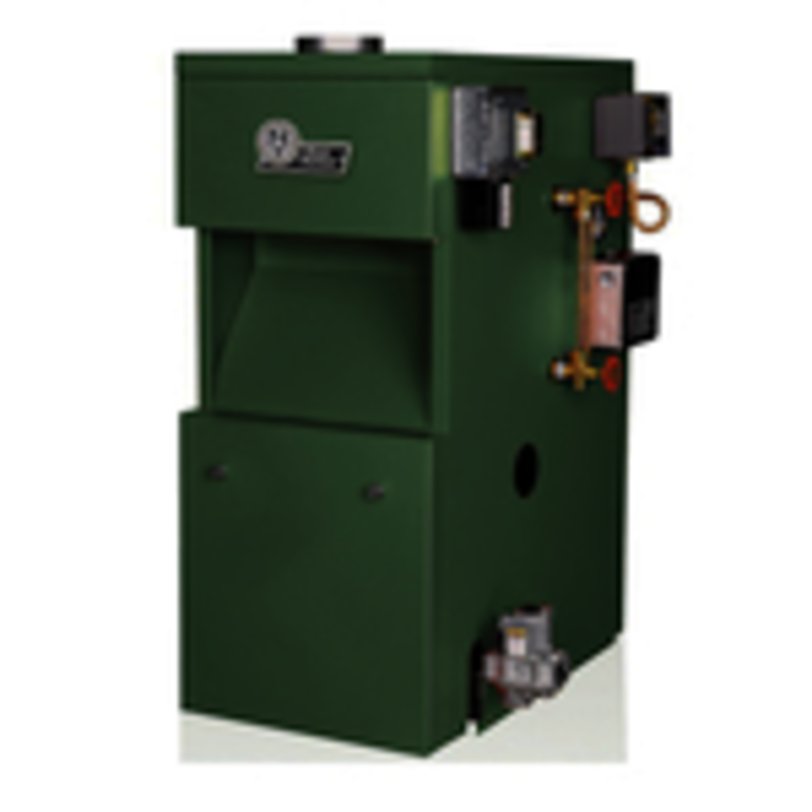

New Yorker Boiler CGS40CNI-H CGS-C Series Steam Boiler 63000 BTU

Product Description

The NEW YORKER BOILER CGS40CNI-H is a gas-fired steam boiler built for reliability and easy service. It features an energy-saving thermal purge that circulates residual warm water and a cast iron heat exchanger that meets the ASME Boiler and Pressure Vessel Code. It delivers steady, even steam while keeping ownership simple for homeowners and contractors.

• 63000 Max BTUs
• Natural Gas fuel type

Product Highlights

This boiler has a built-in draft diverter that fits in low spaces and stainless steel burners.

Product Information

Standard Information

• Brand: NEW YORKER BOILER
• Manufacturer Part Number: CGS40CNI-H

Technical Specifications

• Fuel Type: Natural Gas
• Efficiency: 82%
• System Type: Steam
• Width: 16"
• Height: 40.4375"
• Features: Chimney Vent, Electronic Ignition
• Vent Size: 5"
• Gas Connection: 2"
• BTU Input: 103000
• BTU Output: 63000
• AHRI Rating: 63000
• DOE Heating Capacity: 84000
• Number of Sections: 4
• AFUE Rating: 82.2 %
• Capacity: 6.5 gal
• Connection Type: NPT
• Domestic/Import: Domestic
• Flue Diameter: 5 in
• Ignition Type: Electronic
• Material: Cast Iron
• Model: CGS40C
• Net BTU Rating: 63 mbh
• Pressure Rating: 15 psi
• Series: CGS-C Series
• Input Capacity: 103 mbh
• Housing Material: Cast Iron
• Mounting Type: Floor
• Type: 4-Section Efficient
• Water/Steam Content: 6.5 gal
• Flue Outlet Size: 5 in
• Input (NG): 103,000 BTU/h
• Heat Exchanger: Cast Iron Sections with Metal Section Connectors
• Connections: 2" steam supply / 2" return; 1/2" NPT gas; 5" flue collar
• Weight: 420.0 lb
• Horse Power: 1/3
• Length: 41.00 in.
