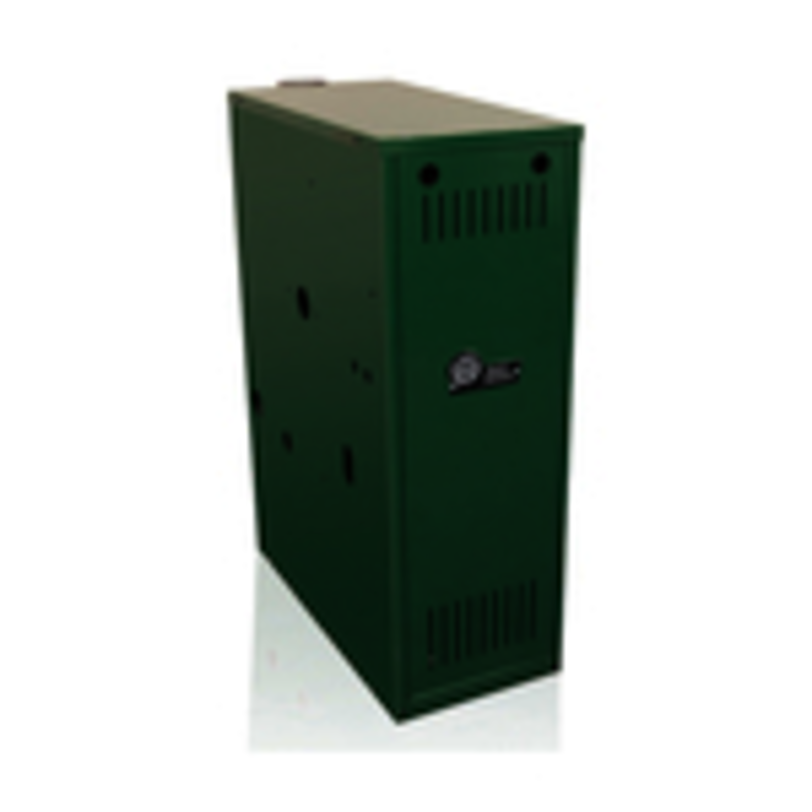

New Yorker Boiler CG30FN-TH CG30F 51,000 BTU Output Spark Ignition Cast Iron Gas-Fired Water Boiler w/ LWCO, Grundfos Pump (NG)

Product Description

The NEW YORKER BOILER CG30FN-TH is a gas-fired water boiler with a 51,000 BTU Net AHRI rating. Features include an energy-saving thermal purge, which circulates residual warm water in the heating system before firing the boiler. It is equipped with an integrated boiler control and a user-friendly interface. The boiler is chimney vented and has a 1/2" gas connection.

• Natural Gas fuel type
• Features an energy-saving thermal purge feature
• Cast iron heat exchanger meets ASME standards

Product Highlights

Efficient gas-fired water boiler with user-friendly controls and robust construction.

Product Information

Standard Information

• Brand: NEW YORKER BOILER
• Manufacturer Part Number: CG30FN-TH

Technical Specifications

• AFUE Rating: 84 %
• BTU Input: 70000
• Fuel Type: Natural Gas
• System Type: Hydronic (Water)
• Width (Inches): 14"
• Height (Inches): 40"
• Features: EI/Spark Ignition Chimney Vent
• Vent Size: 4"
• Gas Connection: 1/2"
• AHRI Rating: 51000
• DOE Rating: 59000
• Pump Type: Grundfos
• Connection Type: 1/2 in NPT Gas
• Domestic / Import: Domestic
• Housing Material: Cast Iron
• Ignition Type: Spark
• Input Capacity: 70 mbh
• Type: Efficient
• Vent Type: Chimney
• DOE Heating Capacity: 59 mbh
• Enclosure Type: Steel
• Flue Outlet Size: 4 in Dia
• Manufacturer: New Yorker Boiler
• Manufacturer #: CG30FN-TH
• Mounting Type: floor
• NetIBR Rating: 51 mbh
• Series: CG-F
• Voltage Rating: 120 V
• Water / Steam Content: 2 gal
• Amperage Rating: 12 A
