New Yorker Boiler 112227-01 Beckett Oil Burner 105/140 Mbh

Product Description

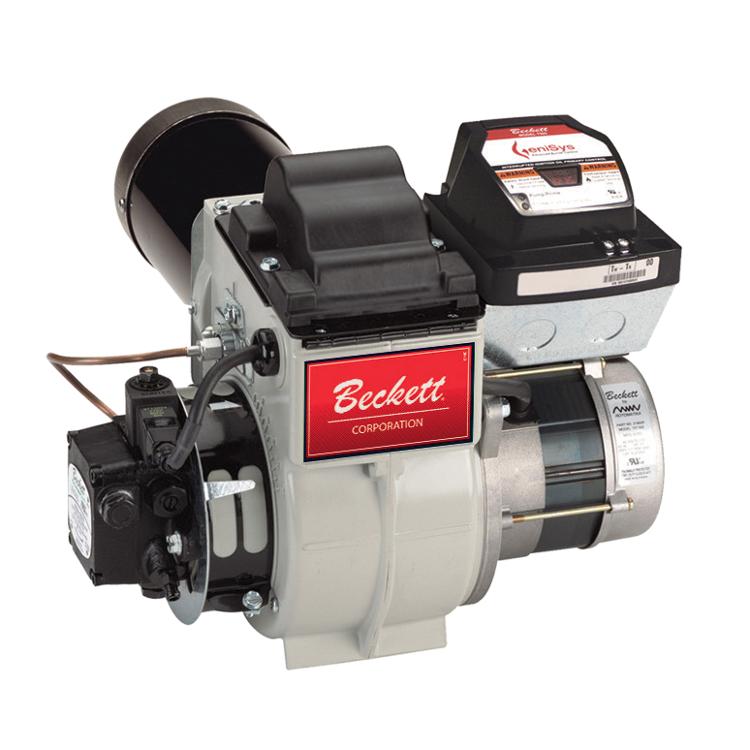

The NEW YORKER BOILER 112227-01 is a Beckett oil burner assembly designed for use in CL3 series oil-fired boilers rated at 105 and 140 MBH. This assembly provides the combustion system for residential and light-commercial hydronic heating applications. The unit ships with a 0.75 GPH nozzle installed and includes a 1.00 GPH nozzle supplied loose, allowing the installer to configure the burner for the appropriate firing rate based on the boiler model and application. Installation is performed by a licensed oil-heat technician familiar with Beckett burner service procedures.

This burner assembly is intended for CL3 series boiler installations where an OEM-matched combustion assembly is required. It is used in residential and light-commercial hydronic heating systems where reliable oil combustion performance and factory-correct configuration are priorities. The dual-nozzle inclusion gives the technician flexibility during commissioning to match the firing rate to the specific boiler block and heat load.

Key Features

• Beckett oil burner assembly configured for 105 and 140 MBH input ratings
• 0.75 GPH nozzle installed at time of shipment
• 1.00 GPH nozzle included loose for alternate firing rate configuration
• OEM replacement for NEW YORKER BOILER CL3 series boilers
• Compatible with TWC and KSC boiler block variants as specified

Compatibility

Designed for use with the following NEW YORKER BOILER CL3 series blocks: TWC-075-ZLT41, TWC-075-ZTT41, KSC-075-ZLP11, and KSC-075-ZTP11.

Installation Notes

Installation must be performed by a licensed oil-heat technician in accordance with NFPA 31 and applicable local codes. Shut down the boiler and disconnect power before removing or mounting the burner assembly. Verify the correct nozzle is installed for the target firing rate before startup, and perform a full combustion analysis after installation to confirm proper air-fuel ratio and stack temperature. Do not operate the burner without confirming oil supply pressure and line purging are complete.

Technical Specifications

• Input Rating: 105/140 MBH
• Nozzle Installed: 0.75 GPH
• Nozzle Supplied Loose: 1.00 GPH
• Burner Brand: Beckett
• Application: Oil-fired hydronic boiler

Standard Information

• Brand: NEW YORKER BOILER
• Manufacturer Part Number: 112227-01
