New Yorker Boiler 111073-03 Oil Burner 105/140 Mbh

Product Description

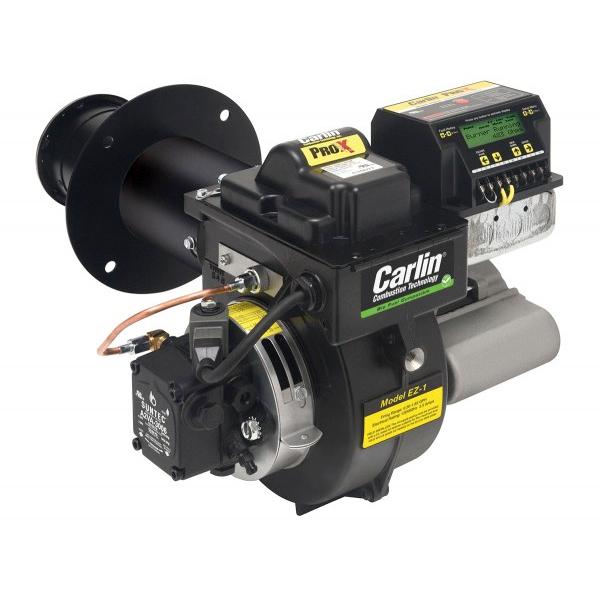

The NEW YORKER BOILER 111073-03 is a Carlin EZ-1 model oil burner designed as a factory-specified component for New Yorker cast iron boilers. It fires at a rated input range of 105 to 140 MBH and ships configured with a 0.85 x 60B Delavan nozzle for proper fuel atomization. The Carlin cross-reference for this assembly is 98863C11. Licensed oil burner technicians and heating contractors handle installation and service on this type of unit. The burner mounts directly to the boiler combustion chamber and is matched to deliver the correct air-fuel ratio for efficient, low-emission operation at rated capacity.

This burner is specified for the New Yorker CL3-105E cast iron residential hydronic boiler. It is used in forced hot water heating systems where a correctly matched oil burner is required to maintain rated boiler efficiency and safe combustion. The EZ-1 platform from Carlin is a widely used burner in residential and light commercial oil-fired heating applications. Installation is performed during new boiler commissioning or as a direct OEM replacement when the original burner has failed or requires upgrade.

Key Features

• Carlin EZ-1 burner platform configured to New Yorker OEM specifications
• Rated input range of 105 to 140 MBH for proper heat output matching
• Ships with a 0.85 x 60B Delavan nozzle installed
• Carlin cross-reference part number 98863C11
• Direct OEM replacement for New Yorker CL3-105E boiler models

Compatibility

Specified for the New Yorker CL3-105E cast iron hydronic boiler rated at 105 to 140 MBH. Carlin cross-reference number is 98863C11.

Installation Notes

Installation must be performed by a licensed oil burner technician in accordance with NFPA 31 and all applicable local codes. Shut off all electrical power and close the oil supply valve before removing or mounting the burner. After installation, a combustion analysis using a flue gas analyzer is required to verify CO2, stack temperature, and smoke number before returning the system to service. Do not operate the burner without verifying that the nozzle, electrodes, and air band settings meet the boiler manufacturer specifications.

Technical Specifications

• Burner Model: Carlin EZ-1
• Carlin Part Number: 98863C11
• Rated Input: 105 to 140 MBH
• Nozzle: 0.85 x 60B Delavan
• Compatible Boiler Model: New Yorker CL3-105E

Standard Information

• Brand: NEW YORKER BOILER
• Manufacturer Part Number: 111073-03
