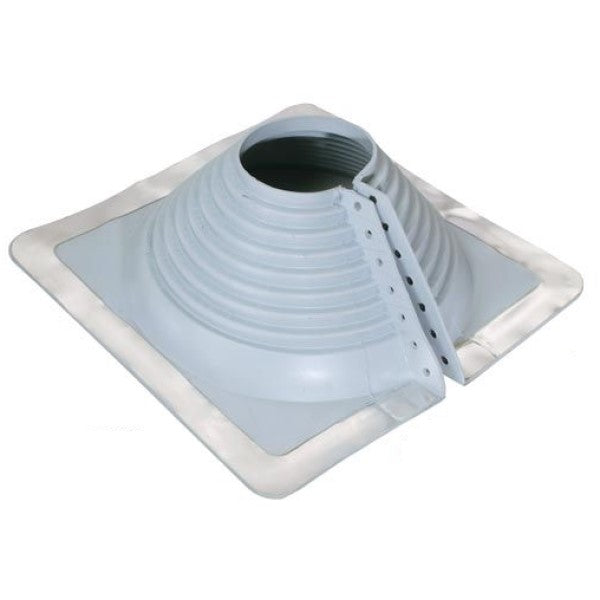

Neverleak 101RF Retrofit EPDM Master Roof Flashing (1/2 to 4 in)

Product Description

NeverLeak 101RF is a retrofit EPDM master roof flashing for metal roof venting that fits pipe sizes from 1/2 to 4 in. It is designed for retrofit installations where over-the-top installation is not an option and includes flashing, a cable clamp, and snap rivets. The cut opening is 20% smaller than the pipe outside diameter to form a compression seal; a polyurethane sealant is required at the top. A silicone option is available for high-temperature applications.

• Designed for retrofit metal roof venting when over-the-top installation is not possible
• Fits pipe sizes 1/2 to 4 in; cut opening 20% smaller than pipe OD to form a compression seal
• EPDM construction; includes flashing, cable clamp and snap rivets; silicone option for high-temperature use

Product Highlights

Retrofit EPDM roof flashing with compression-seal design for 1/2–4 in vent pipes; includes cable clamp and snap rivets.

Product Information

Standard Information

• Brand: NEVERLEAK
• Manufacturer Part Number: 101RF

Technical Specifications

• Brand: NeverLeak
• MPN: 101RF
• Part Number: M2451
• Product Number: NEV101RF
• Item Number: 389793
• Application: Metal roof venting
• Material: EPDM
• Material Options: EPDM or Silicone (silicone for high-temperature applications)
• Pipe Size: 1/2 to 4 in
• Includes: Flashing, cable clamp, snap rivets
• Cut Opening: 20% smaller than pipe outside diameter (OD)
• Seal Type: Compression seal
• Installation Requirement: For retrofit installations, use polyurethane sealant at top where flashing meets pipe
• Pieces Per Carton: 5
• Color: Grey
