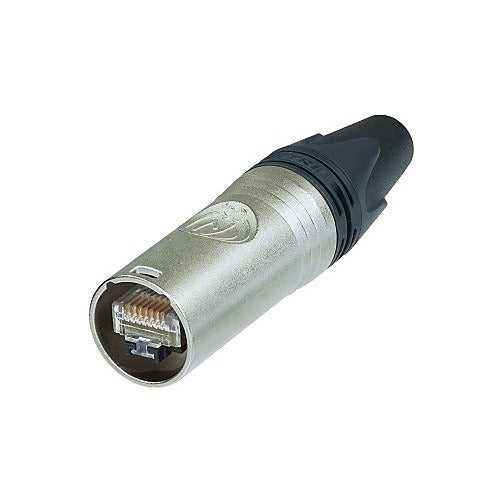

Neutrik Americas NE8MX6 Ethercon Cat6a Connector

Product Description

The NEUTRIK AMERICAS NE8MX6 is a rugged EtherCON Category 6a field-termination connector finished in chromium. EtherCON connectors combine a standard RJ45 plug with a locking XLR-style housing, producing a secured Ethernet connection that resists accidental disconnection and physical damage. This connector is designed for permanent or semi-permanent data network installations where standard RJ45 plugs are not mechanically adequate. Installation technicians, low-voltage contractors, and AV systems integrators are the primary trades that work with this product.

The NE8MX6 is suited for structured cabling projects in commercial AV, broadcast, live sound, and touring production environments where network runs must remain reliable under physical stress. Category 6a performance supports 10-Gigabit Ethernet at frequencies up to 500 MHz, making it appropriate for high-bandwidth signal transport over copper. The chromium finish is typical for panel-mount or chassis applications where a durable metal shell is required.

Key Features

• EtherCON locking housing provides mechanical protection beyond a standard RJ45 plug
• Category 6a rated for 10-Gigabit Ethernet and frequencies up to 500 MHz
• Chromium finish for durability in demanding installation environments
• Field-terminable design for on-site assembly during structured cabling runs
• Sold individually, one connector per unit

Compatibility

Designed as a field-termination EtherCON connector compatible with Category 6a Ethernet cabling infrastructure. No specific compatible models or replacement part numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed AV systems integrator familiar with structured cabling standards such as ANSI/TIA-568. Terminate cabling per the applicable T568A or T568B wiring standard before seating the connector. Ensure the locking mechanism fully engages at the panel or chassis before finalizing the run. De-energize any adjacent powered Ethernet equipment following site safety procedures prior to termination work.
