Neuco VR8300M4406 StdgPilotGasVlvW/LPkit&Bsh

Product Description

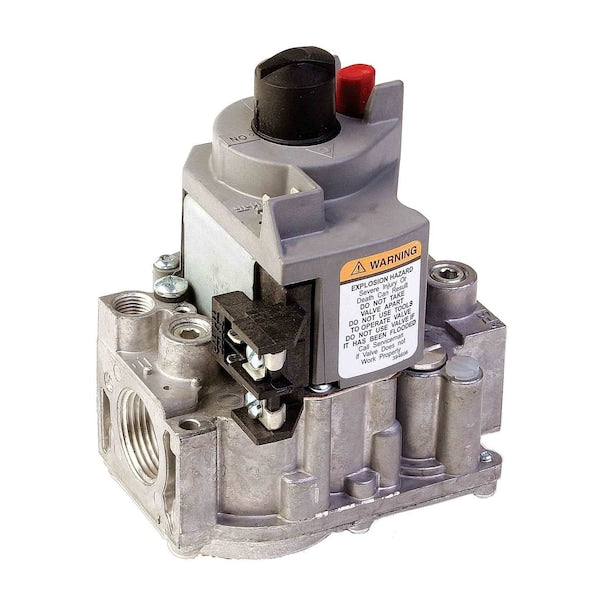

The NEUCO VR8300M4406 is a 3/4" 24vac standing pilot dual automatic combination valve. It features a 3.5" water column, standard opening, single stage, straight through with flange, and a BTU range of 30000 to 290000 BTU max. It also has a 1/8" npt pressure tap with plug and a 1/2# pressure rating.

• 24vac standing pilot dual automatic combination valve
• Includes natural to lp conversion kit
• 3/4" valve size

Product Highlights

The VR8300M4406 is a standing pilot dual automatic combination valve with a natural to LP conversion kit.

Product Information

Standard Information

• Brand: NEUCO
• Manufacturer Part Number: VR8300M4406
• Country of Origin: MX

Technical Specifications

• Manufacturer Part Number: VR8300M4406
• Valve Size: 3/4"
• Voltage: 24vac
• Type: Standing pilot dual automatic combination valve
• Water Column: 3.5"
• Opening: Standard
• Stage: Single stage
• Configuration: Straight through with flange
• BTU Range: 30000 btu to 290000 btu max
• Pressure Rating: 1/2#
• Pressure Tap: 1/8" npt pressure tap with plug
• Included: Natural to lp conversion kit
