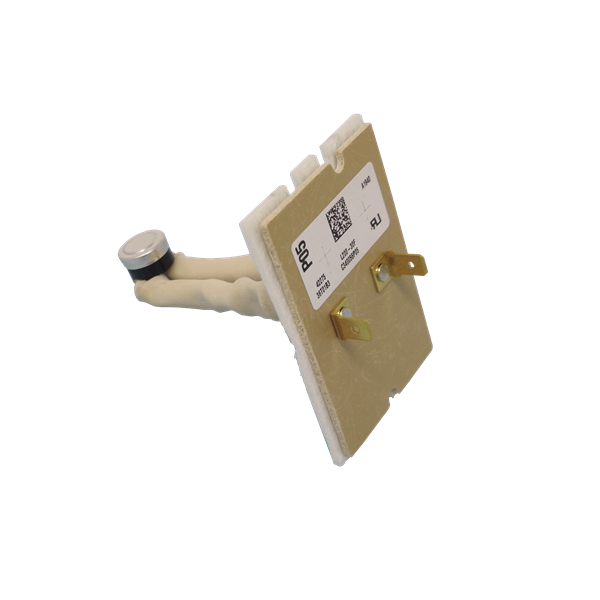

NEUCO SWT01263 Thermal Limit Switch 210 Open 180 Close Trane American Standard Part

Product Description

The NEUCO SWT01263 is a thermal limit switch suited for HVAC systems, especially in Trane and American Standard furnaces. This device acts as a safety mechanism, regulating temperature to prevent overheating. It opens when the temperature reaches 210 degrees Fahrenheit and closes at 180 degrees Fahrenheit. Constructed from durable materials, the switch is built for longevity and is compatible with standard HVAC systems. As an OEM part, it meets the quality standards of original equipment.

• Opens at 210 degrees Fahrenheit
• Closes at 180 degrees Fahrenheit
• OEM part for reliability

Product Highlights

The NEUCO SWT01263 is essential for maintaining safety in HVAC operations.

Product Information

Standard Information

• Open Temperature: 210 degrees Fahrenheit
• Close Temperature: 180 degrees Fahrenheit

Technical Specifications

• Contact Arrangement: SPST
• Contact Configuration: NC
• Current Rating: 5.8 FLA, 34.8 LRA at 120V AC
• Voltage: 120V AC
• Terminal Type: Quick Connect
• Mounting Type: Board/Surface Mount
• Number of Poles: 1
