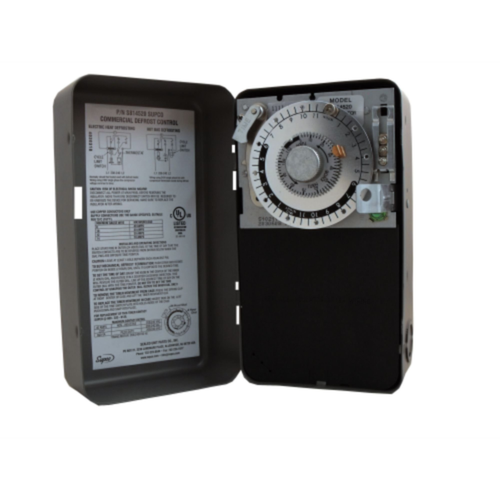

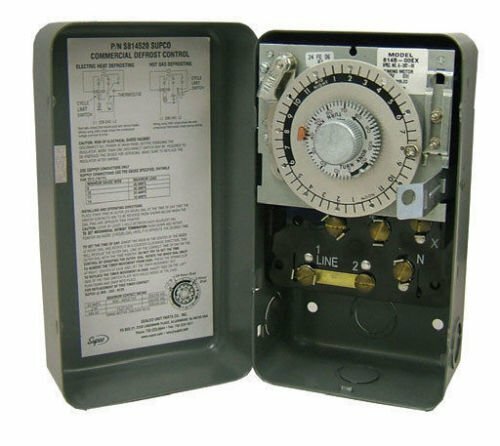

NEUCO S814520 Commercial Defrost Control

Product Description

The NEUCO S814520 is a commercial defrost control ideal for refrigeration tasks. This device works with walk-in boxes, reach-in boxes, refrigerated cases, and condensing units. With features like adjustable defrost cycles and initiation frequencies, it meets diverse operational needs.

• Adjustable defrost cycle duration of four to one hundred ten minutes
• Defrost initiation frequency can be set from one to six times per day
• Contact arrangements for electric heat, hot gas, or off-cycle defrost

Product Highlights

The NEUCO S814520 control offers reliability for commercial refrigeration systems.

Product Information

Standard Information

• Voltage: 240 VAC
• Amperage: 40A Non-Inductive at 120, 208, or 240 VAC

Technical Specifications

• Switching: 1 NO / 1 NC
• Time Initiated Temperature: Yes
• Pressure Terminated: Yes
• Maximum Horsepower: 2 HP at 120, 208, or 240 VAC
• Pilot Duty: 690 VA at 120, 208, or 240 VAC
• Operating Temperature Range: -35°F to 175°F (-37°C to 79°C)
• Frequency: 60Hz
