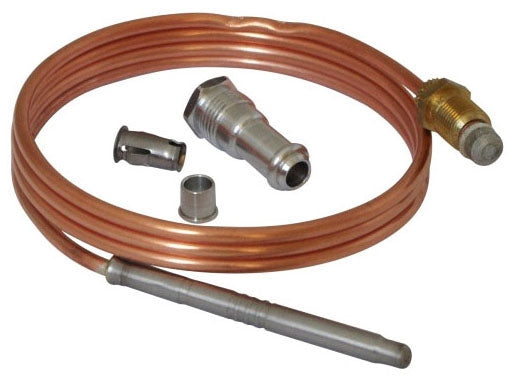

NEUCO K19AT-36 Thermocouple 36 Inch Super Slim Jim

Product Description

The NEUCO K19AT-36 Thermocouple is designed for measuring temperature in various applications. With a length of thirty-six inches, it operates at a hot junction temperature of one thousand three hundred degrees Fahrenheit and a cold junction temperature of eight hundred fifty degrees Fahrenheit.

• Type: Spring Clip, with 11/32-32 TPI Knurled design.
• Temperature measuring range suitable for standing pilot ignition systems.
• CSA approved and adheres to ANSI Z21.20 standards.

Product Highlights

This thermocouple features heavy-duty construction and a built-in junction block for high limit switch addition.

Product Information

Standard Information

• Manufacturer: BASO Gas Products LLC
• Approval: CSA

Technical Specifications

• Temperature Range: 1300 Deg F (Hot Junction)
• Cold Junction Temperature: 850 Deg F
• Open Circuit Voltage Range: 25 to 35 Millivolt
• Resistance: 0.134 Ohm
• Temperature Rating: 640 Deg F (Copper Tube), 300 Deg F (Termination)
• Packaging Type: Plastic Bag with Hardware
