NEUCO K19AT-24 Thermocouple 24 Inch Replacement MPN

Product Description

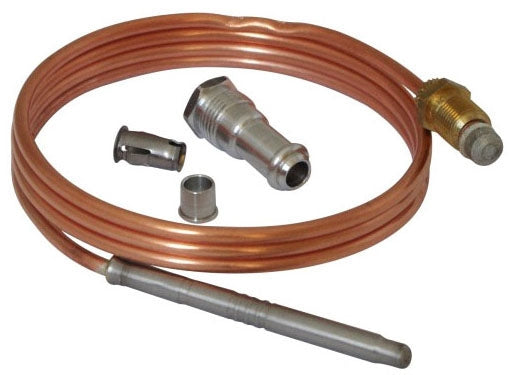

The NEUCO K19AT-24 is a thermocouple designed for reliable temperature measurement. This thermocouple features a length of twenty-four inches and is suitable for use in standing pilot ignition systems.

• Temperature measuring range from eight hundred fifty degrees Fahrenheit to one thousand three hundred degrees Fahrenheit.
• Open circuit voltage range is between twenty-five to thirty-five millivolt.
• Heavy duty construction promotes long life and reliability.

Product Highlights

This thermocouple is built with a high-performance inner and outer element material that provides maximum output capacity. It includes a built-in junction block for the addition of a high limit switch.

Product Information

Standard Information

• Brand: NEUCO
• Manufacturer: BASO Gas Products LLC

Technical Specifications

• Type: Spring Clip
• TPI: 11/32-32 Knurled
• Temperature Rating: 640 Deg F (Copper Tube), 300 Deg F (Termination)
• Applicable Standard: ANSI Z21.20
• Resistance: 0.134 Ohm
• Packaging Type: Plastic Bag with Hardware
