Product Description

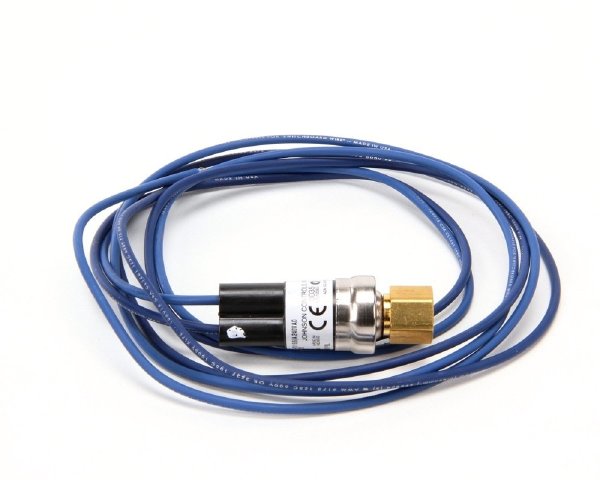

The Neuco Inc P100AP-201 is a standard duty pressure switch designed for HVAC applications. This switch is SPST (single pole, single throw) and operates by opening on pressure drop. It features a differential pressure rating of 22 psi, making it effective for various applications.
- Compact size enables easy installation.
- Tamper-proof design ensures reliable operation.
- Operates on 120 to 240 VAC power supply.
Product Highlights
This pressure switch is suited for managing pressure control in heating and air conditioning systems. Its encapsulated design offers protection against dust and moisture.
Product Information
Standard Information
-
Brand: Neuco Inc
-
Part Number: P100AP-201
Technical Specifications
-
Close Pressure Rating: 32 psi
-
Connection Type: 1/4 in Female Flare Nut
-
Differential Pressure Range: 22 psi
-
Enclosure Type: NEMA 1
-
Includes: Built-In Schraeder Depressor
-
Mounting Type: Direct Schraeder Valve
-
Open Pressure Rating: 10 psi
-
Switch Action: Open on Pressure Drop
-
Switch Type: SPST
-
Type: Encapsulated Standard Duty
