Neuco ces0110057-02 Furnace Ignition Control Board

Product Description

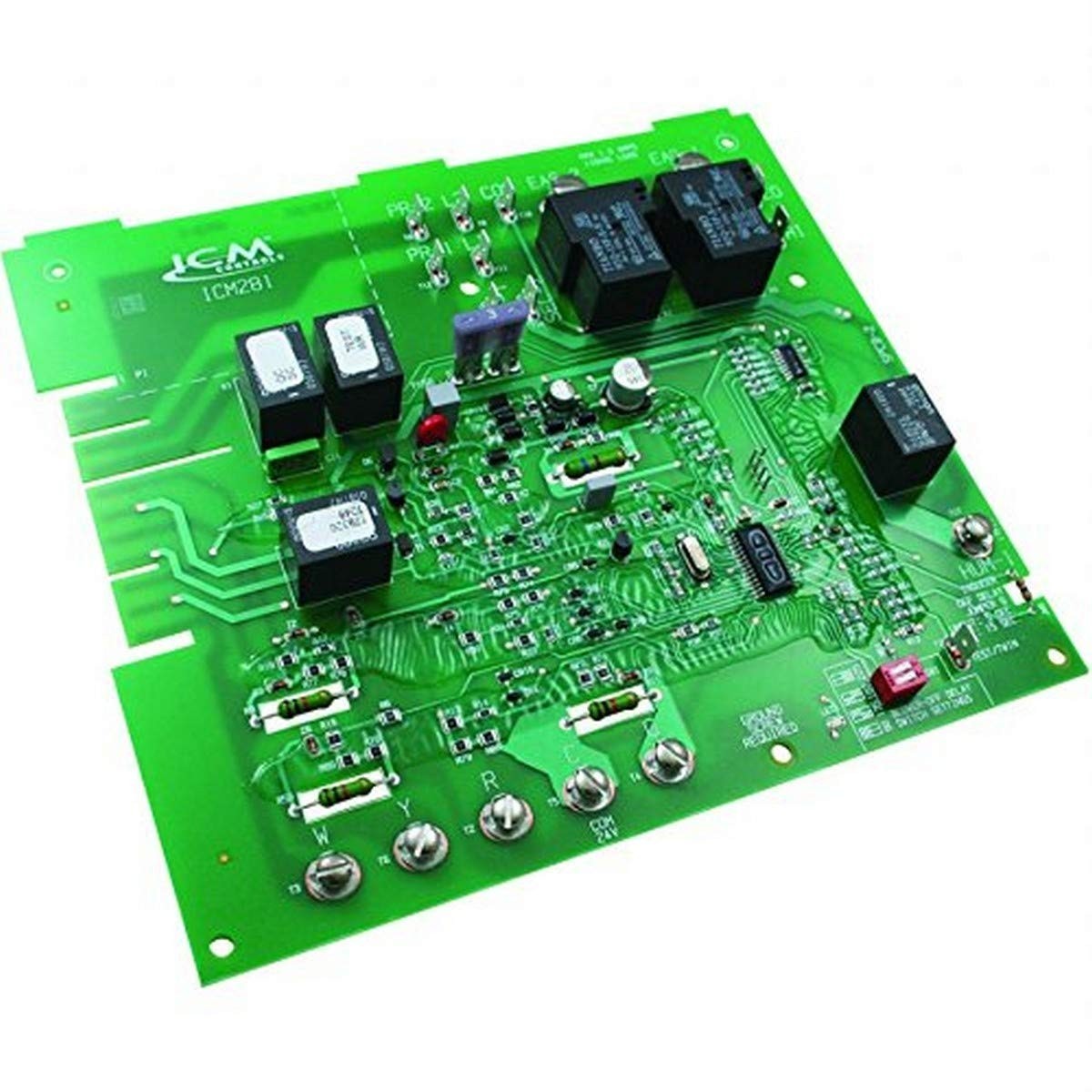

The NEUCO ces0110057-02 is a fixed-speed furnace ignition control board designed as a direct replacement for select Carrier, Bryant, and Payne furnace control boards. It manages core furnace functions including the gas valve, ignitor, blower motor, inducer motor, humidifier, and air cleaner. The board operates on a line voltage range of 98 to 132 VAC at 60 Hz and works with all standard 24-volt thermostats. It supports twinning, allowing two ICM281 boards to be paired for synchronized operation across two furnaces. Licensed HVAC technicians typically handle installation in gas-fired residential or light-commercial furnace applications.

The ces0110057-02 is suited for residential gas furnace installations where the original Carrier, Bryant, or Payne control board has failed or requires replacement. It is compatible with the White-Rodgers 50M56D-751 as well. The board controls the full sequence of furnace operation — draft inducer startup, hot-surface ignition, gas valve energization, and blower staging — making it a comprehensive drop-in solution. Its twinning capability makes it applicable in dual-furnace setups requiring coordinated heating cycles.

Key Features

• Fixed-speed ignition control board replaces select Carrier, Bryant, and Payne OEM boards
• Line voltage input: 98 to 132 VAC at 60 Hz
• Compatible with all standard 24 VAC thermostats
• Controls gas valve, ignitor, blower motor, inducer motor, humidifier, and air cleaner
• Twinning compatible — pair two ICM281 boards for synchronized dual-furnace operation
• Direct replacement for CES0110057-xx series (including CES0110057-00, CES0110057-01, and CES0110057-02), CES0110020, and CES0110048

Compatibility

Replaces Carrier CES0110057-xx series boards (CES0110057-00, CES0110057-01, CES0110057-02), CES0110020, and CES0110048. Also compatible with White-Rodgers 50M56D-751. Works with Carrier, Bryant, and Payne furnaces that originally used these control boards.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the furnace at the breaker and confirm the system is de-energized before removing the existing control board. Follow the original wiring layout and document connection points before disconnecting any wires. Verify line voltage and thermostat wiring are within the specified ranges before restoring power.

Technical Specifications

• Line Voltage: 98 to 132 VAC at 60 Hz
• Thermostat Compatibility: 24 VAC standard thermostats
• Ignitor Output: 5A at 120 VAC
• Cool Blower Output: 30A, 2 HP, 240 VAC
• Heat Output: 5A, 1/2 HP, 240 VAC
• Inducer Motor Output: 4A FLA, 8.0A LRA at 120 VAC
• Gas Valve Output: 1.5A at 30 VAC
• Twinning: Compatible with dual ICM281 board setups

Standard Information

• Brand: NEUCO
• Manufacturer Part Number: ces0110057-02
