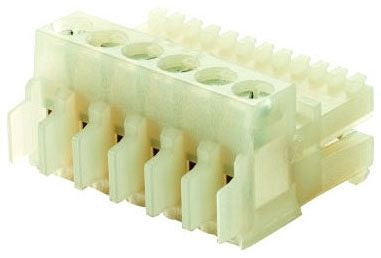

Neuco 50048926-002 Edge Connector Economizer Logic Module

Product Description

The NEUCO 50048926-002 is a 6-position edge connector designed for use with economizer logic modules in commercial HVAC control systems. Edge connectors of this type provide a reliable, low-resistance interface between a printed circuit board and the system wiring harness, allowing signal and power circuits to be routed through the logic module without soldered field connections. This part is typically installed by commercial HVAC technicians during board replacement, economizer repair, or control system service work where the original connector has been damaged or is missing.

This edge connector is suited for economizer control applications where a 6-position interface is required. Economizer logic modules are commonly found in rooftop units and light commercial split systems where outdoor air is managed to reduce mechanical cooling load. The connector seats into the logic module board edge and mates with the corresponding wiring harness plug. This part is sold individually and is also available in a pack quantity of 20, making it a practical stock item for service fleets or supply houses.

Key Features

• 6-position edge connector configuration for economizer logic module interface
• Direct board-edge mount eliminates need for soldered field connections
• Pack quantity of 20 available for bulk stocking by service organizations
• OEM-style replacement for damaged or missing connectors on economizer control boards

Compatibility

Designed as an OEM-style replacement edge connector for economizer logic module control boards requiring a 6-position edge interface in commercial HVAC applications.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all power to the unit before handling any control board or wiring components. Confirm the connector position count and pitch match the existing board edge before seating the new connector. Follow all applicable local codes and manufacturer service guidelines when servicing economizer control systems.

Technical Specifications

• Connector Position Count: 6
• Application: Economizer Logic Module
• Pack Quantity: 20 per pack

Standard Information

• Brand: NEUCO
• Manufacturer Part Number: 50048926-002
