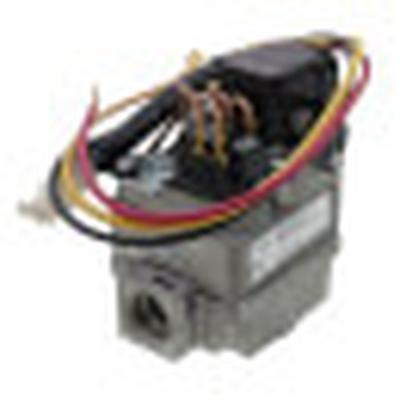

Neuco 36C84-923 Cycle Pilot Gas Valve, Natural Gas, Fast Open 24 Vac, 3/4 x 3/4

Product Description

The Neuco 36C84-923 is a cycle pilot gas valve designed for natural gas systems. This valve is essential for controlling gas flow in HVAC applications. It features a redundant pilot solenoid and an integral gas pressure switch. Its electrical connection accommodates a mercury flame sensor connection.

• Redundant pilot solenoid for enhanced safety
• 24 VAC coil voltage
• Designed for natural gas applications

Product Highlights

This valve is ideal for a range of HVAC installations, ensuring reliable operation in natural gas systems.

Product Information

Standard Information

• Manufacturer: NEUCO, INC.
• Part Number: 576274

Technical Specifications

• Amps: 0.6
• Coil Voltage: 24 VAC
• Gas Type: Natural
• Pipe Size: 3/4 x 3/4
• Opening Characteristic: Fast Open
• Regulator Setting: 3.5
• Regulator Adjustment Range: 2.5-5.0
• Flow Direction: Straight Through
• End to End Dimension: 3-15/16 inches
• Ambient Operating Range: -40 to +75 °F (-40 to 79 °C)
• Maximum Pressure Rating: 1/2 PSI (4.0 W.C.)
