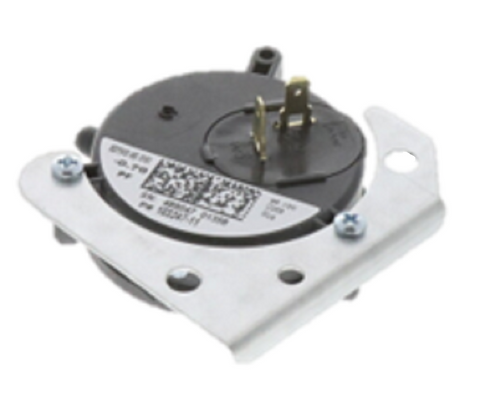

Neuco 12m92 Pressure Switch 0.70 in Wc

Product Description

The NEUCO 12m92 is a pressure switch designed for use in gas furnace systems, where it monitors negative pressure generated by the inducer motor during the heating cycle. When the inducer establishes proper draft, the switch closes to signal the control board that combustion airflow is within safe operating range. The switch is rated at 0.70 inches water column, which defines the differential pressure threshold at which it actuates. HVAC technicians install this component as a direct replacement in furnace systems requiring a 0.70 inches water column setpoint.

This pressure switch is suited for residential gas furnace applications where draft-proving safety controls are required. It is typically installed in forced-air heating systems alongside the inducer assembly and venting components. The switch plays a direct safety role, preventing ignition if adequate draft pressure is not confirmed. Installers working on furnace pressure switch diagnostics or replacements will find this part fits applications calling for a 0.70 inches water column rated switch.

Key Features

• 0.70 inches water column rated actuation setpoint for precise draft pressure proving
• Functions as a safety interlock in the furnace control sequence, blocking ignition on loss of draft
• OEM-style replacement form factor for straightforward swap-out during service calls
• Designed for compatibility with standard inducer pressure port tubing connections

Compatibility

Designed as an OEM-style replacement pressure switch for residential gas furnace systems requiring a 0.70 inches water column rated draft-proving switch. The raw title references Lennox 12M92, suggesting this part is associated with Lennox furnace applications, but confirm compatibility against the specific unit model and existing pressure switch markings before installation.

Installation Notes

Pressure switch replacement is performed by licensed HVAC technicians. Shut down power to the furnace and allow the system to cool before beginning service. Disconnect the existing pressure switch hose and electrical connector, noting the port orientation and wire routing before removal. Verify the replacement switch setpoint matches the original unit specification before returning the system to operation.

Technical Specifications

• Pressure Rating: 0.70 inches water column
• Switch Type: Furnace draft pressure switch

Standard Information

• Brand: NEUCO
• Manufacturer Part Number: 12m92
