NetKey NK688MWH PAND NK688MWH 8POS/8WR JCK MODULE

Product Description

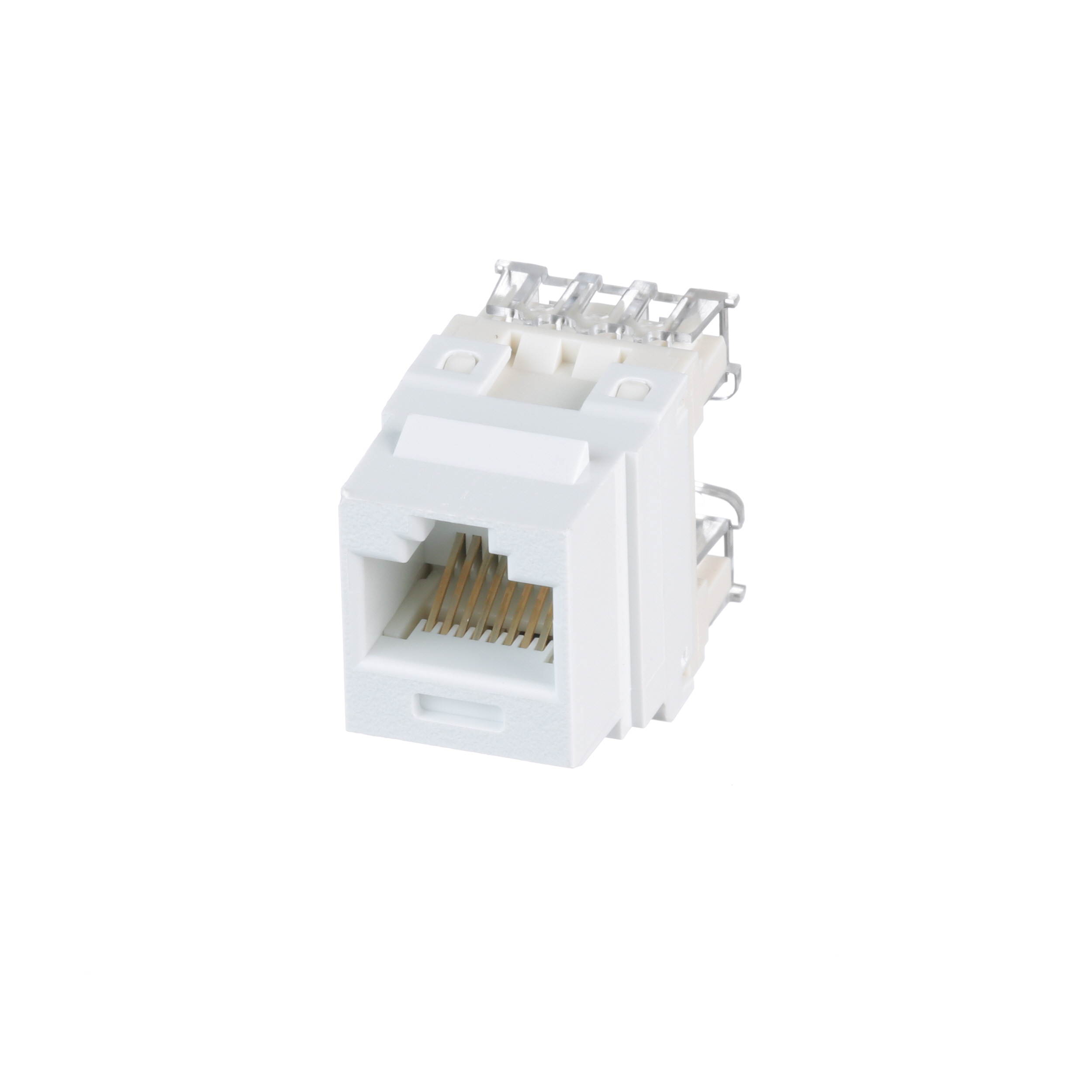

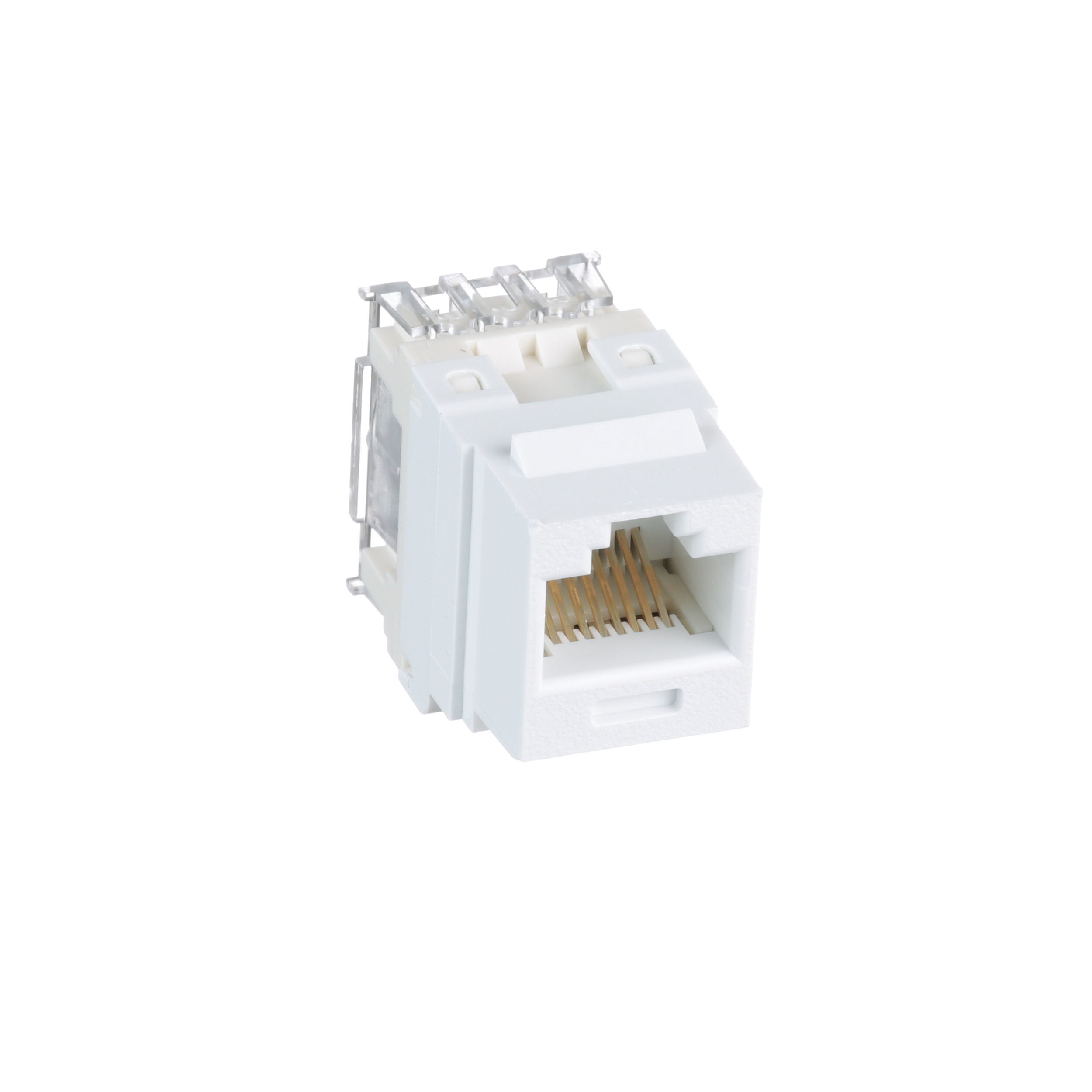

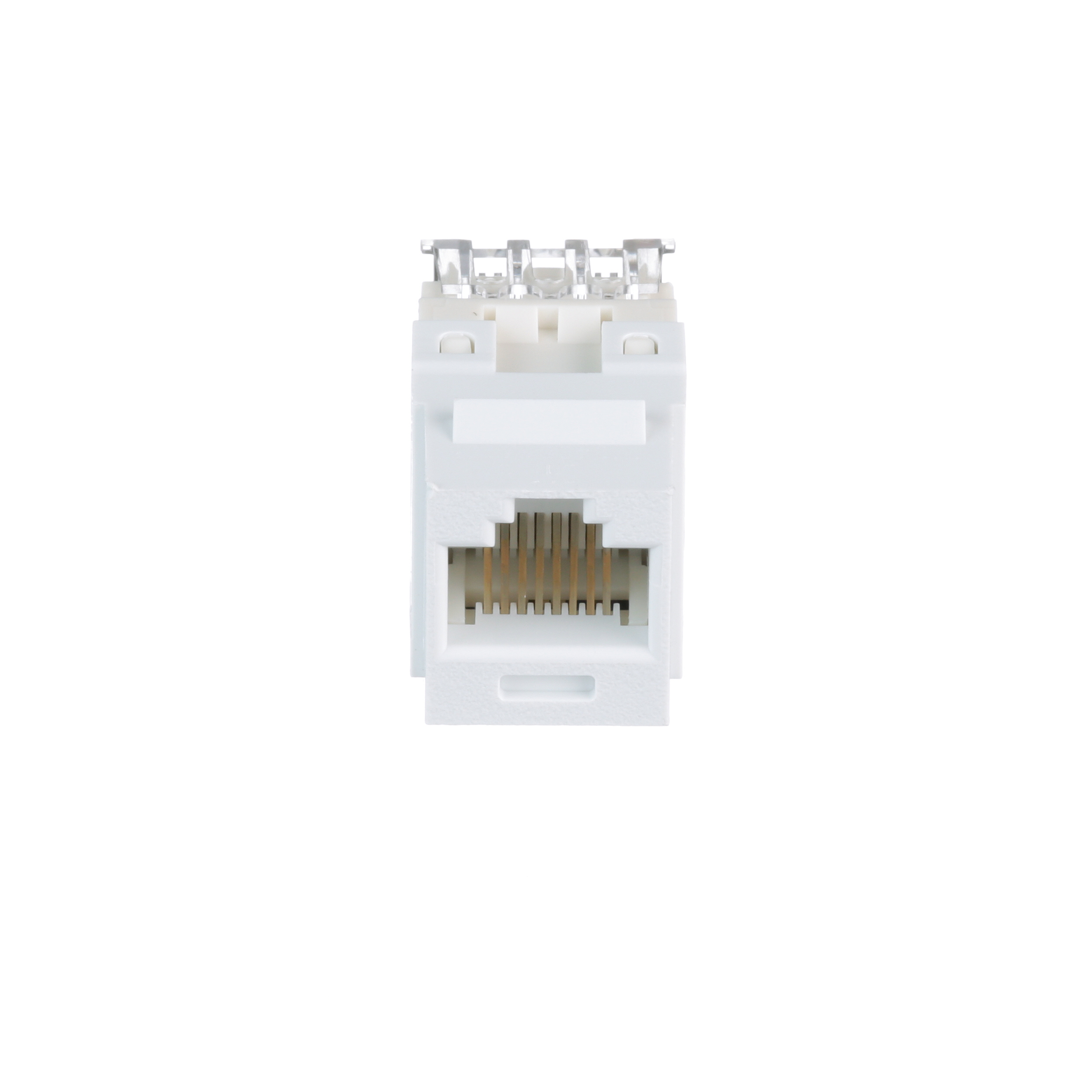

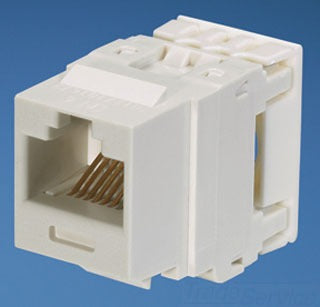

The NetKey NK688MWH is a PANDUIT Corporation UTP jack module designed for data communication applications. This module offers a punchdown style termination suitable for various environmental conditions.

• Compatible with Category 6 performance standards.
• Designed with a polycarbonate body for durability and longevity.
• Supports both T568A and T568B wiring schemes.

Product Highlights

Efficient for network installations, ideal in commercial or residential setups.

Product Information

Standard Information

• Brand: NetKey
• UPC: 07498357474

Technical Specifications

• Connector Type: Jack Module - Standard
• Product Type: Jack Module
• Performance Level: Category 6
• Body Material: Polycarbonate
• Wiring Scheme: T568A/T568B
• Overall Depth: 1.16 inches
• Overall Height: 0.9 inches
• Overall Width: 0.65 inches
• Maximum Operating Temperature: 75 °C
• Minimum Operating Temperature: -10 °C
• Shield Type: Unshielded (UTP)
• Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 requirements
