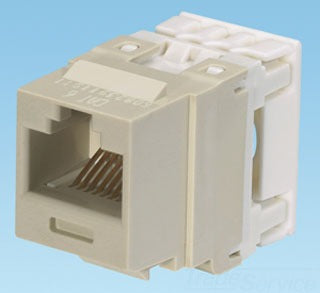

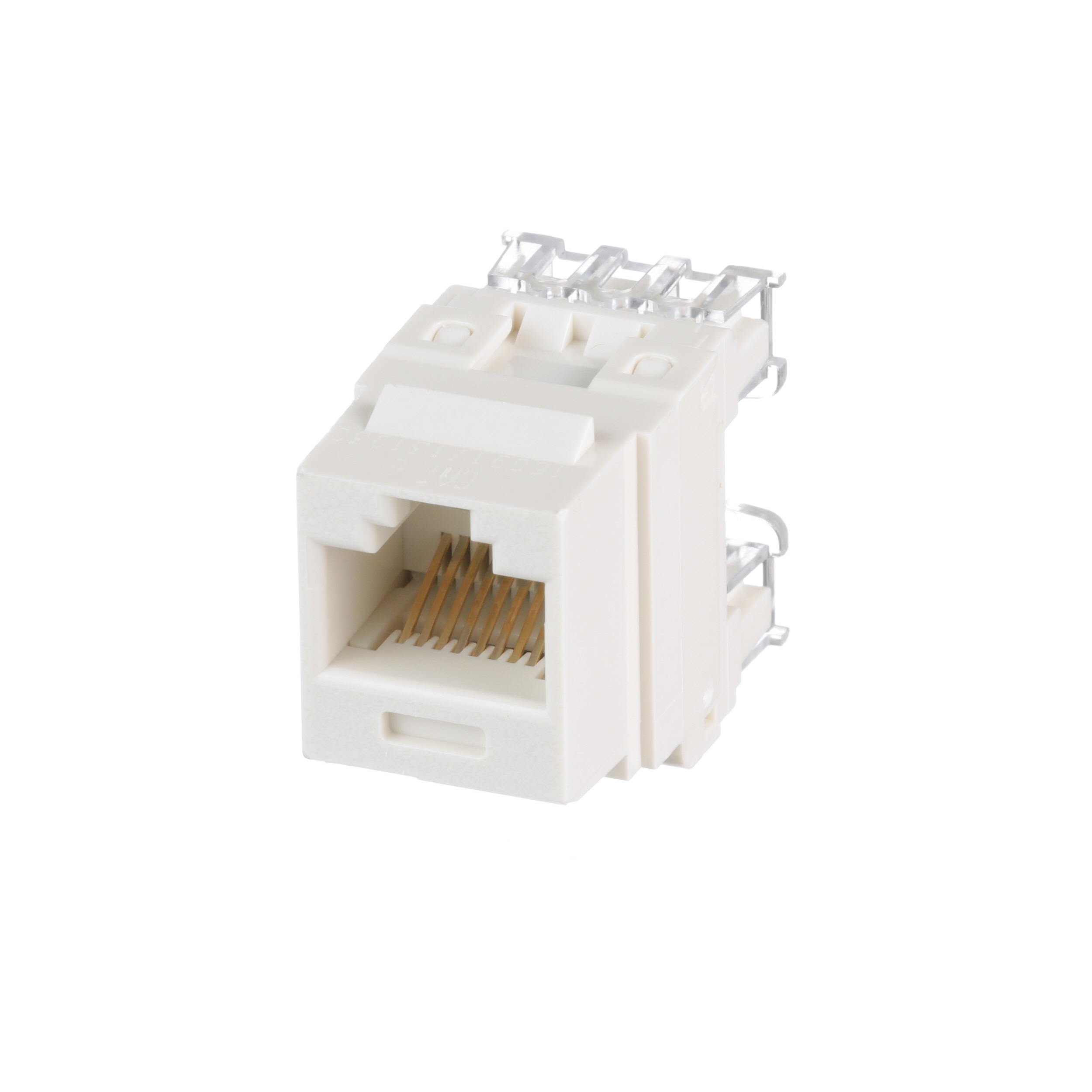

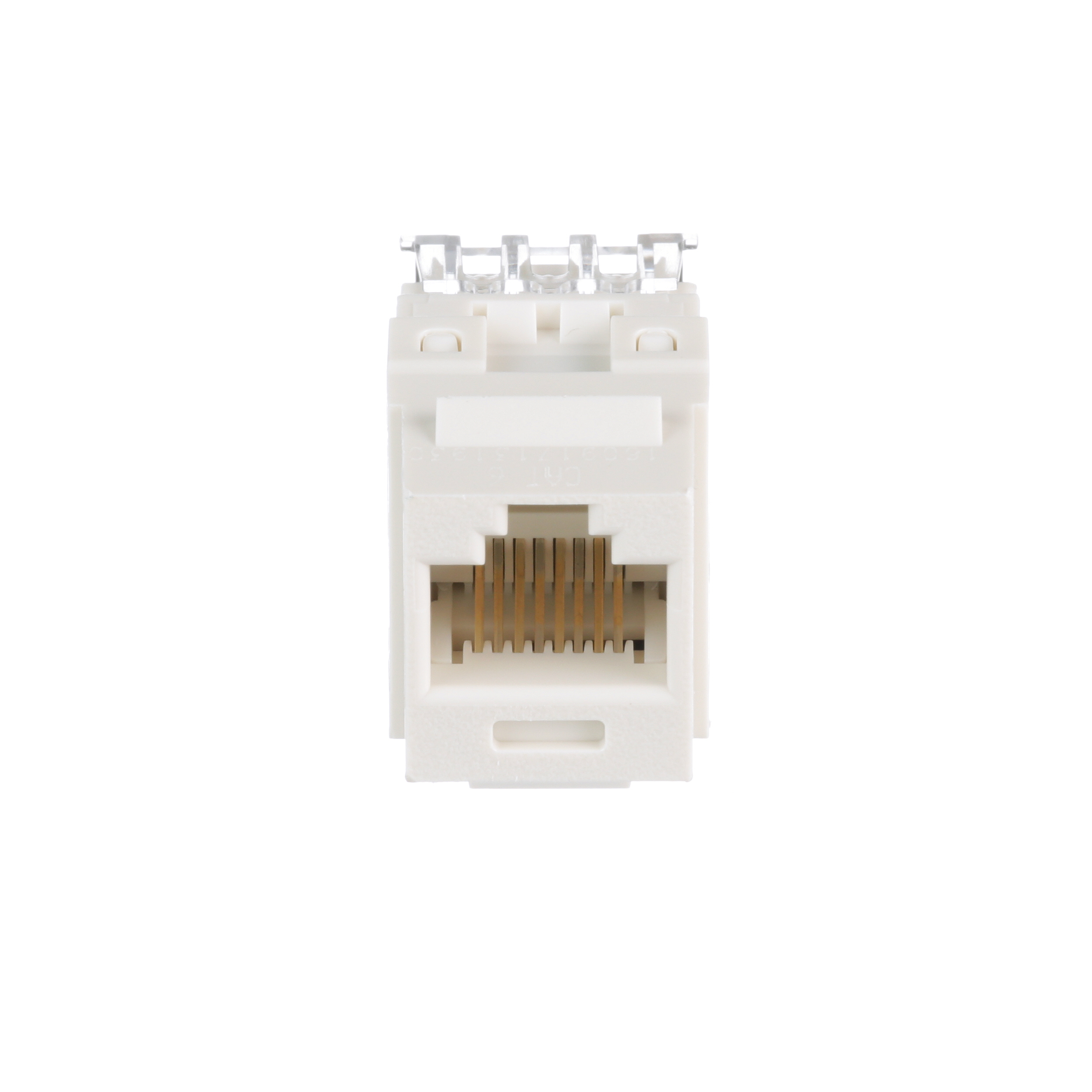

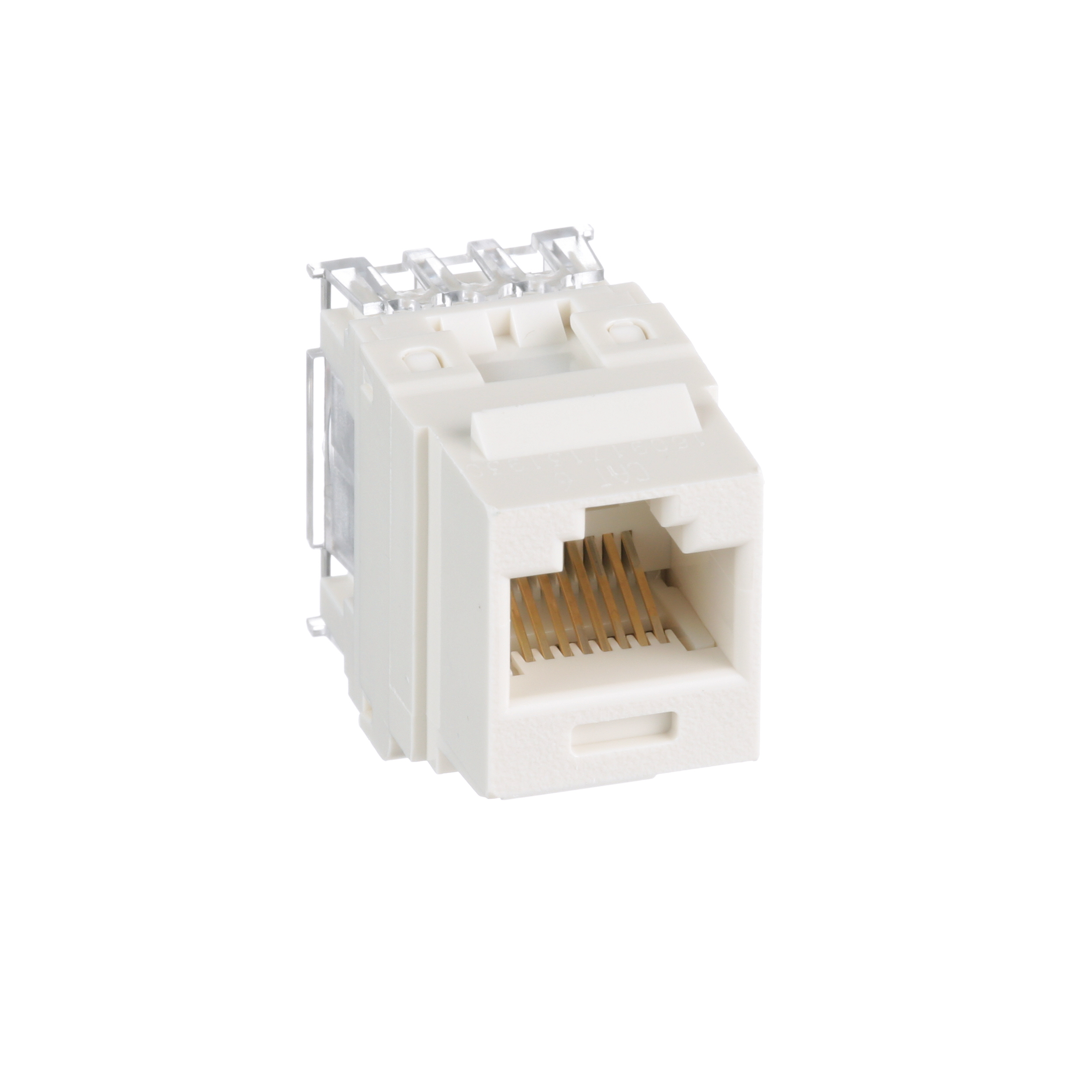

NetKey NK688MIW PAND NK688MIW 8POS/8WR JCK MODULE

Product Description

The NetKey NK688MIW is a jack module produced by Panduit Corporation. This product is designed for data communication needs, specifically utilizing unshielded twisted pair (UTP) technology.

• Category 6 performance level
• Punchdown style termination for easy installation
• Compatible with T568A and T568B wiring schemes

Product Highlights

The NK688MIW jack module supports both residential and commercial applications. Utilize it for networking needs or as a part of a larger cabling structure.

Product Information

Standard Information

• Manufacturer: NetKey
• Color: Off White

Technical Specifications

• Product Segment: EDI-ENT
• Product Type: Jack Module
• Performance Level: Category 6
• Module Type: Keystone
• Connector Type: Jack Module - Standard
• Body Material: Polycarbonate
• Contact Material: Plated Phosphor Bronze
• Termination Style: Punchdown
• Wiring Scheme: T568A/T568B
• Shield Type: Unshielded (UTP)
• Maximum Operating Temperature (°F): 167
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°F): 167
• Minimum Storage Temperature (°F): -40
• Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 requirements
