NetKey NK688MBL 8POS/8WR JCK MODULE

Product Description

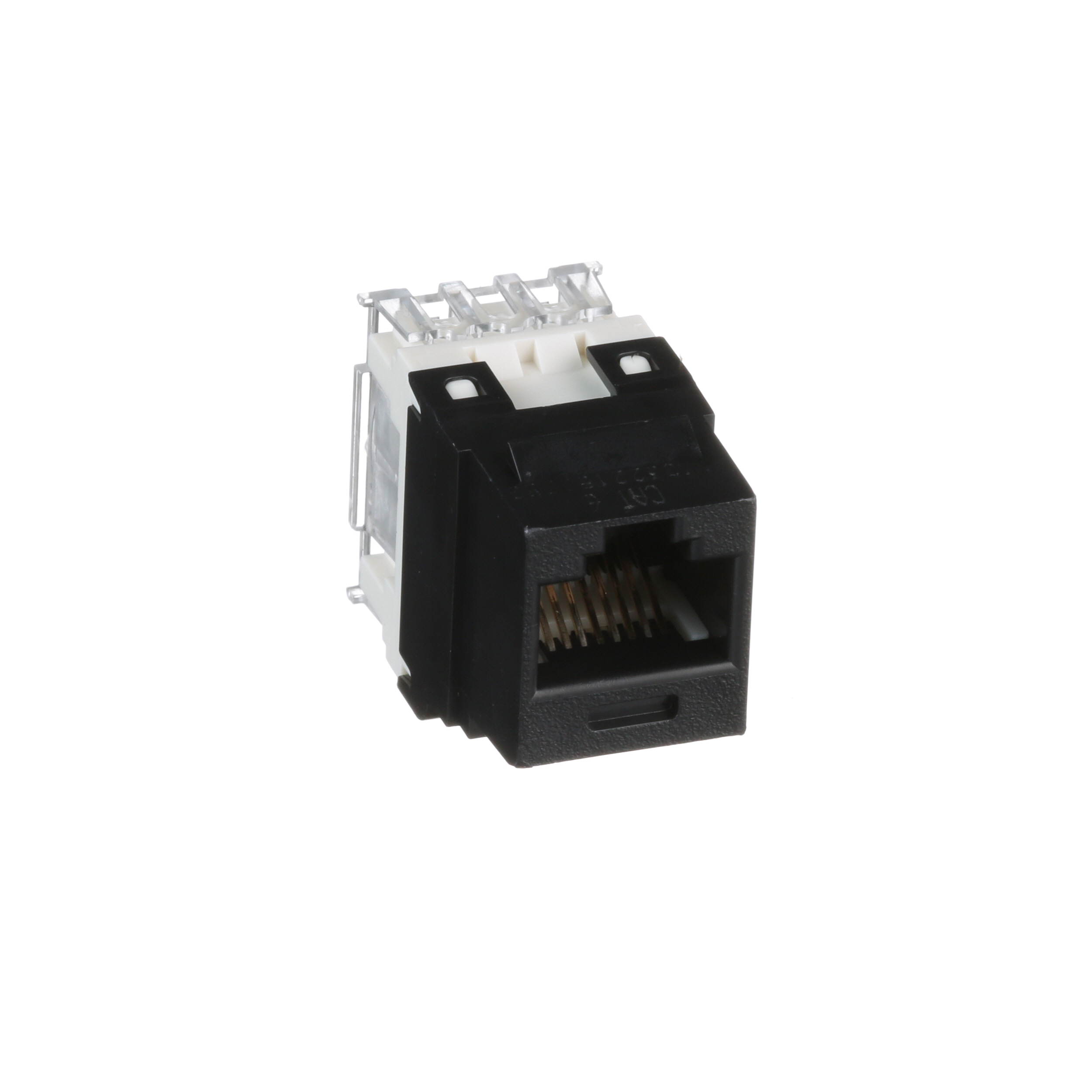

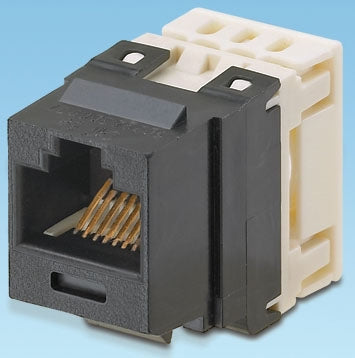

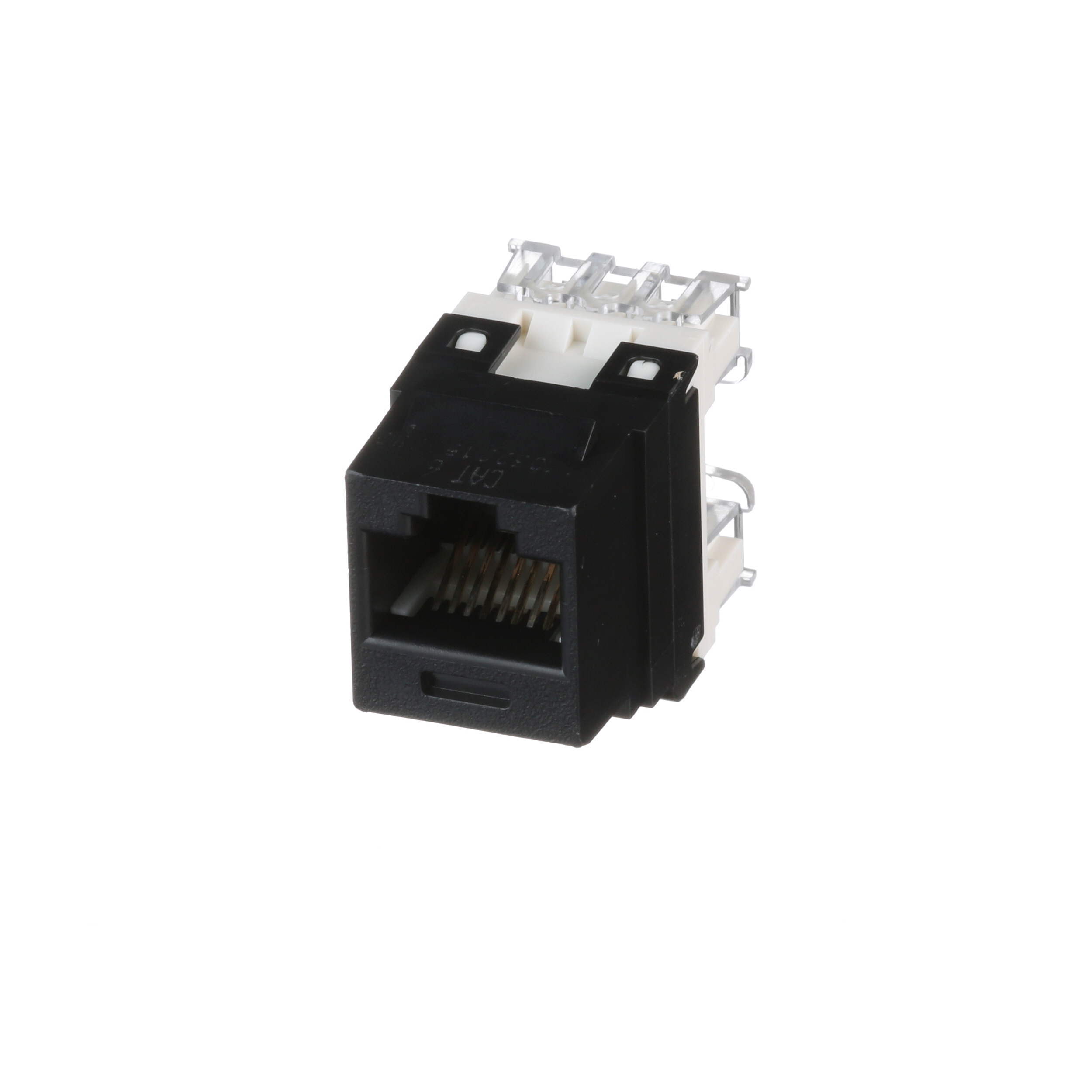

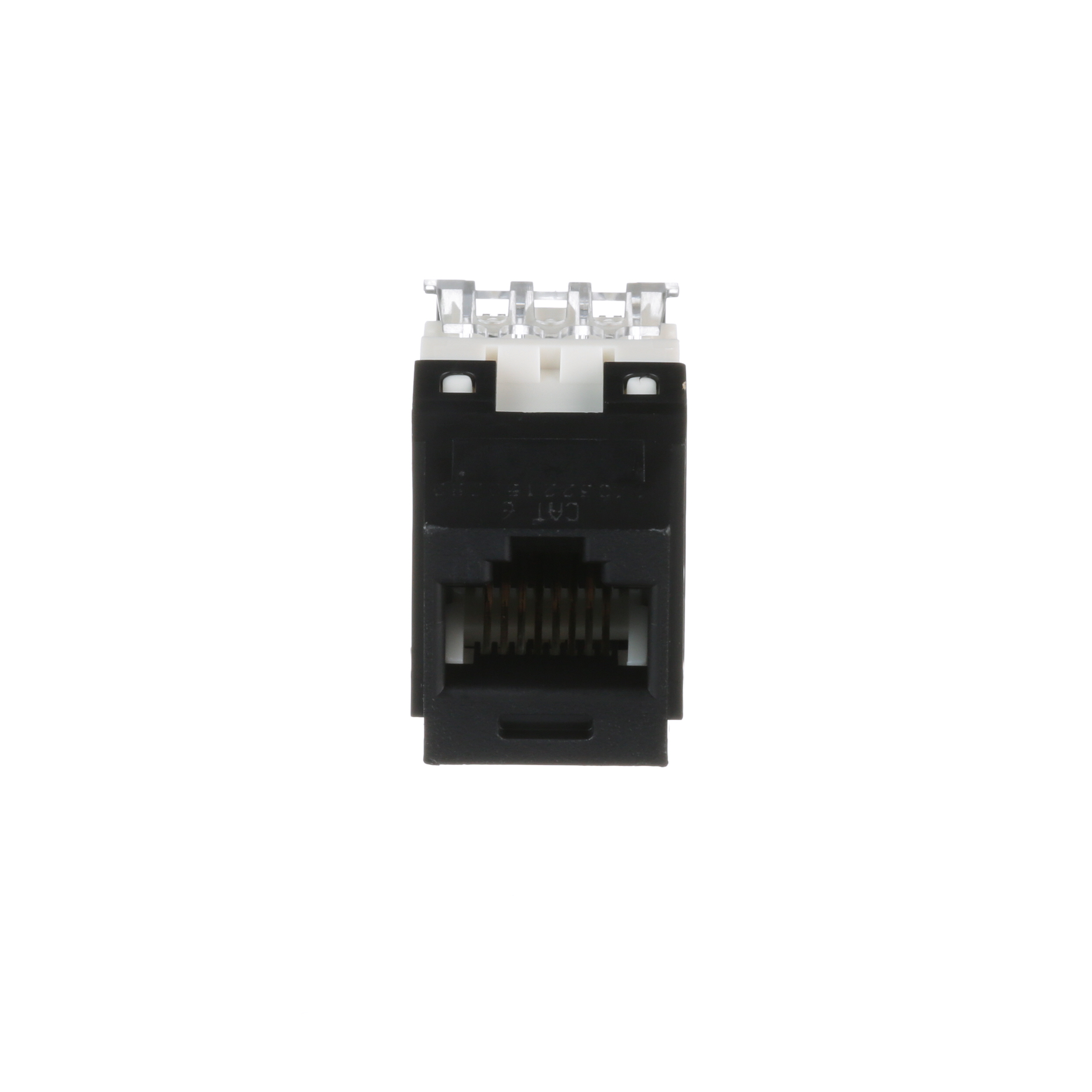

The NetKey NK688MBL is an eight-position, eight-wire jack module designed by Panduit Corporation. This UTP jack module features a punchdown style termination, allowing for easy installation and secure connectivity in data and communication applications.

• Supports Category 6 performance level
• Features unshielded twisted pair (UTP) design
• Compatible with wiring schemes T568A and T568B

Product Highlights

The NK688MBL jack module is built for robust performance and easy integration. It works well with standard data communication setups, ensuring reliable connections.

Product Information

Standard Information

• Manufacturer: NetKey
• UPC: 07498357470

Technical Specifications

• Product Segment: EDI-ENT
• Product Type: Jack Module
• Performance Level: Category 6
• Connector Type: Jack Module - Standard
• Termination Style: Punchdown
• Body Material: Polycarbonate
• Contact Material: Plated Phosphor Bronze
• Wiring Scheme: T568A/T568B
• Color: Black
• Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 standards
• Maximum Operating Temperature: 75°C (167°F)
• Minimum Operating Temperature: -10°C (14°F)
• Overall Dimensions: 1.16 inches depth, 0.9 inches height, 0.65 inches width
