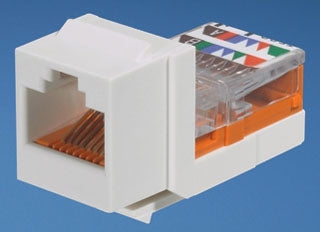

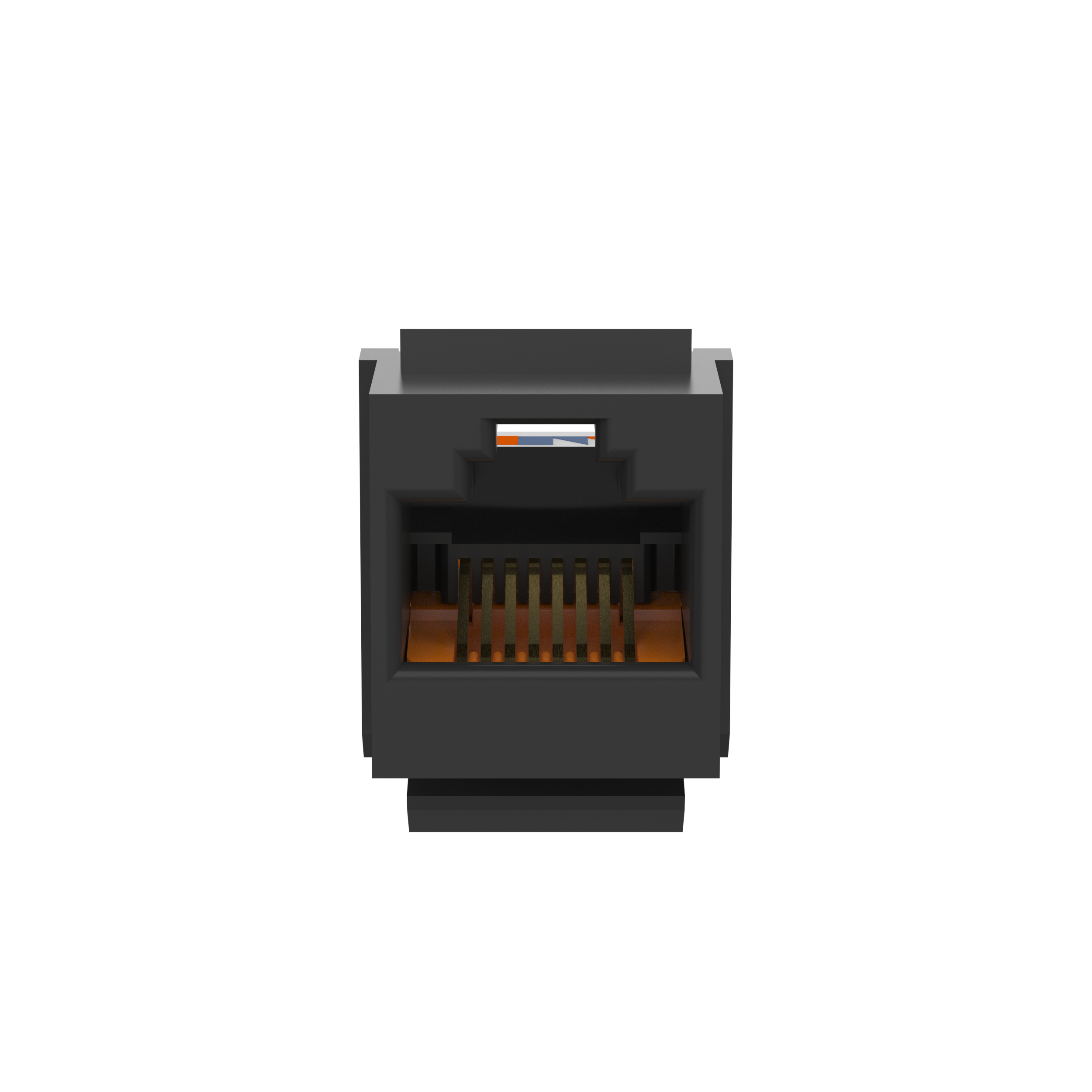

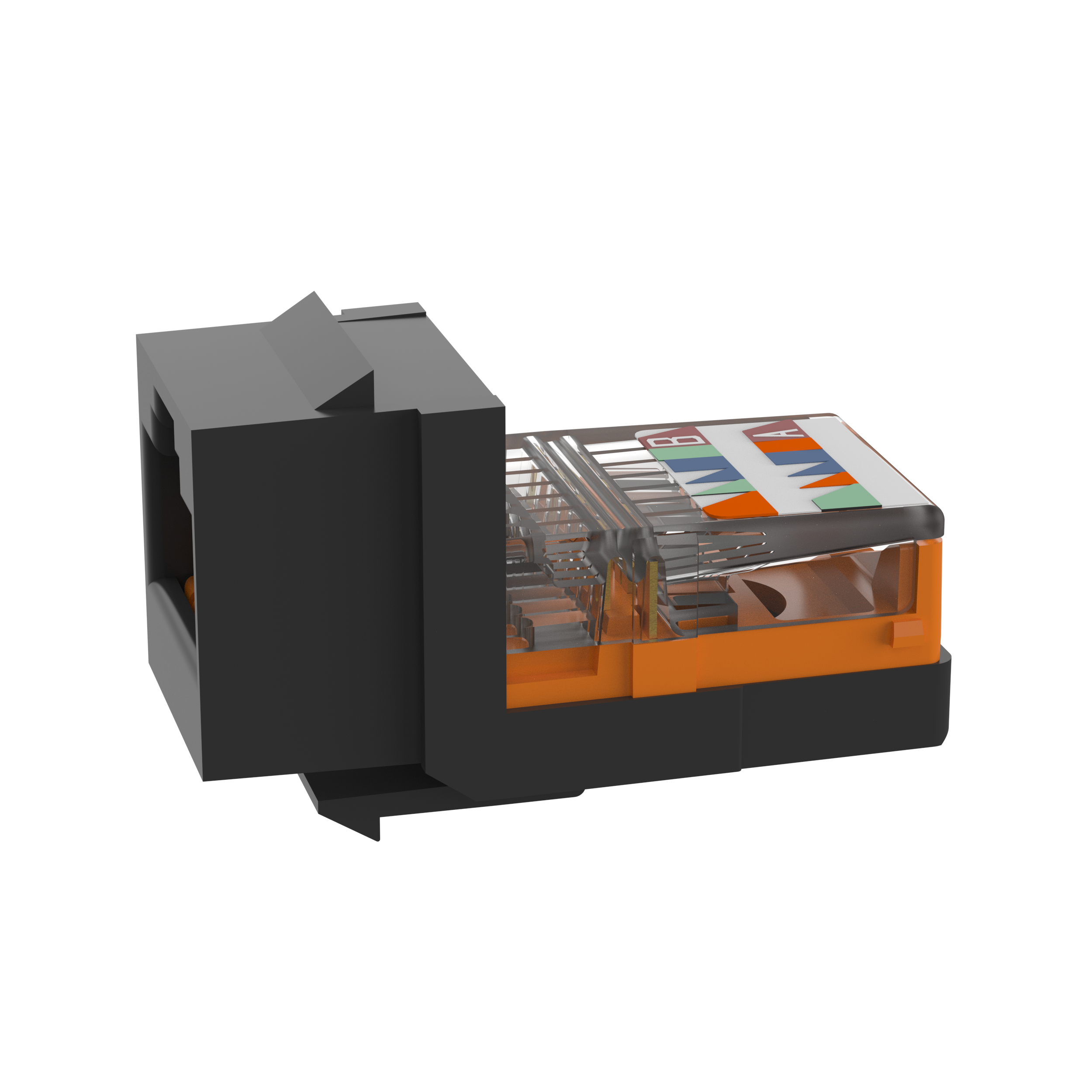

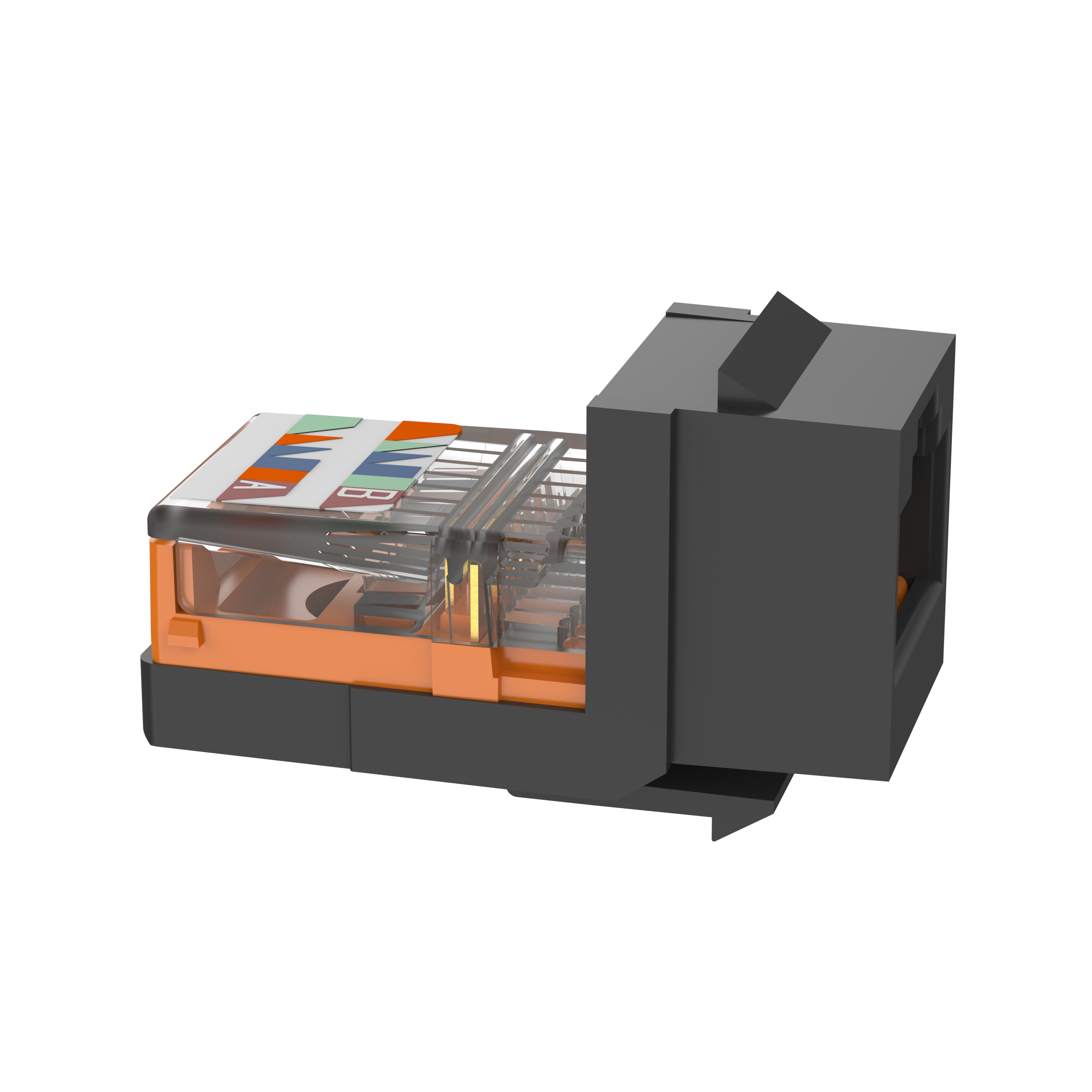

NetKey NK5E88MBLY PAND NK5E88MBLY 8POS CAT5E JCK MOD

Product Description

The NetKey NK5E88MBLY is a UTP jack module designed for reliable data transmission in networking applications. It is manufactured by Panduit Corporation, a recognized leader in network connectivity solutions. This module is ideal for various commercial and industrial installations.

• Category 5e performance level for high-speed network connections.
• Compatible with both T568A and T568B wiring schemes.
• Body made from durable ABS and Polycarbonate materials.

Product Highlights

This jack module excels in providing robust connectivity while meeting industry standards.

Product Information

Standard Information

• Manufacturer: NetKey
• UPC: 07498305497

Technical Specifications

• Product Segment: EDI-ENT
• Note: Leadframe style jack
• Product Type: Jack Module
• Performance Level: Category 5e
• Connector Type: Jack Module - Standard
• Termination Style: Leadframe
• Body Material: ABS/Polycarbonate
• Contact Material: Plated Phosphor Bronze
• Module Type: Keystone
• Wiring Scheme: T568A/T568B
• Shield Type: Unshielded (UTP)
• Sub Brand: NetKey
• Maximum Operating Temperature: 65 °C
• Minimum Operating Temperature: -10 °C
• Maximum Storage Temperature: 70 °C
• Minimum Storage Temperature: -40 °C
• Overall Depth: 1.37 inches
• Overall Height: 0.87 inches
• Overall Length: 1.37 inches
• Overall Width: 0.65 inches
