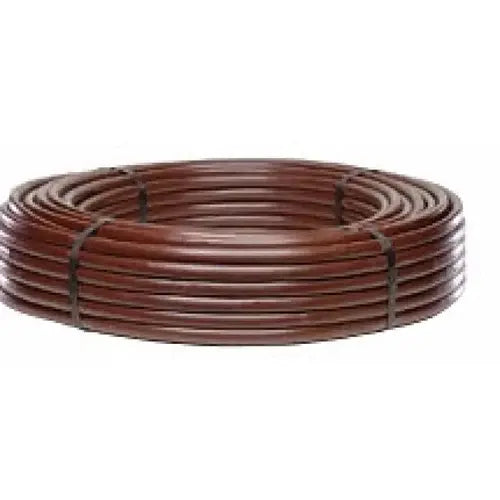

Netafim tlcv9-12025 Techline Cv Dripline 0.9 Gph 12 in

Product Description

The NETAFIM tlcv9-12025 is a pressure-compensating drip irrigation dripline designed for consistent, uniform water delivery across varying terrain and long runs. Built on the Techline CV 17mm platform, this dripline features check-valve (CV) emitters spaced 12 inches apart and a factory flow rate of 0.9 gallons per hour (GPH) per emitter. The 250-foot coil format is suited for professional landscape and agricultural irrigation installations. Licensed irrigators and landscape contractors are the primary installers of this product in both residential and light commercial applications.

This dripline is used in subsurface and surface drip irrigation systems where pressure-compensating output is required to maintain consistent flow rates regardless of elevation changes or pressure fluctuations along the line. The 12-inch emitter spacing and 0.9 GPH output are well-matched for row crops, shrub beds, and ground cover zones. The 17mm tubing diameter is compatible with standard 17mm fittings, stakes, and compression connectors commonly used in professional drip system assemblies.

Key Features

• Pressure-compensating check-valve emitters maintain consistent 0.9 GPH output across varying line pressures
• 12-inch emitter spacing for uniform water distribution in dense planting zones
• 17mm tubing diameter works with standard drip fittings and accessories
• 250-foot coil reduces splice points and simplifies layout on long runs
• Check-valve design prevents low-point drainage when system is shut off

Compatibility

Designed for use with standard 17mm drip irrigation fittings, manifolds, and compression connectors in professional landscape and agricultural drip irrigation systems.

Installation Notes

Installation should be performed by a licensed irrigator or qualified landscape contractor in accordance with local irrigation codes and water authority requirements. Flush the mainline before connecting dripline to prevent debris from clogging emitters. Confirm that system operating pressure falls within the rated range for pressure-compensating emitters before pressurizing the zone. Use manufacturer-approved 17mm fittings and end caps to complete the circuit and prevent blowouts.

Technical Specifications

• Flow Rate: 0.9 GPH per emitter
• Emitter Spacing: 12 inches
• Tubing Diameter: 17mm
• Coil Length: 250 feet
• Emitter Type: Pressure-Compensating Check Valve (CV)
• Package Dimensions: 23 inches x 23 inches x 5 inches

Standard Information

• Brand: NETAFIM
• Manufacturer Part Number: tlcv9-12025
