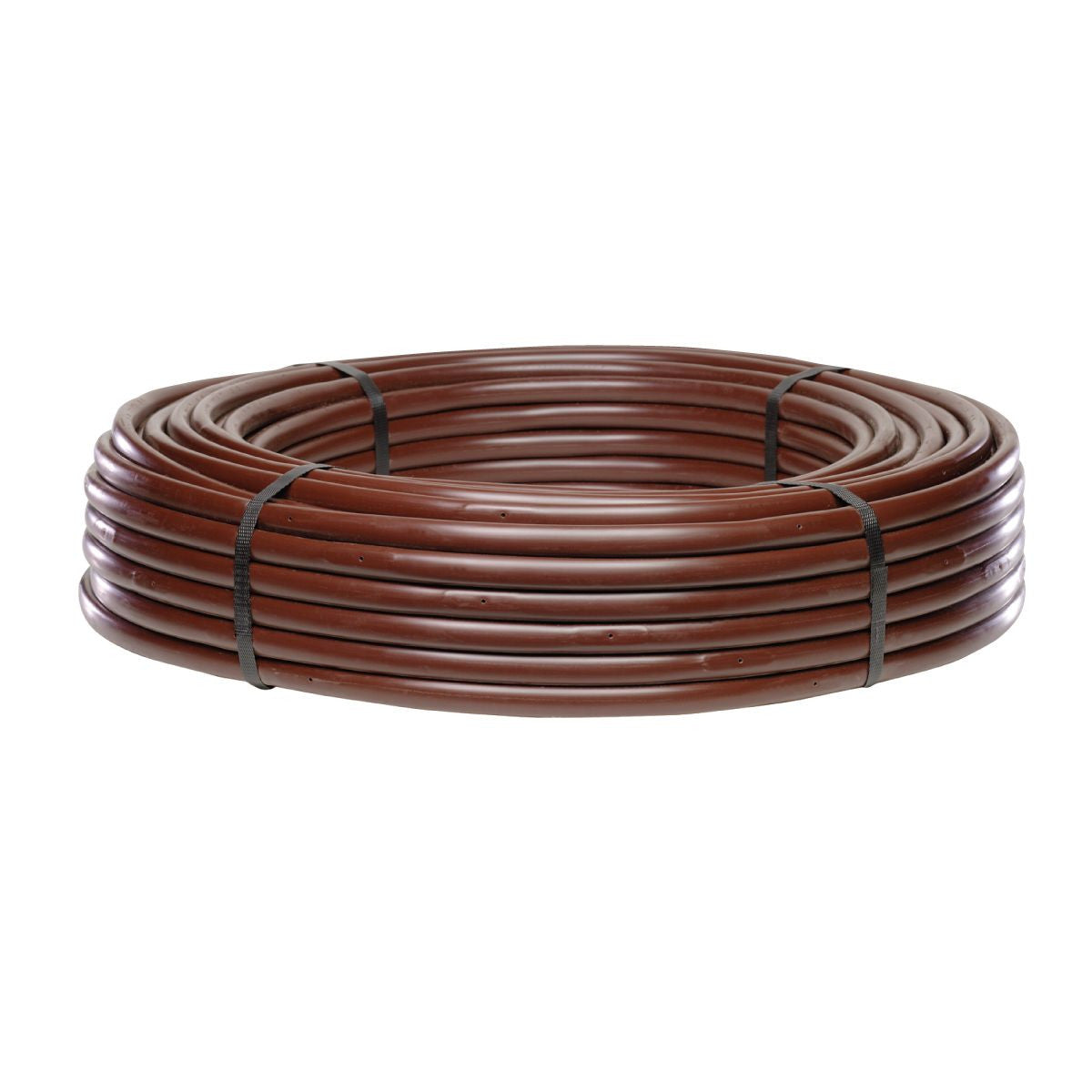

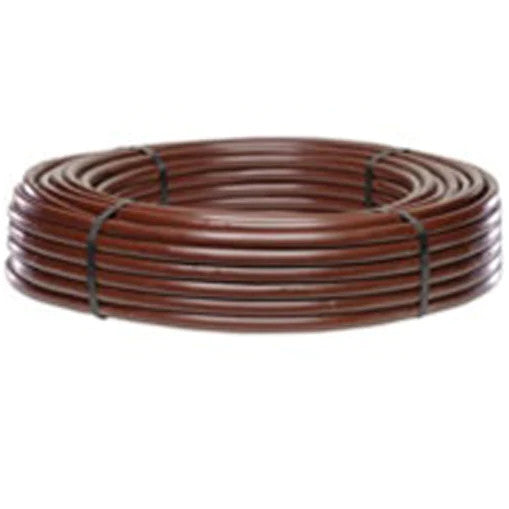

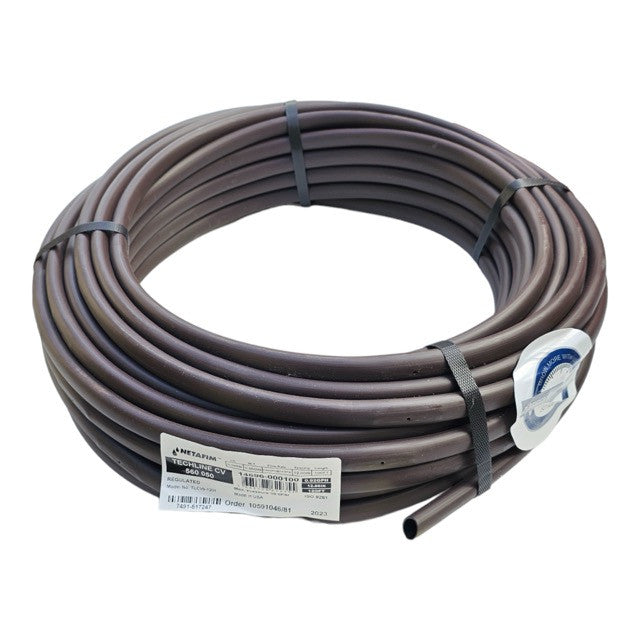

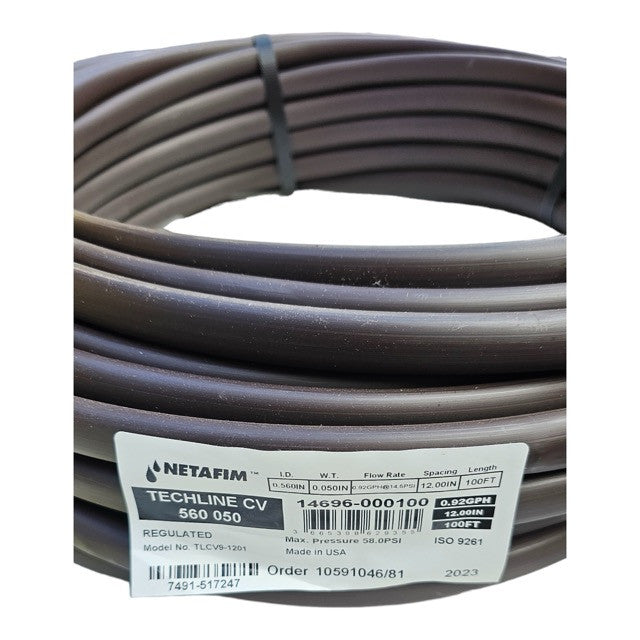

Netafim 14696-000100 Techline CV Series Dripline 0.9 GPH 12 inch emitter spacing 100 foot coil

Product Description

The NETAFIM 14696-000100 Techline CV Series Dripline is a drip irrigation solution designed for precise watering. This 100-foot dripline features a 0.56 inch inside diameter, 0.66 inch outside diameter, and 12 inch hole spacing. Operating between 14.5 to 58 psi, it delivers consistent water amounts. Its unique emitter design includes a physical root barrier and an anti-siphon feature, preventing debris ingestion for reliable subsurface and on-surface installations.

• Integrated 2 psi check valve ensures balanced application and prevents low emitter drainage, suitable for slopes.

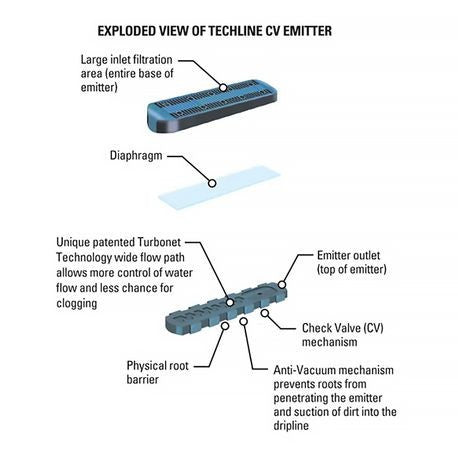

• Patented emitter design incorporates a physical root barrier for enhanced durability.
• Continuously flushes debris during operation, ensuring uninterrupted emitter function.

Product Highlights

Designed for precise, uniform watering on slopes and sub-surface installations, featuring clog-free operation and root intrusion defense.

Product Information

Standard Information

• Brand: NETAFIM
• Manufacturer Part Number: 14696-000100

Technical Specifications

• Emitter Spacing: 12 inches
• Inside Diameter: 0.56 in
• Length: 100 ft
• Outside Diameter: 0.66 in
• Operating Pressure Range: 14.5 to 58 psi
• Series: Techline CV Series
• Model: Tlcv9-1201
• Emitter Flow Rate: 0.9 GPH
• Type: Drip | Micro | Low Volume
• Total Flow Rate: 92 GPH per 100-foot roll
• Check Valve Operation: Opens at 14.5 PSI | Shuts off at 2 PSI (Holds back 4.6' of head)
• Root Intrusion Defense: Physical Root Barrier
• Minimum Bending Radius: 7 Inches
• Required Filtration: 120 Mesh Minimum
