NETAFIM Netafim 14696-000097 Techline CV 0.6 GPH (100 ft Coil)
NETAFIM Netafim 14696-000097 Techline CV 0.6 GPH (100 ft Coil)

Netafim 14696-000097 Techline CV 0.6 GPH (100 ft Coil)

Brand: NETAFIM
SKU: 14696-000097
Availability: In Stock

Ships same day if ordered by 12 pm

$70.64
$70.64
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

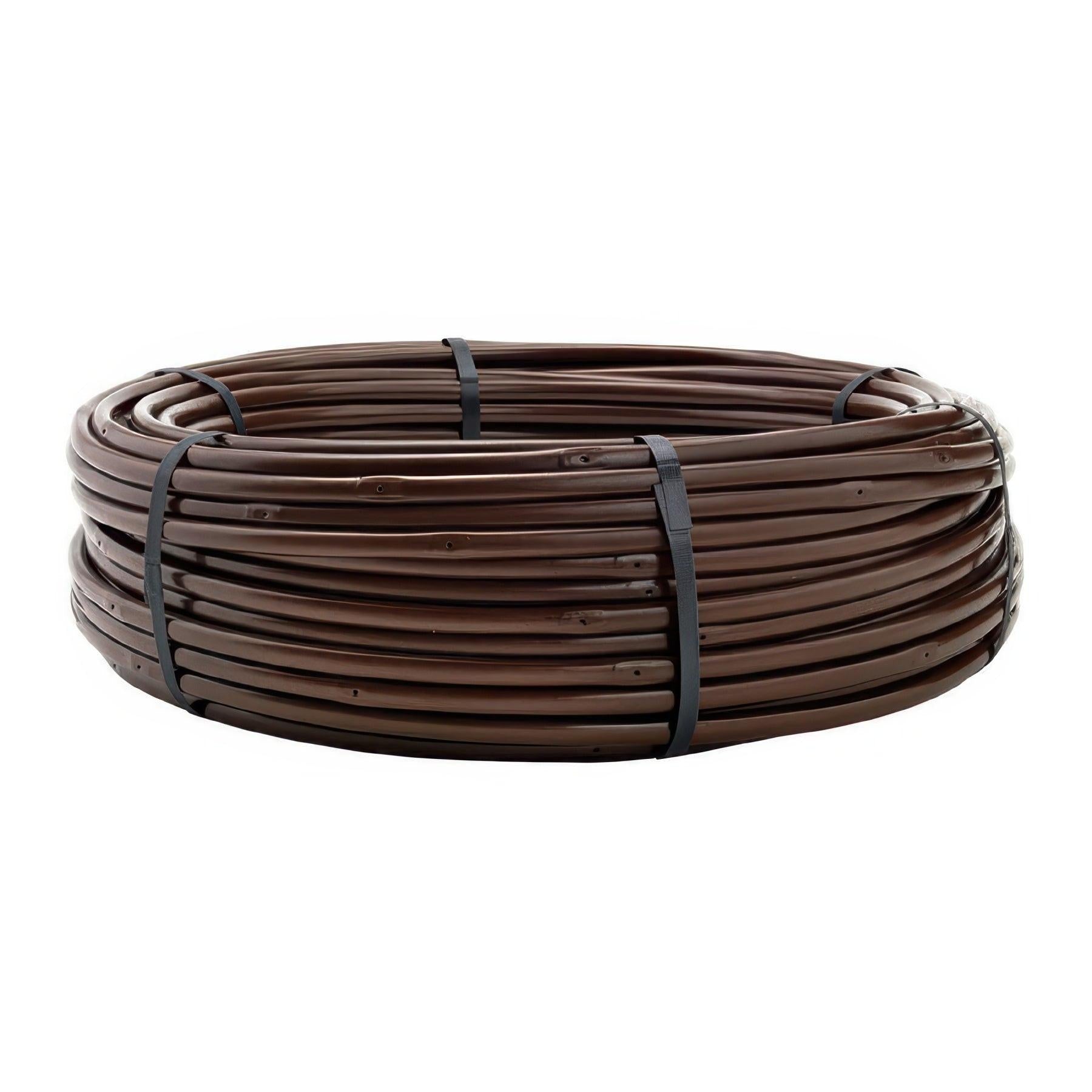

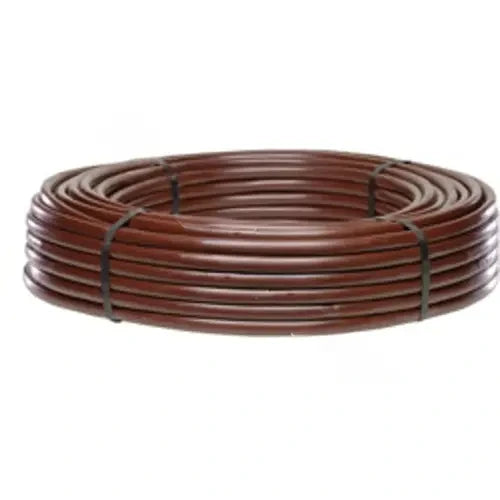

Netafim 14696-000097 Techline CV dripline is a 17 mm diameter, 100-foot coil with emitters spaced at 12 inches and approximately 0.6 GPH per emitter. The dripline uses pressure-compensating, continuous self-flushing emitters and includes a built-in check valve to prevent low-point drainage. It is constructed from post-consumer recycled polyethylene and is suitable for on-surface or subsurface low-volume drip irrigation for turf, shrubs, trees, and planters.

  • 17 mm tubing with emitters spaced 12 inches on center and ~0.6 GPH per emitter
  • Pressure-compensating, continuous self-flushing emitters with built-in check valve
  • 100 foot coil constructed from post-consumer recycled polyethylene; 7 in bending radius

Product Highlights

Techline CV dripline, 17 mm OD, 12 in emitter spacing, ~0.6 GPH emitters, 100 ft coil; pressure-compensating and self-flushing emitters with check valve.

Product Information

Standard Information

  • Brand: NETAFIM
  • Manufacturer Part Number: 14696-000097
Technical Specifications
Brand
NETAFIM
Manufacturer Part Number
14696-000097
Model
Techline CV (CV .6 GPH)
Emitter spacing
12 inches
Emitter flow rate
0.6 GPH (approx.)
Length
100 feet (coil)
Tube diameter
17 mm (0.66 in OD)
Tubing inner diameter
0.56 in ID
Tubing wall thickness
0.050 in
Bending radius
7 in.
Material
Post-consumer recycled polyethylene
Emitter type
Pressure-compensating, continuous self-flushing
Check valve
Built-in check valve to prevent low-point drainage and keep line primed
Operating pressure range
14.5 to 58 psi
Minimum system pressure
14 psi
Maximum system pressure
58 psi
Minimum filtration
120 mesh
Diaphragm material
Silicon
ISO compliance
ISO 9261
UL Listed
No
ETL Listed
No
Each product weight
3.85 lb
UPC
7291015478806
P65 Warning
This product may contain chemicals known to the State of California to cause cancer and reproductive harm
