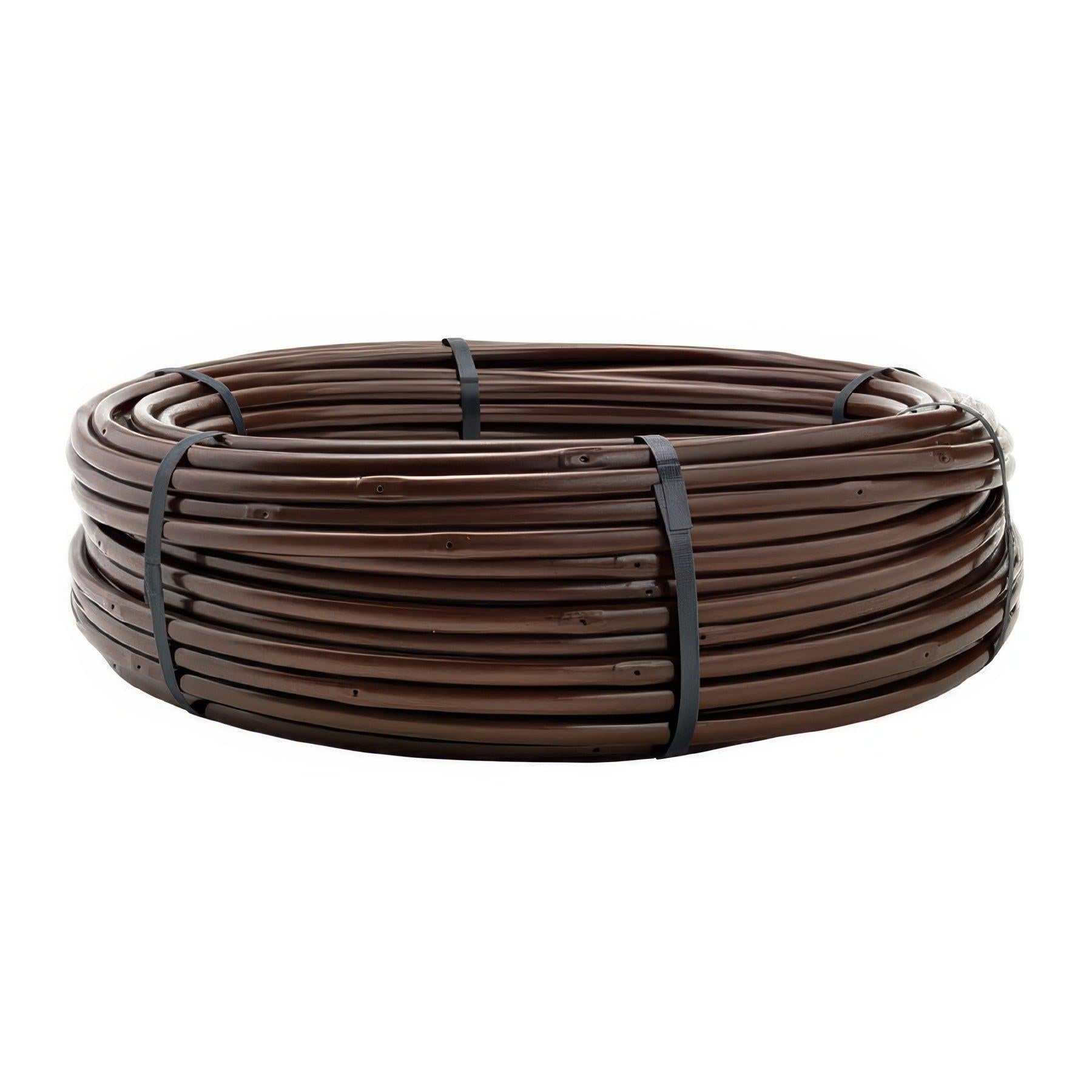

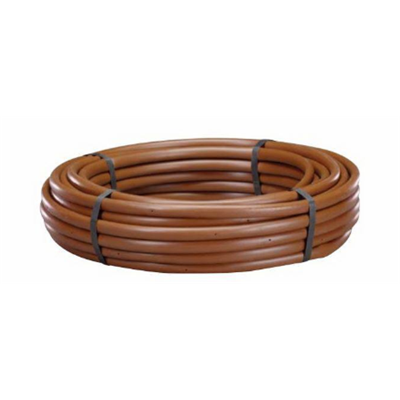

Netafim 14696-000086 Tlcv9-12025 Techline CV Dripline .9 GPH 12 Inch 250 Foot Coil

Product Description

The NETAFIM 14696-000086 Tlcv9-12025 Techline CV Dripline is designed for efficient irrigation, featuring a 0.92 GPH flow rate and 12-inch emitter spacing. This dripline is manufactured with post-consumer recycled polyethylene and includes a check valve to prevent water drainage after zone shutdown. It is suitable for coarse sandy soils and high-infiltration-rate applications, ensuring consistent water delivery across an operating pressure range of 14.5 to 58 psi. The tubing has a 0.66-inch outer diameter and a 250-foot coil length.

• Made with post-consumer recycled material for environmental consideration.
• Unique patented emitter design incorporates a physical root barrier.
• Pressure compensating emitters deliver precise and equal amounts of water over a broad pressure range.

Product Highlights

The Techline CV Dripline features a check valve to prevent drainage, a physical root barrier, and continuous self-flushing emitters for reliable, uniform irrigation.

Product Information

Standard Information

• Brand: NETAFIM
• Manufacturer Part Number: 14696-000086

Technical Specifications

• Department: IRRIGATION
• Brand: Netafim
• Model: TLCV9-12025
• SKU: NET-58-1084
• UPC: 3661734858212
• Irrigation Part Type: Dripline
• Dripline Type: Techline® CV
• Drip Sub-Category: Drip Lines
• Flow Rate: 0.92 GPH
• Emitter Spacing: 12 in.
• Coil Length: 250 ft.
• Tubing Diameter: 0.56 in (ID) x 0.66 in (OD)
• Tubing Wall Thickness: 0.050 inches
• Operating Pressure Range: 14.5–58 PSI (check valve opens at 14.7 PSI, closes at 2 PSI)
• Bending Radius: 7 inches
• Minimum Filtration: 120 mesh
• Diaphragm Material: Silicon
• Material: Post-consumer recycled polyethylene
• Check Valve: Holds line primed; prevents low-point drainage after zone shutdown
• Root Barrier: Patented physical design — no chemicals required
• Emitter Design: Pressure-compensating, continuous self-flushing (Turbonet technology)
• Best For: Coarse sandy soils, high-infiltration-rate conditions, thirsty established plantings — zone separately from lower-flow Techline CV lines
• ISO Standard Compliance: ISO 9261
• Prop 65: false
• Hazardous Material: false
• UL Listed: No
• ETL Listed: No
• Product Code: 1481
• Pack Size: 250' Roll-1
