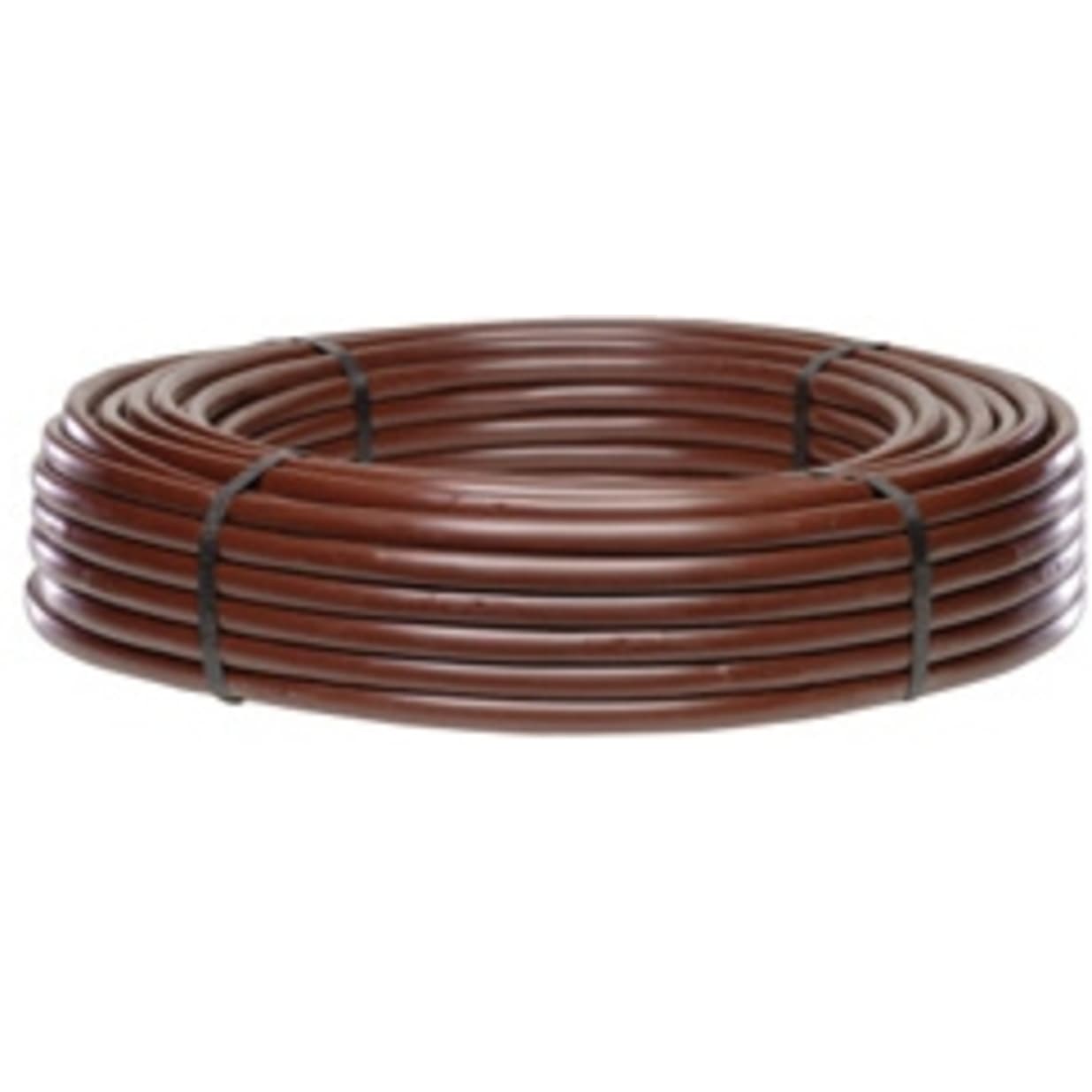

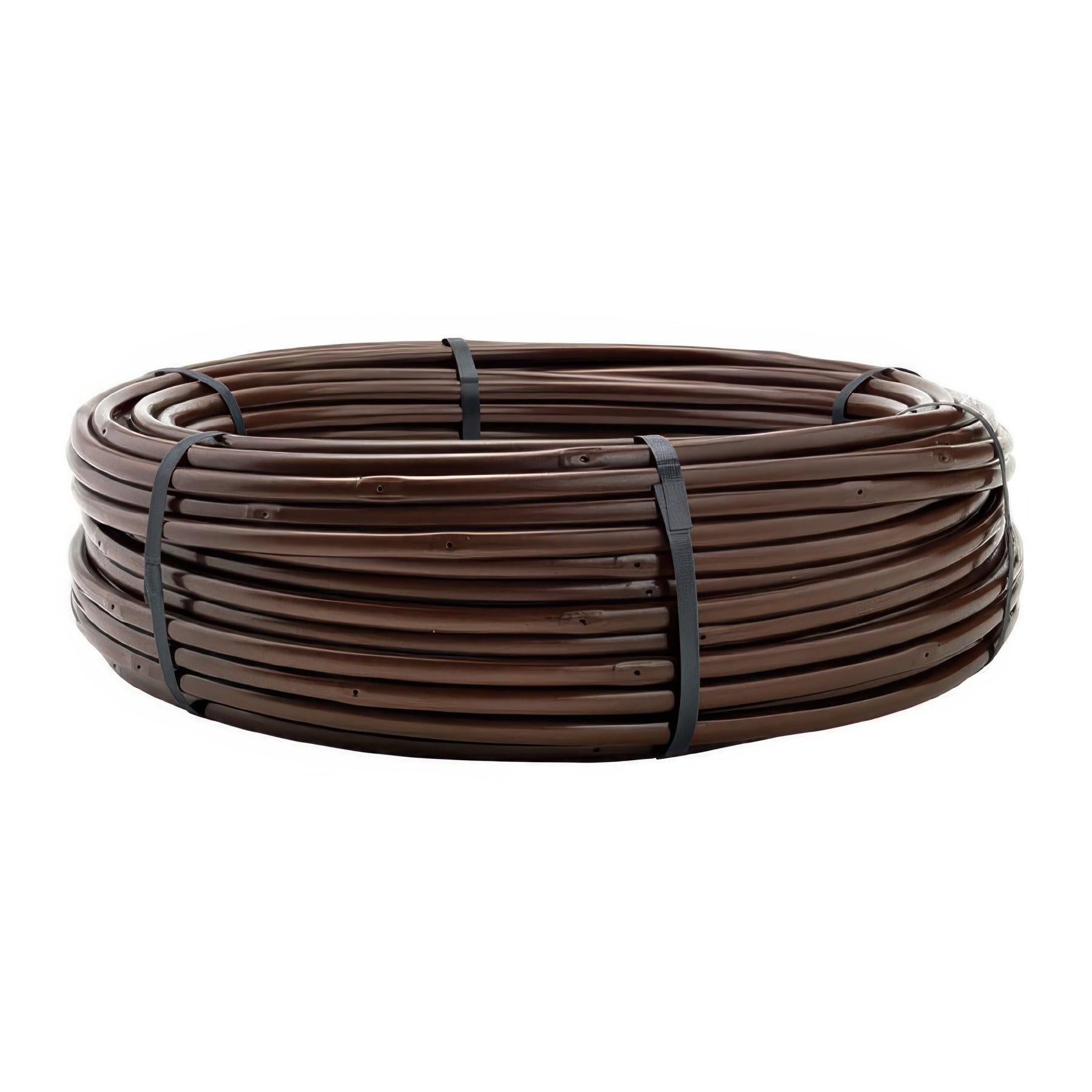

Netafim 14696-000082 Techline CV Dripline .61 GPH Flow 250ft 18 inches Emitter Spacing

Product Description

The NETAFIM 14696-000082 Techline CV Dripline is a 250-foot polyethylene dripline featuring a .61 GPH flow rate and 18-inch emitter spacing. This dripline is engineered for efficient irrigation, incorporating a 2 psi check valve in each emitter for balanced application and preventing low emitter drainage, making it suitable for sloped terrains. Its patented emitter design includes a physical root barrier to deter root intrusion. The system is pressure compensating, ensuring precise water delivery across varying pressures.

• 2 psi check valve in each emitter ensures balanced application and prevents low emitter drainage, suitable for slopes.
• Unique patented emitter design with physical root barrier prevents root intrusion without chemical reliance.
• Pressure compensating technology delivers precise and equal water amounts over a broad pressure range.

Product Highlights

Features a 2 psi check valve, patented root barrier emitter, and pressure compensating technology for efficient, precise irrigation.

Product Information

Standard Information

• Brand: NETAFIM
• Manufacturer Part Number: 14696-000082
• Country of Origin: United States

Technical Specifications

• Material: Polyethylene
• Packaging Type: Coil
• Coil Length: 250 ft.
• Emitter Spacing: 18 in.
• Flow Rate: 0.61 GPH
• Tubing Diameter: 0.66 in. OD; 0.56 in. ID; 0.050 in. wall
• Product Type: Techline CV Dripline
• Pressure Compensation Range: 14.5 to 58 psi
• Bending Radius: 7 in.
• Maximum System Pressure: 58 psi
• Minimum System Pressure: 14 psi
• Minimum Filtration: 120 mesh
• Diaphragm Material: silicon
• Standard Compliance: ISO 9261
