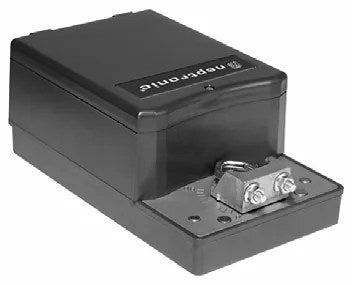

Neptronic TT000 T Series Low Voltage Actuators 180 in.lb 24V

Product Description

The Neptronic TT000 T Series low voltage actuator is built to provide strong torque of 180 in.lb and operates on a voltage of twenty-four. It is ideal for controlling dampers and works with a floating control input. This actuator can be easily coupled directly to a three quarters inch round or five eighths inch square jack shaft, or it can be mounted remotely with an optional adapter kit. All units feature bi-directional operation.

• Clutch for manual adjustments
• Maintenance-free design
• Position indicator for easy monitoring

Product Highlights

The TT000 actuator delivers dependable performance for damper control. Its floating input and bi-directional feature make installation straightforward.

Product Information

Standard Information

• Brand: Neptronic
• Item Number: TT000

Technical Specifications

• Actuator Type: Damper
• Control Input: Floating
• Torque: 180 in.lb
• Voltage: 24V
• Rotation Time: 60-85 seconds
• Power Required: 24 VAC or 30 VDC
• Spring Return: Non-spring return
• Nema Rating: Not-Nema rated
