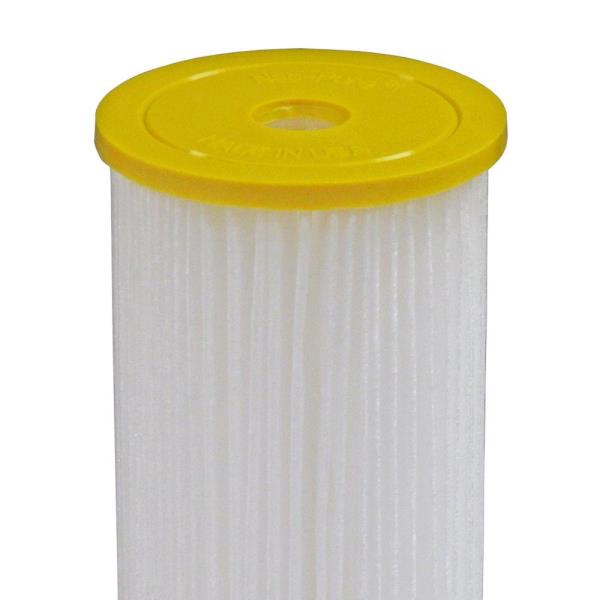

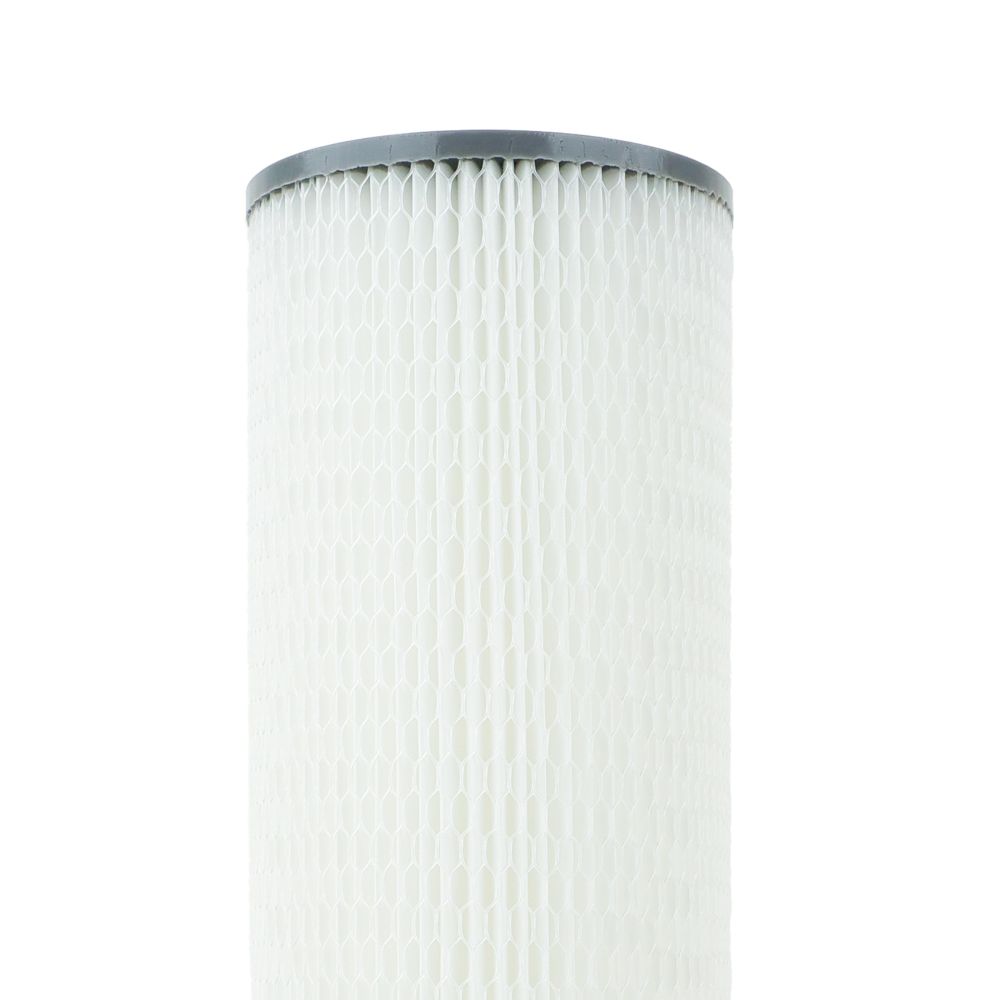

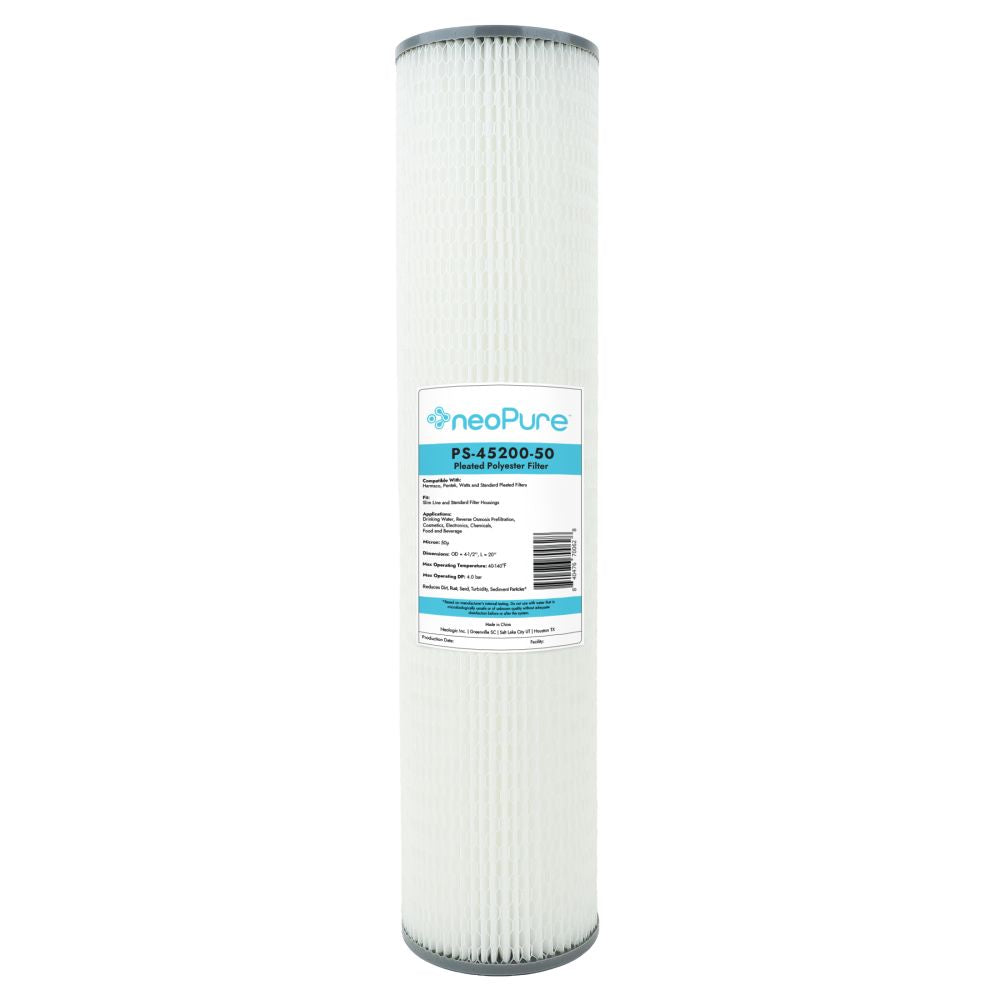

Neopure PS-45200-50 20 inches BB High Efficiency Pleated Filter 50 micron

Product Description

The neoPure PS-45200-50 High Efficiency Pleated Filter features 5 square feet of pleated polyester media wrapped around a polypropylene core for strength. It reduces sediment and offers chemical and bacterial resistance. Its pleated design provides high flow rates, low pressure drops, and increased dirt-holding capacity. Ideal as a reverse osmosis prefilter for residential, commercial, and industrial filtration.

• Reduces Sediment and Rust
• Perfect for Residential, Commercial and Industrial Filtration

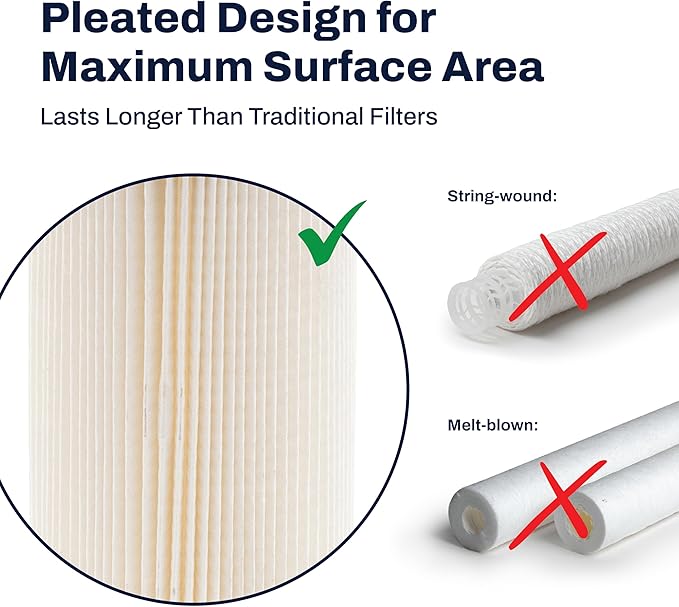

• Pleated Filter Design

Product Highlights

This filter is an economical choice that provides exceptional performance and high bacterial resistance.

Product Information

Standard Information

• Brand: neoPure
• Manufacturer Part Number: PS-45200-50
• Country of Origin: China

Technical Specifications

• Core Material: Polypropylene
• Max Temp (°F): 100°F
• Micron Rating (Absolute): 50
• Min Temp (°F): 40°F
• Outer Diameter: 4.5 in
• Psid@Flow Rate: < 1 psid typical
• Surface Area: 19 Square Feet
• Cap Material: Polypropylene
• Cartridge Style: Drop-in
• Contaminants Reduced: Sediment/Dirt/Rust
• End Cap Type: Double Open Ended (DOE)
• Filter Construction: Pleated
• Filter Type: Sediment Filter
• Inner Diameter: 1.063 in
• Media Type: Polyester
• Micron Rating: 50 µm
• Product Height: 4.5 in
• Product Length: 20
• Product Width: 4.5 in
• Brand: Neo-Pure
• Manufacturer: Neo-Pure
• Filtration stages: 1
• Rec. use: Residential
• Height: 20 in
• Model: PS 45200 50
• Part #: PS-45200-50
• Center tubes: Polypropylene
• pH: 3 to 11
• Nominal Micron Rating: 50
• Recommended Flow Rate (GPM): 25
• Length (in): 20
• O.D. (in): 4.5
