Nds FWSPS3WH Flo-Well Side Panels Set of 3

Product Description

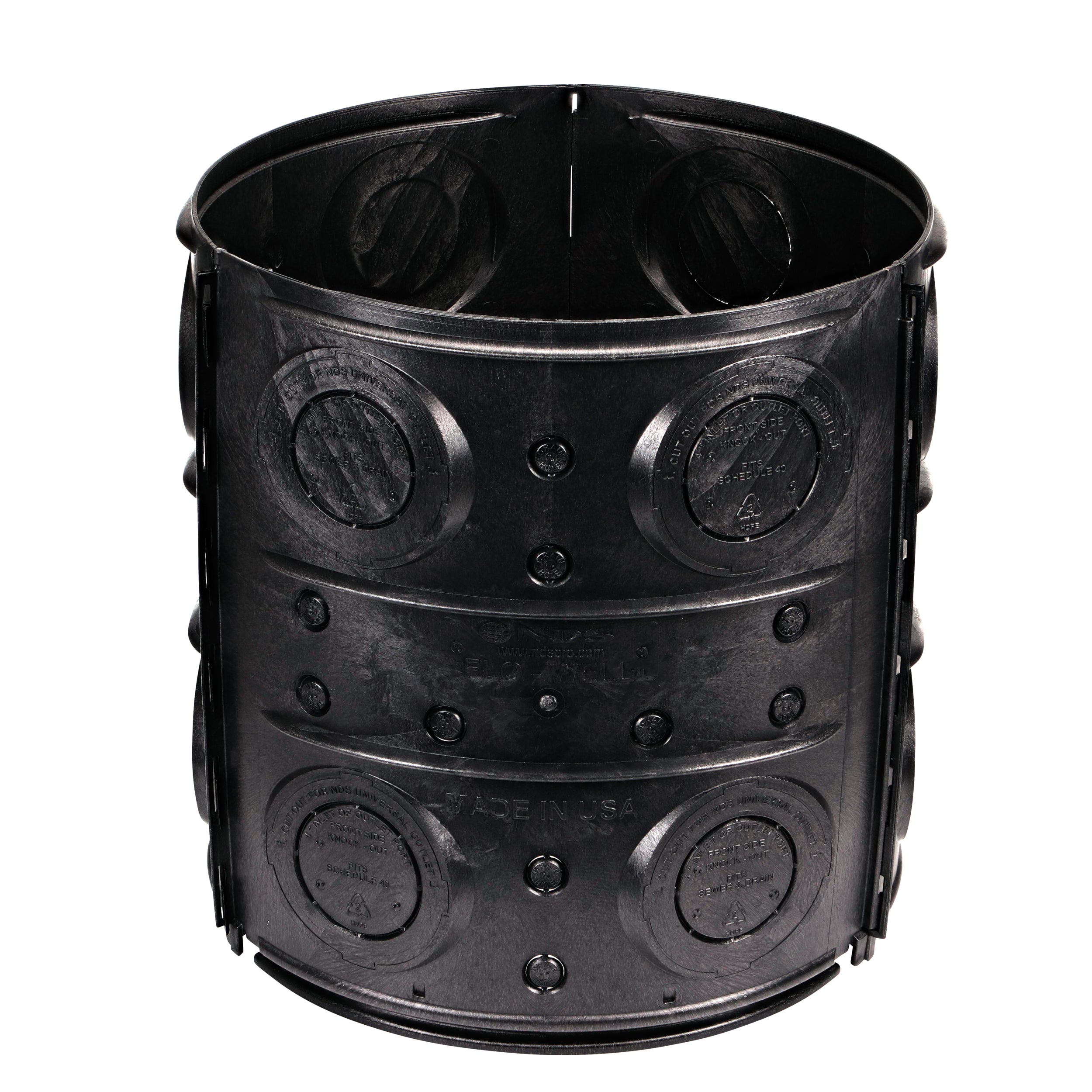

NDS FWSPS3WH Flo-Well side panels are extension panels for the Flo-Well stormwater leaching system. The set includes three panels manufactured from 100% recycled plastic and provides a modular, gravel-free means to collect, retain, and infiltrate stormwater on-site. Assembled panels form a 24 in. diameter x 24 in. tall cylinder (approximately 50-gal capacity) and include 1 in. percolation knockouts and multiple 4 in. drainage connection holes.

• Manufactured from 100% recycled plastic; includes three side panels for system extension
• Assembled dimensions create a 24 in. diameter x 24 in. tall cylinder with about 50-gal capacity
• Includes 1 in. percolation knockouts, thirty 1 in. knockout weep holes, and multiple 4 in. drainage connection holes; stacks onto existing Flo-Well tanks

Product Highlights

Modular, gravel-free side panel extensions to increase Flo-Well stormwater infiltration capacity

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: FWSPS3WH

Technical Specifications

• Brand: NDS
• MPN: FWSPS3WH
• Product Type: Flo-Well side panels / extension only
• Material: 100% recycled plastic

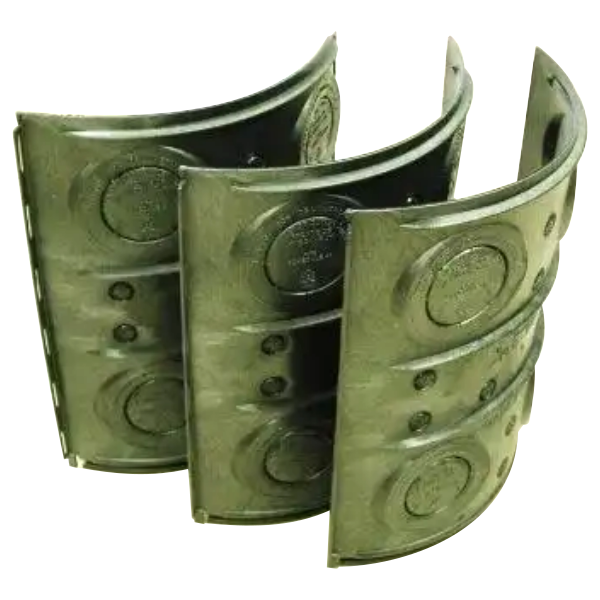

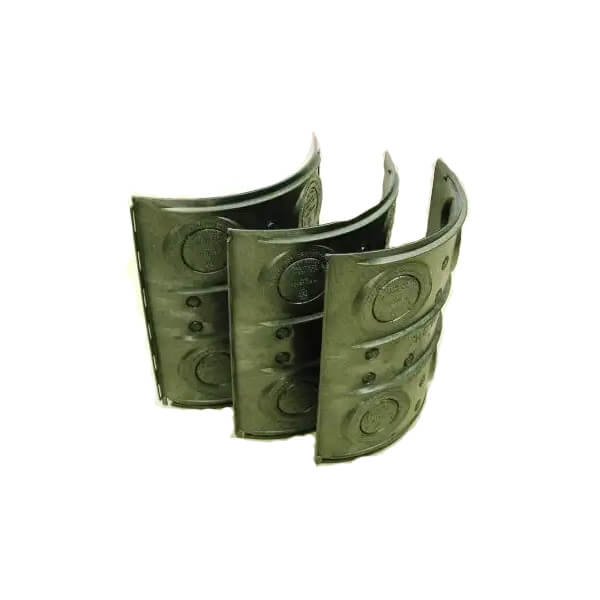

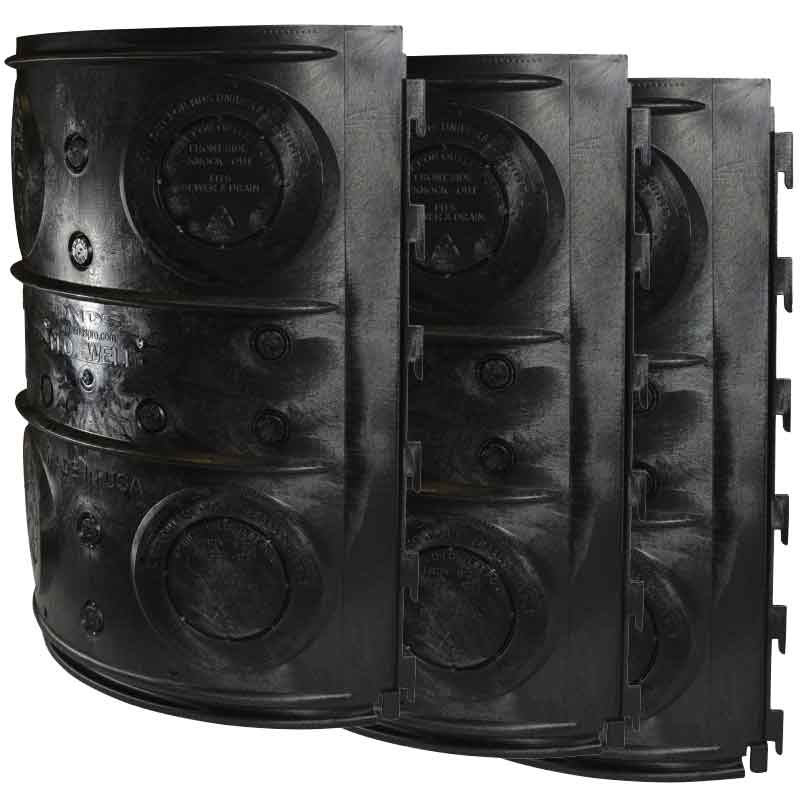

• Includes: 3 side panels
• Assembled Dimensions: 24 in. diameter x 24 in. tall (cylinder)
• Storage Capacity: Approximately 50 gallons (one assembled set)
• Percolation Hole Size: 1 in. diameter knockout percolation holes
• Weep Holes: Thirty 1 in. knockout weep holes
• Drainage Connection Holes: Multiple 4 in. diameter drainage connection holes for inlets and outlets
• Stacking: Stacks onto existing Flo-Well tanks; can be stacked up to 4 high where site conditions allow
• Panel Dimensions: 24 in. length x 25-1/8 in. width x 3/4 in. height (per panel)
• Design: Ribbed design for structural strength; recessed 3/4 in. lip for firm stacking
• Weight: 4.35 lb (reported)
• UPC: 052063030777
• Compatibility: Compatible with NDS Flo-Well Kit FWAS24WH
• Alternate Use: May be used as a compost bin
