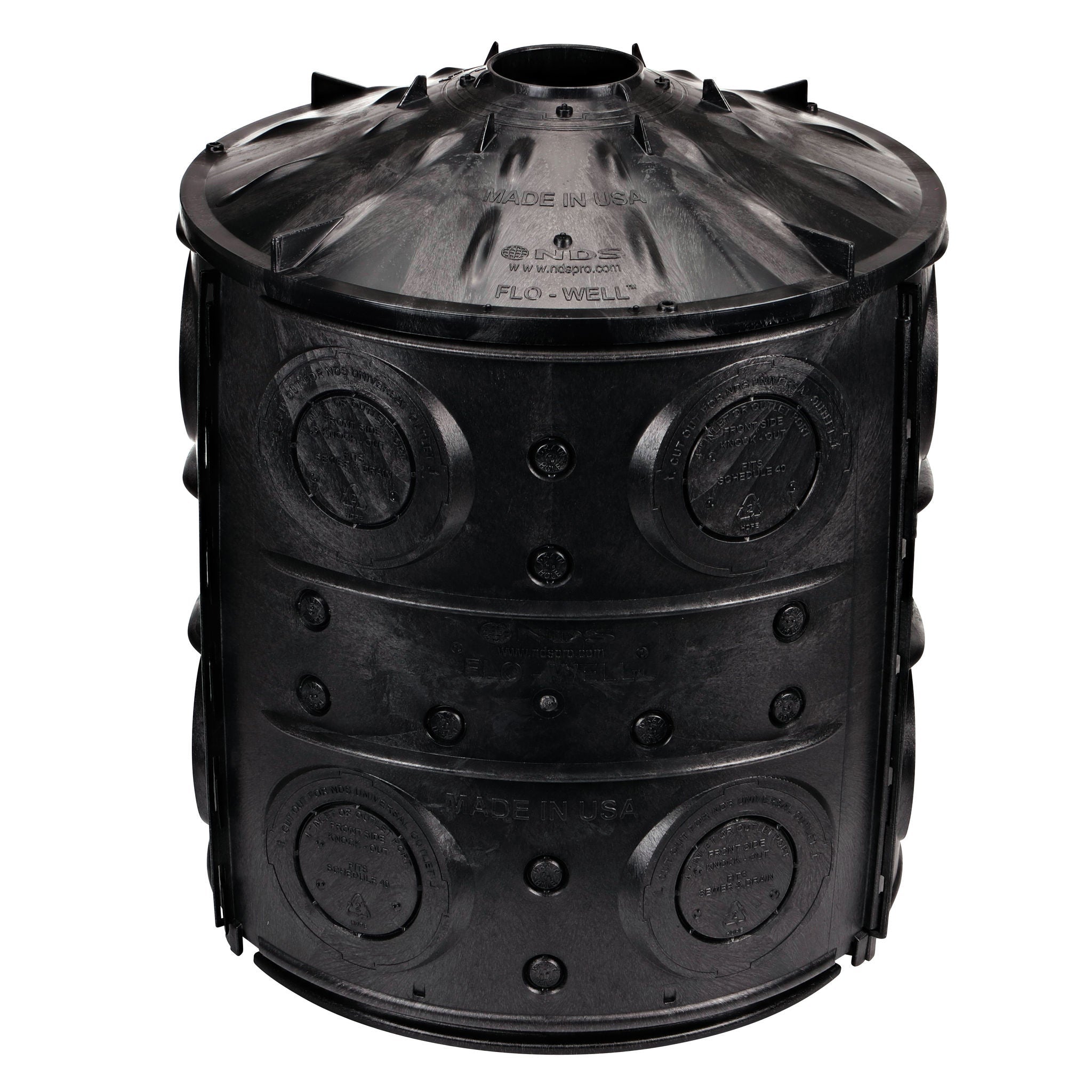

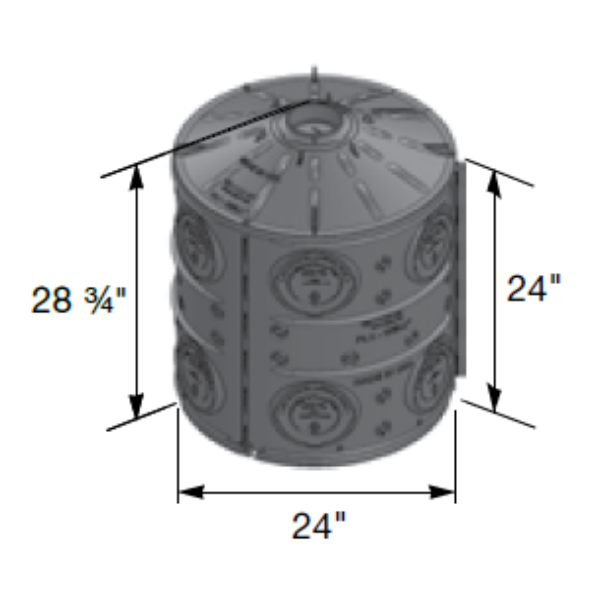

Nds FWAS24WH Flo-Well Storm Water Leaching System 24 x 28.75 49 Gallon

Product Description

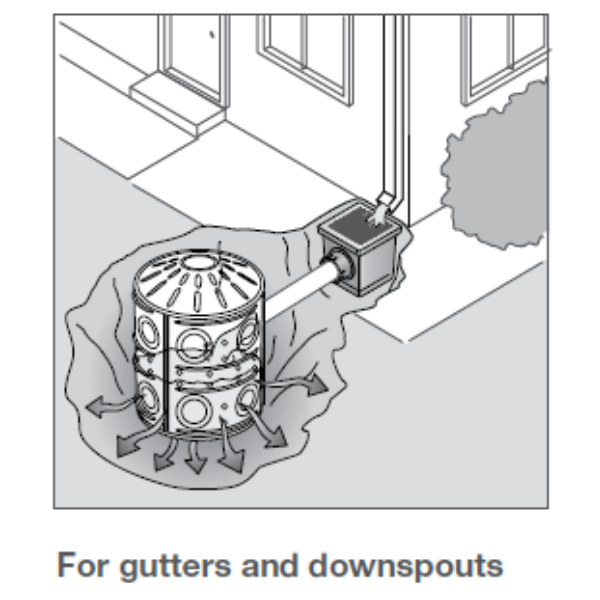

The NDS FWAS24WH is a 24 x 28.75 Flo-Well Storm Water Leaching System with a 49-gallon capacity. This round pit is constructed from structural foam polyolefin and includes three side panels and a top component. It functions as a manufactured dry well, providing a gravel-free solution for managing storm water runoff. The system collects, retains, and discharges storm water on-site, aiding in groundwater replenishment. It is designed for easy installation and can be integrated into larger storm water management systems.

• Storm water leaching system with 49-gallon capacity.
• Constructed from durable structural foam polyolefin.
• Modular design allows stacking or connecting for increased volume.

Product Highlights

Gravel-free storm water leaching system made from recycled materials, designed for on-site runoff management and groundwater replenishment.

Product Information

Standard Information

• Brand: NDS
• Manufacturer Part Number: FWAS24WH
• Country of Origin: America

Technical Specifications

• Storage Capacity: 49 Gallon
• Material: Structural Foam Polyolefin
• Type: Round Pit with 3 Side Panels and Top Component
• System Type: Storm Water Leaching System
• Accessories: FWFF67, FWSD69, 900BLKIT
• Manufacturer: NDS
• System: Flo-Well
• Minimum Burial Depth: 8 inches
• Maximum Burial Depth: 8 feet
• Load Rating: 175 psi (light vehicular traffic)
• Components: 3 Side Panels & 1 Cover
• Product Type: Flo-Well Kit
