Nds Fc 710 Drip Compression Shutoff Valve 0.710 in

Product Description

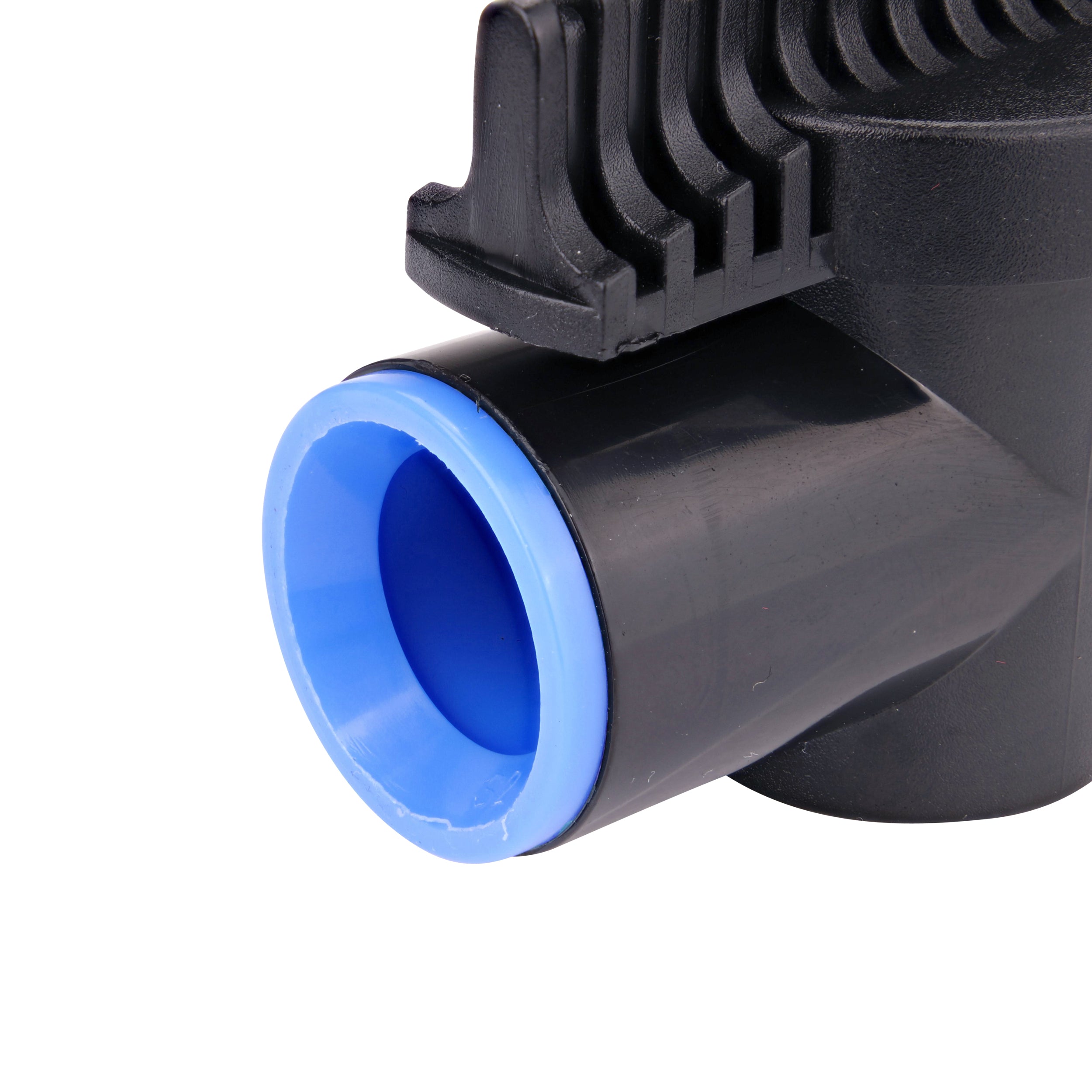

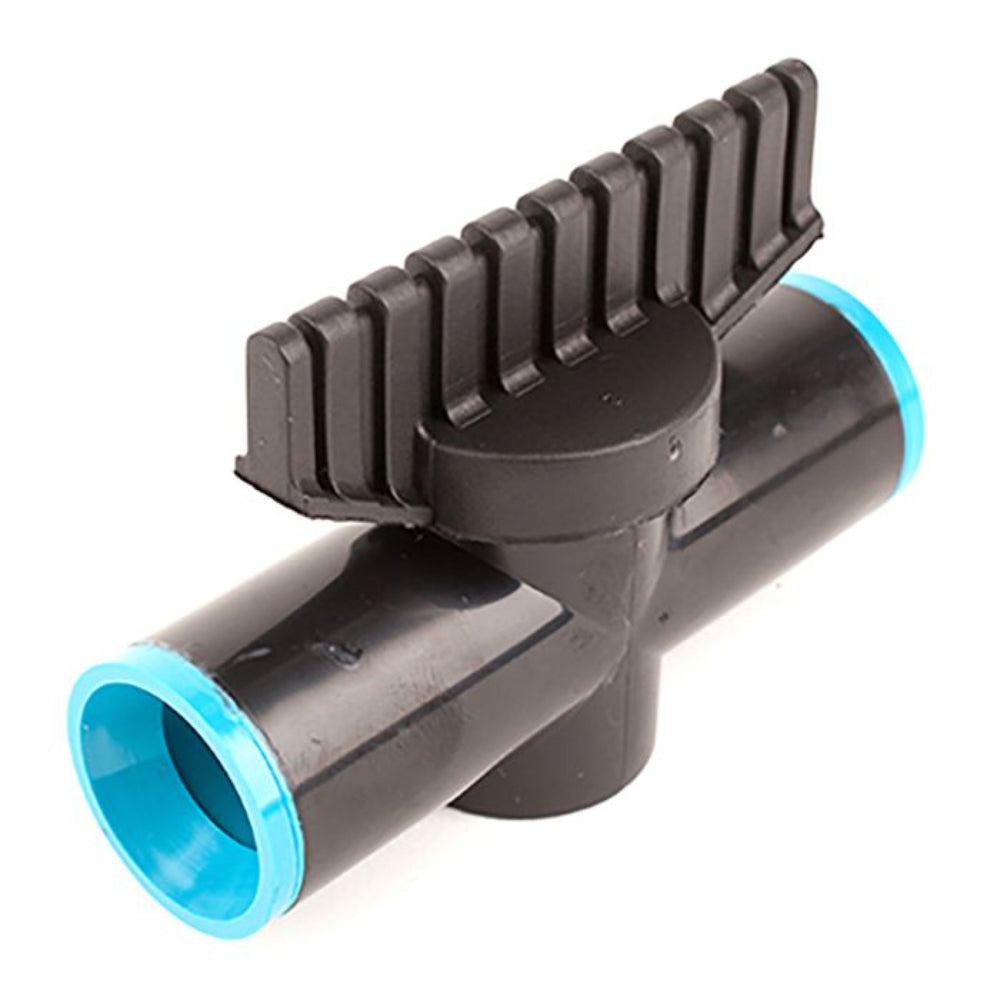

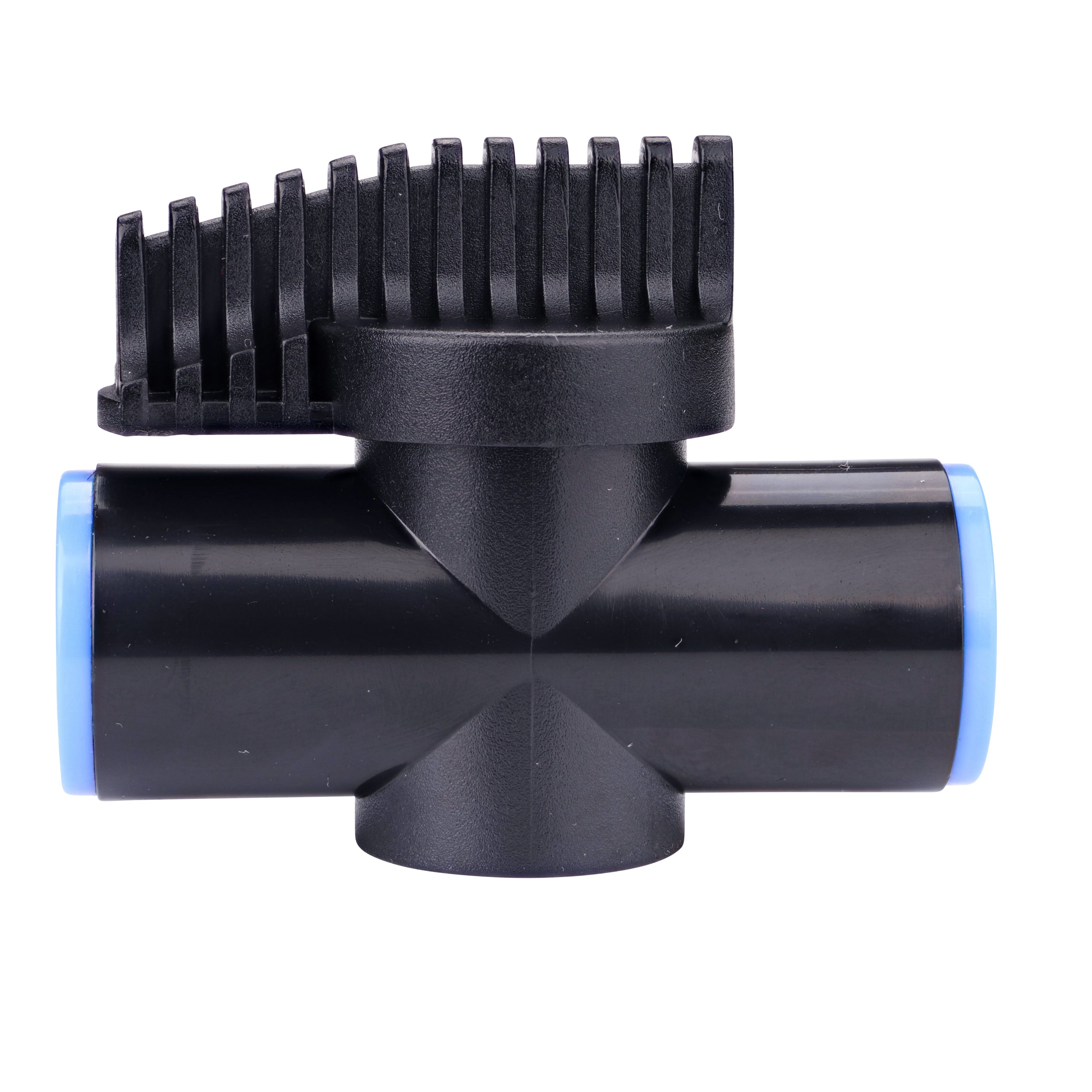

The NDS FC 710 is a drip compression shutoff valve designed for use in low-volume irrigation and drip watering systems. It provides a simple, reliable means of stopping flow at a single emitter or drip line connection without disturbing the rest of the system. The valve is sized for 0.710-inch outside-diameter tubing, which corresponds to standard 5/8-inch drip supply line. At 0.05 pounds, it is a lightweight fitting suited for frequent handling in the field. Irrigation technicians and landscape contractors install this valve as part of drip zone assemblies, emitter manifolds, and subsurface irrigation layouts.

This shutoff valve is used in residential and light commercial drip irrigation systems where individual emitter or lateral line control is needed. It connects directly onto 0.710-inch drip tubing using a compression-style fitting, requiring no solvent cement or special tools. Typical applications include garden drip zones, raised-bed irrigation, and tree or shrub watering circuits where the ability to isolate a single run without shutting down the entire zone is important.

Key Features

• Compression fitting connection sized for 0.710-inch outside-diameter drip tubing
• Shutoff function allows isolation of individual drip lines or emitter runs
• Lightweight construction at 0.05 pounds for easy field handling
• Tool-free compression connection simplifies installation and removal
• Compatible with standard drip irrigation system configurations

Compatibility

Designed as an OEM-style compression shutoff fitting for standard 0.710-inch outside-diameter drip irrigation tubing used in residential and light commercial drip zone assemblies.

Installation Notes

Installation is performed by irrigation technicians or qualified landscape contractors. Shut off the water supply to the drip zone before installing or removing this valve. The compression fitting should be seated fully onto the tubing before tightening to ensure a leak-free connection. Verify local plumbing and irrigation codes for any applicable requirements regarding shutoff valve placement within an irrigation system.

Technical Specifications

• Tubing Outside Diameter: 0.710 inches
• Weight: 0.05 pounds
• Connection Type: Compression
• UPC: 652692125204

Standard Information

• Brand: NDS
• Manufacturer Part Number: FC 710
